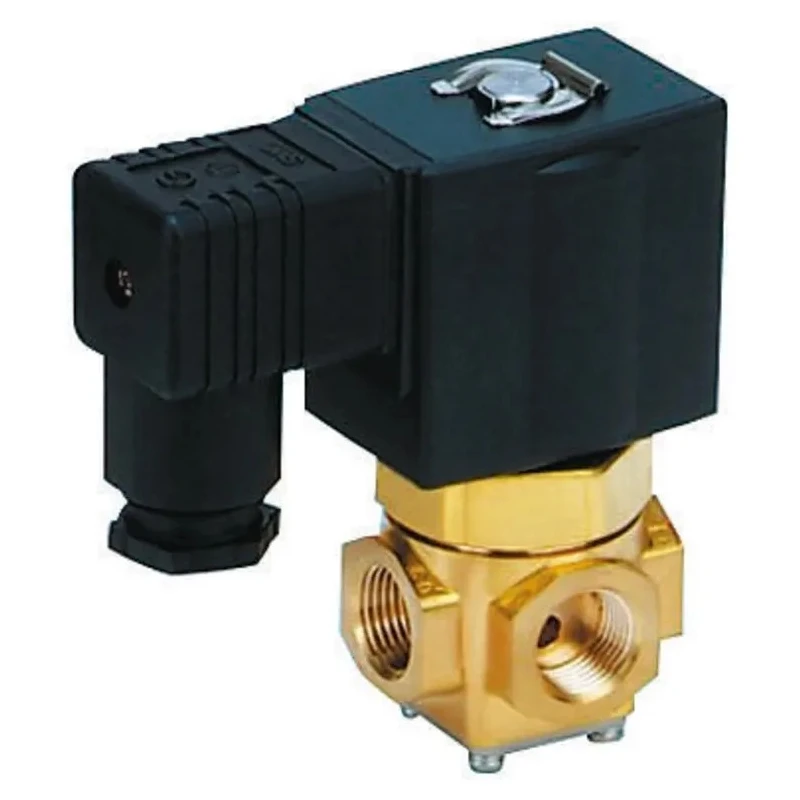

SMC Solenoid Valve, 3 Port, Common Position, 230V AC, 1/8 in G, Brass Body, VX3114-01F-JDR1
Specifications
| Country of Origin | India |
|---|---|
| Brand | SMC |
| Body Material | Brass |
| Maximum Operating Pressure | 1.6 Mpa |
| Model | VX3114-01F-JDR1 |
| Electrical Connection | DIN |
| Series | VX31 |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Orifice Diameter | 1.5mm |
| Supply Voltage | 230V ac |
| Inlet Port Size | 1/8 in G |
| Default Valve Position | Common |
| SMC Solenoid Valve VX3114A-01F-JDR1, 3 Port, Common, 230V ac 1/8 in GBrand | SMC |
Key Features
- Direct acting 3 port solenoid valve for versatile fluid control.
- Operates on 230V AC power supply for reliable switching.
- Common position configuration enhances application flexibility.
- Compact design with durable brass body material.
- Supports air, water, steam, and oil applications.
- Orifice diameter of 1.5 mm for precise flow control.
- Maximum operating pressure up to 1.6 MPa.
- Wide operating temperature range from -20°C to 60°C.
Product Description
The SMC VX3114-01F-JDR1 is a direct acting, three port solenoid valve engineered for industrial fluid control applications. This valve is designed to efficiently switch and regulate flow in systems requiring common position operation, and supports air, water, steam, and oil media. Its electric actuation via a 230V AC supply guarantees stable performance across process, HVAC, and automation installations.
This solenoid valve features a robust construction with a brass body, maximizing durability under frequent usage and challenging environments. The component's compact and lightweight profile makes for easy integration and replacement within existing piping setups. With a 1/8 in G inlet port, the VX3114-01F-JDR1 offers compatibility with standard industrial fittings.
The orifice diameter of 1.5 mm enables precise control over medium flow rates. The valve operates effectively at pressures up to 1.6 MPa, making it suitable for demanding scenarios in water treatment plants, manufacturing lines, laboratory piping, and pneumatic control systems.
Designed for operational flexibility, this product performs reliably within a wide temperature spectrum from -20°C to 60°C, supporting both high and low temperature process requirements. The common position default and DIN electrical connections further facilitate easy installation and maintenance.
Its innovative design allows for quick valve replacement without disturbing existing connections, reducing downtime in industrial and laboratory setups. The VX3114-01F-JDR1 accepts B and H class coils and can be paired with NBR, FKM, or EPDM seals as per environmental demands.
Industries benefiting from this valve include fluid power distribution, manufacturing automation, laboratory equipment, HVAC systems, and water treatment processes. Its long lifespan, IP65 coil enclosure, and compatibility with various media types ensure operational reliability and safety.
For more solenoid valve options, browse the Solenoid Valves category or explore the SMC brand’s comprehensive offerings at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of the SMC VX3114-01F-JDR1 solenoid valve is 1.6 MPa.
The orifice diameter of this model is 1.5 mm, allowing for precise flow control.
This solenoid valve operates on a supply voltage of 230V AC.
It operates effectively within a temperature range of -20°C to 60°C.
This valve supports air, water, steam, and oil applications.
The inlet port size of the VX3114-01F-JDR1 is 1/8 in G.
The default valve position for this solenoid valve is common.
It features a DIN electrical connection for easy integration.
The body of this model is constructed from brass, enhancing its durability.
Industries such as fluid power distribution, manufacturing automation, laboratory equipment, HVAC systems, and water treatment processes can benefit from this valve.
The weight of this solenoid valve is not specified in the provided information.
Yes, its innovative design allows for quick valve replacement without disturbing existing connections, reducing downtime.
