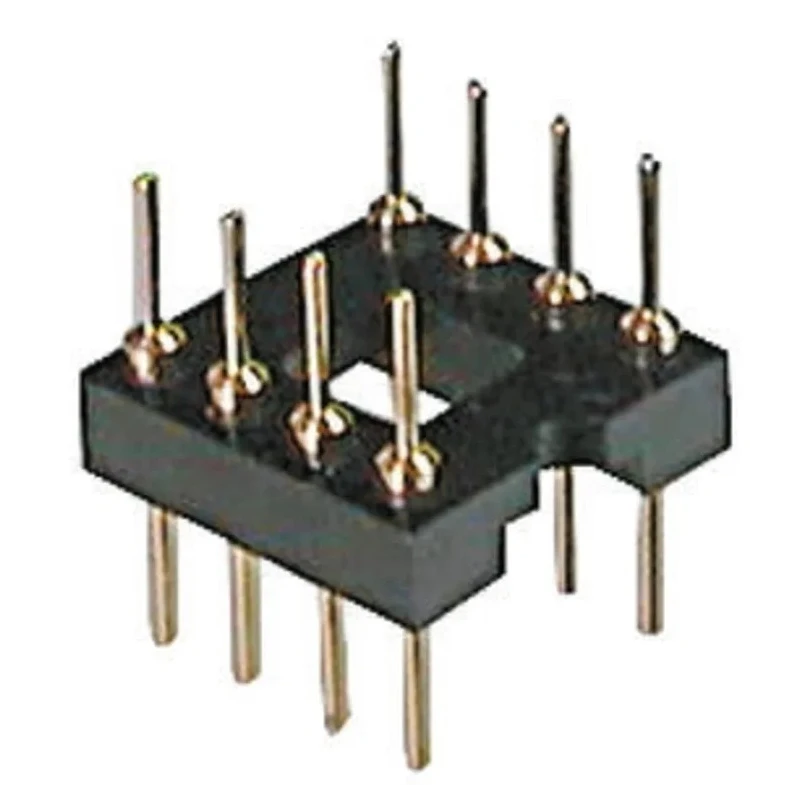

ASSMANN WSW IC Socket Adapter Straight Through Hole Mount 2.54 mm Pitch DIP to DIP AR 20-ST/T

Free Delivery in India | Lowest Global Shipping Charges

ASSMANN WSW IC Socket Adapter Straight Through Hole Mount 2.54 mm Pitch DIP to DIP AR 20-ST/T

Name: ASSMANN WSW IC Socket Adapter Straight Through Hole Mount 2.54 mm Pitch DIP to DIP AR 20-ST/T
Brand: ASSMANN WSW
SKU: 208527
Price: 2.05 USD
Availability: InStock



Category IC Socket Adapter Brand ASSMANN WSW Condition New

Specifications

Country of Origin	China
Voltage	100V ac
Brand	ASSMANN WSW
Orientation	Straight
Current	3A
Model	AR 20-ST/T
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Pitch	2.54mm
Contact Plating	Gold over Nickel
Connection Gender A	Male
Number of Contacts A	20
Connection A	DIP

Key Features

Features a pitch of 2.54 mm for standard DIP connections.
Constructed with brass contacts plated with gold over nickel for reliable conductivity.
Supports a current rating of 3A and a voltage rating of 100V AC.
Designed with a straight orientation and through-hole mounting type for PCB integration.
Housing made of durable polybutylene terephthalate material.
Compatible with 20 contacts on both A and B connection sides with male gender.
Manufactured to high-quality standards with no specific certifications noted.
Ideal for use in electronic component applications for power and connectors.

Product Description

ASSMANN WSW AR 20-ST/T is a high-quality IC Socket Adapter designed for straight through-hole mounting with a 2.54 mm pitch, suitable for DIP to DIP connections. It provides a reliable, secure connection for electronic components with excellent electrical performance.

Constructed using brass contacts with gold over nickel plating, it ensures low contact resistance and longevity under regular operational conditions. The adapter supports a maximum current of 3A and can handle 100V AC, making it suitable for various low- to medium-power electronic circuits.

The housing is made of polybutylene terephthalate, providing mechanical strength and stability, which is crucial for maintaining connection integrity in demanding industrial, manufacturing, or laboratory environments.

With 20 male contacts on both connection sides, this adapter is compatible with a range of dual in-line package (DIP) components. The straight orientation and through-hole mount style enable easy integration into printed circuit boards (PCBs), enhancing design flexibility.

This adapter has no specific certification approvals, but its construction standard and materials make it well-suited for electronic equipment assembly, power distribution components, and connector applications within electronics manufacturing, testing, and repair.

Features a pitch of 2.54 mm for standard DIP connections. Constructed with brass contacts plated with gold over nickel for reliable conductivity. Supports a current rating of 3A and a voltage rating of 100V AC. Designed with a straight orientation and through-hole mounting type for PCB integration.

Housing made of durable polybutylene terephthalate material. Compatible with 20 contacts on both A and B connection sides with male gender. Ideal for use in electronic component applications for power and connectors. browse our extensive Electronics & Electricals category for other high-performance IC Socket Adapters from renowned brands like ASSMANN WSW at EnvMart.
