ASSMANN WSW 2.54 mm Pitch Vertical 24 Way, Through Hole Turned Pin Open Frame DIL Socket 3A AR 24 HZL/7-TT

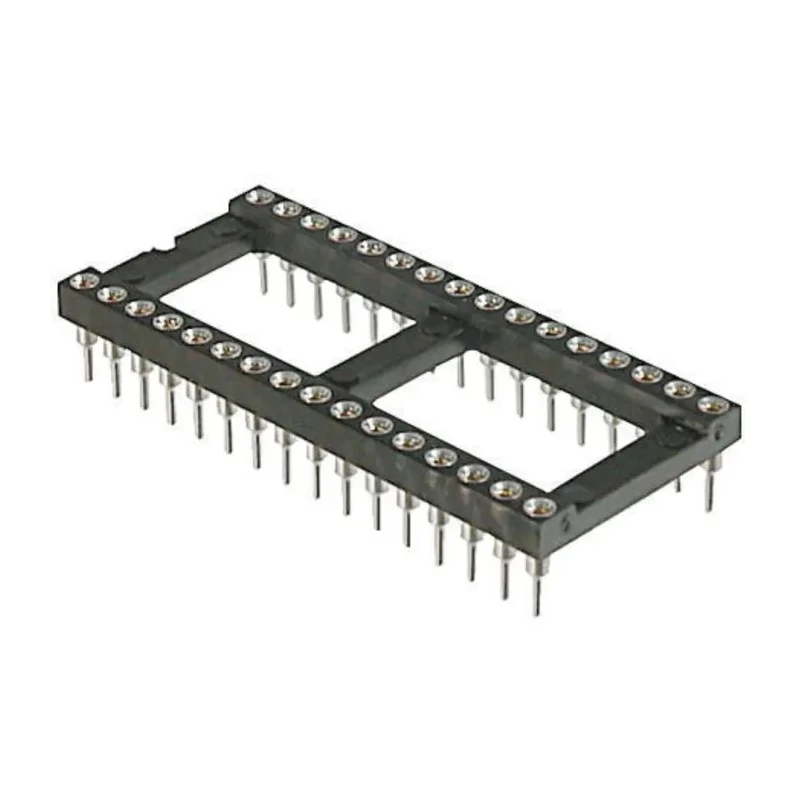

ASSMANN WSW AR 24 HZL/7-TT is a 24 Way Vertical Through Hole Turned Pin Open Frame DIL Socket featuring a 2.54 mm pitch and a current rating of 3A at 100V AC. It is designed for use in electronic components and PCB applications requiring reliable and secure IC socket connections.

The socket is mounted via through-hole soldering and provides a vertical orientation for compact and efficient PCB layouts. The open frame construction facilitates easy access and improves air circulation around the socket for thermal management. The housing material is black Polybutylene Terephthalate (PBT) which is UL94V-0 rated for flame retardance, ensuring compliance with safety standards.

Contacts are crafted from phosphor bronze and brass, combining strength and excellent conductivity. These contacts are plated with tin and gold to enhance corrosion resistance and improve signal quality over time. The row width of the socket is 7.62 mm, with precise dimensions including a length of 30.48 mm, width of 10.16 mm, and depth of 3 mm, making it suitable for dense PCB configurations.

It operates safely within a temperature range of -40°C to 105°C, suitable for various industrial, laboratory, construction, and manufacturing environments where temperature variations may occur.

This product is manufactured in China, ensuring adherence to quality and manufacturing standards required in electronic component production. The model AR 24 HZL/7-TT is identifiable by its exact performance and physical specifications, guaranteeing compatibility with technical designs requiring such DIL sockets.

Features 24 contacts for reliable signal connections. Constructed with a black UL94V-0 PBT housing for safety and durability. Contacts are made of phosphor bronze and brass with tin and gold plating. Designed for through hole solder mounting with vertical orientation.

Operates safely between -40°C and 105°C temperature range. Open frame design supports ease of access and cooling. Compact dimensions: 30.48 mm length, 10.16 mm width, and 3 mm depth. Suitable for industrial and electronic component applications.

Manufactured in China under strict quality control. Ideal for printed circuit board (PCB) mounting and prototyping.

This DIL Socket is widely used in electronics manufacturing, prototyping, research labs, water treatment controls, and various industrial assemblies requiring stable and reliable IC connections. For more components and compatible accessories, browse the Electronics Components category on EnvMart.
