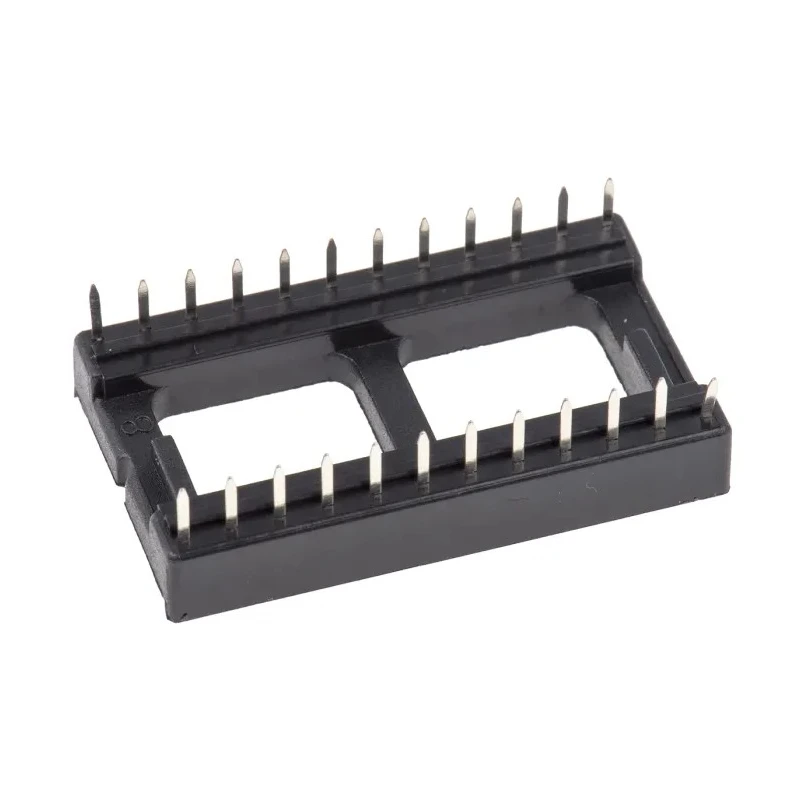

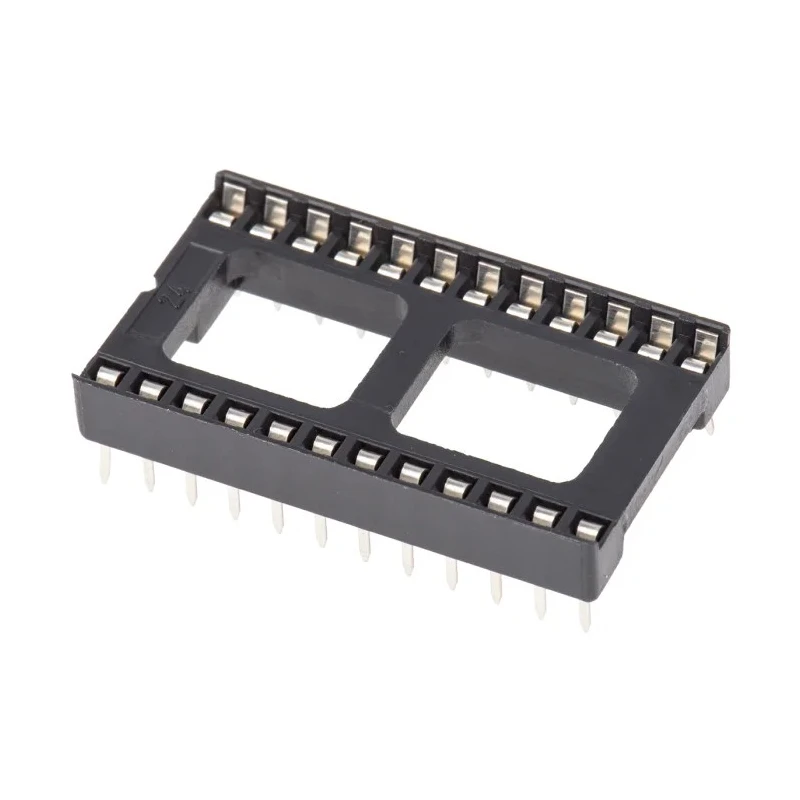

ASSMANN WSW 2.54 mm Pitch Vertical 24 Way Through Hole Stamped Pin Open Frame DIL Socket 1A A 24-LC-TT

ASSMANN WSW A 24-LC-TT is a 2.54 mm pitch vertical 24 way through hole stamped pin open frame DIL (Dual Inline) socket rated for 1 ampere current. This socket is engineered for reliable interconnection in electronic PCB assemblies, combining robust mechanical strength with excellent electrical performance.

The stamped phosphor bronze pins plated with tin ensure consistent contact performance with low resistance and high durability. The open frame design facilitates visual inspection and easy soldering during assembly, while the vertical orientation aligns with conventional DIP IC packages.

The housing is crafted from flame-retardant Polybutylene Terephthalate (PBT), providing effective electrical insulation and meeting UL94V-0 safety standards. This combination allows the socket to withstand industrial operating environments with temperature ranges from -55°C up to 85°C and voltage ratings up to 60V AC.

Physical dimensions are 30.48 mm in length, 17.78 mm in width, and 5.1 mm in depth with a row width of 15.24 mm, making it suitable for compact PCB designs. The through hole mounting type offers secure mechanical fixation essential for vibration resistance in machinery or equipment.

This DIL socket is extensively used across industrial electronics, telecommunications, laboratory instrumentation, and other manufacturing applications where reliable socket connection is critical. The design supports rapid insertion and removal of ICs, which aids in testing and maintenance operations.

This socket features 24 stamped pins for robust current handling up to 1 ampere. The 2.54 mm pitch spacing ensures compatibility with standard DIP ICs. Vertical orientation and open frame design aid ease of soldering and inspection.

Constructed with phosphor bronze contacts plated with tin for durability and conductivity. Housing is made from flame-retardant Polybutylene Terephthalate (PBT) for electrical insulation. Supports operating voltages up to 60V AC with a temperature range from -55°C to 85°C.

Through hole mount type provides firm mechanical and electrical connection to PCBs. Compact dimensions of 30.48 mm length, 17.78 mm width, and 5.1 mm depth. Suitable for industrial electronics, laboratory equipment, and manufacturing assembly.
