ASSMANN WSW DIL Socket 2.54 mm Pitch Vertical 24 Way Through Hole Stamped Pin Open Frame 1A A 24-LC/7-T

Free Delivery in India | Lowest Global Shipping Charges

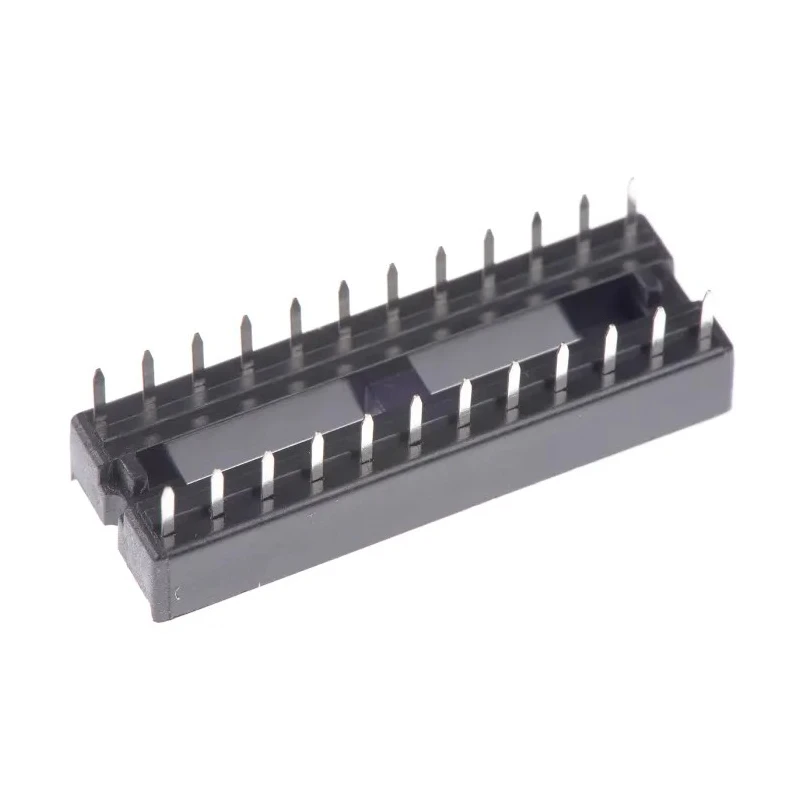

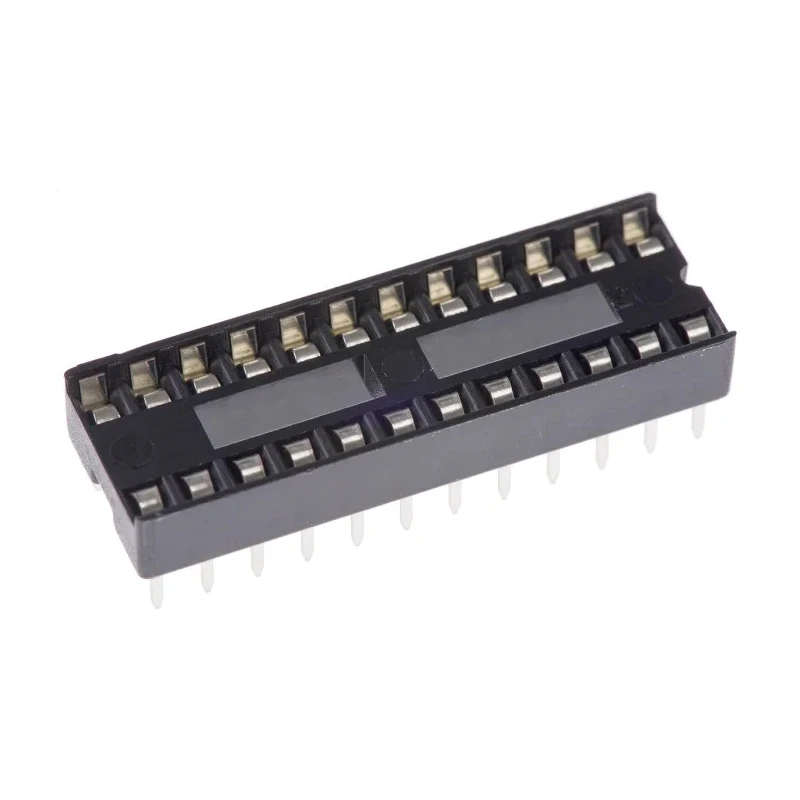

ASSMANN WSW DIL Socket 2.54 mm Pitch Vertical 24 Way Through Hole Stamped Pin Open Frame 1A A 24-LC/7-T

Name: ASSMANN WSW DIL Socket 2.54 mm Pitch Vertical 24 Way Through Hole Stamped Pin Open Frame 1A A 24-LC/7-T
Brand: ASSMANN WSW
SKU: 208463
Price: 0.51 USD
Availability: InStock



Category DIL Socket Brand ASSMANN WSW Condition New

Specifications

Country of Origin	Taiwan
Voltage	60V
Brand	ASSMANN WSW
Orientation	Vertical
Current	1A
Frame Type	Open Frame
Length	30.38mm
Model	A 24-LC/7-T
Depth	17.68mm
Width	5.16mm
Mount Type	Through Hole
Housing Material	Polyethylene Terephthalate
Contact Material	Phosphor Bronze
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	24
Pin Type	Stamped
Row Width	7.62mm

Key Features

The socket features a 2.54 mm pitch between contacts for standard IC compatibility.
It has 24 vertical pins arranged with a 7.62 mm row width and uses stamped phosphor bronze pins.
The open frame design with a black UL94V-0 rated PBT housing ensures safety and durability.
Suitable for through hole PCB mounting and solder termination, providing reliable mechanical hold.
Rated for 60 V and 1 A current with tin-plated contacts to resist corrosion.
Operating temperature range from -55°C to 105°C allows for versatile environmental use.
Compact dimensions include length 30.38 mm, width 5.16 mm, and depth 17.68 mm suitable for constrained PCB layouts.
Manufactured with quality materials combining a polyethylene terephthalate housing and phosphor bronze contacts.

Product Description

ASSMANN WSW A 24-LC/7-T DIL Socket is a precision 24 way vertical IC socket with a 2.54 mm pitch designed for through hole solder mount applications requiring reliable and stable IC connections. Rated at 1 ampere current and operating voltage up to 60 volts, it is an essential component for electronic manufacturing, prototyping, and repair tasks.

The socket features stamped phosphor bronze contacts with tin plating for excellent conductivity and corrosion resistance, coupled with a UL94V-0 black PBT open frame housing for electrical insulation and mechanical strength. Its vertical orientation and 7.62 mm row width facilitate easy insertion and layout on PCBs, particularly for DIP IC packages.

Engineered for durability, this socket operates efficiently across a broad temperature range from -55°C to 105°C, making it suitable for industrial, laboratory, electronics assembly, and design applications. Its compact size (30.38 mm long, 5.16 mm wide, and 17.68 mm deep) supports integration into tight spaces while maintaining stability.

The polyethylene terephthalate housing provides robust mechanical protection and flame retardance, ensuring safety during soldering and operation. This product meets precise industrial standards though has no specific certifications noted.

The socket accommodates 24 contacts with a 2.54 mm pitch ideal for standard IC footprints. Through hole mount type offers excellent mechanical retention on printed circuit boards. Contacts feature a stamped design made from phosphor bronze with tin plating.

The open frame structure allows easy inspection and maintenance of contacts. Solder termination ensures permanent and durable electrical connection to PCBs. Supports operational temperatures from -55°C low to 105°C high for diverse environmental conditions.

Compact dimensions facilitate use in various electronic devices and instruments. Manufactured in Taiwan, Province Of China by ASSMANN WSW, a reputed electronics components brand.

This ASSMANN WSW DIL socket is suitable for electronic component manufacturing, repair workshops, education labs, and projects requiring durable socket interfaces. Discover a wide range of compatible electronic components and connectors at EnvMart to complement this high-quality DIL Socket.
