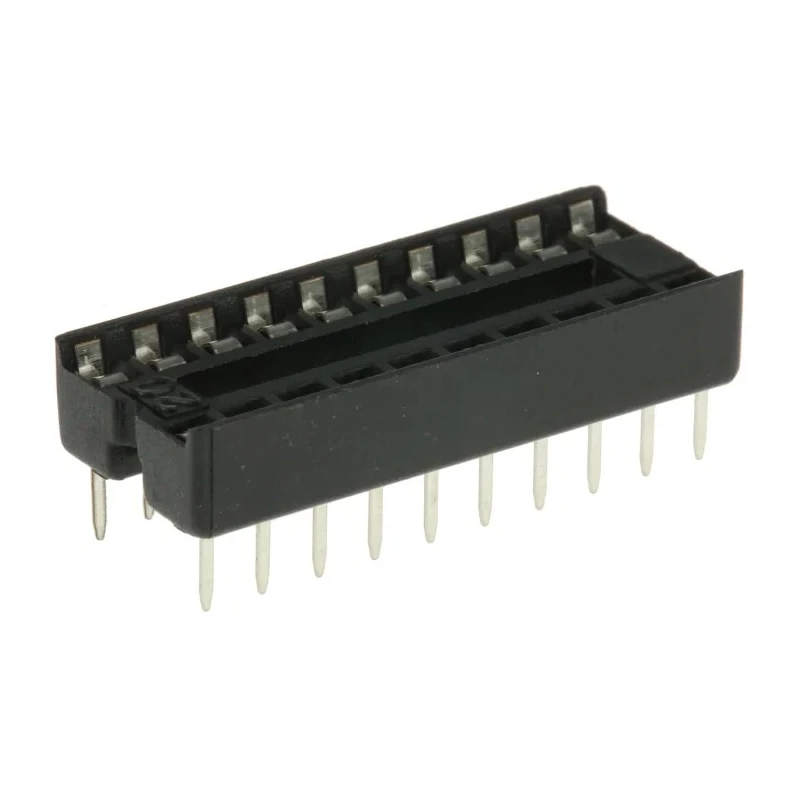

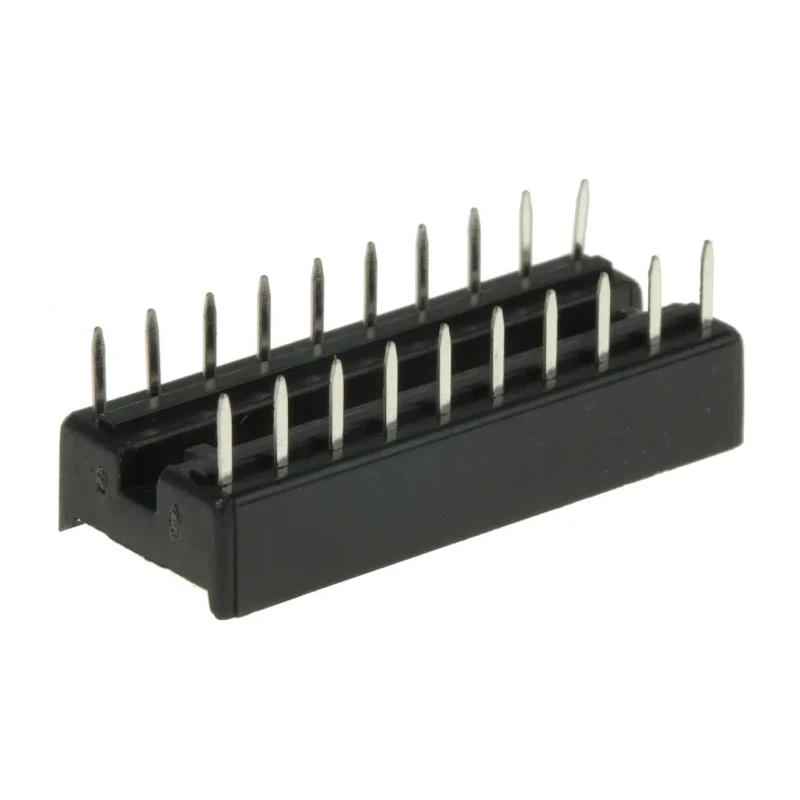

ASSMANN WSW 2.54 mm Pitch Vertical 20 Way Through Hole Stamped Pin Open Frame DIL Socket 1A A 20-LC-TT
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 60V ac |
| Brand | ASSMANN WSW |
| Orientation | Vertical |
| Current | 1A |
| Frame Type | Open Frame |
| Length | 25.4mm |
| Model | A 20-LC-TT |
| Depth | 5.1mm |
| Width | 10.16mm |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 20 |
| Pin Type | Stamped |
| Row Width | 7.62mm |
Key Features
- Designed for vertical mount with through hole installation.
- Features 20 contacts with a 2.54 mm pitch and 7.62 mm row width.
- Constructed with stamped phosphor bronze contacts plated with tin for reliability.
- Open frame design with a black UL94V-0 rated Polybutylene Terephthalate housing.
- Operates safely up to 60V AC voltage and carries current up to 1 ampere.
- Temperature range supports from -55°C minimum to 85°C maximum operating temperature.
- Contact termination is via solder for secure mounting on PCBs.
- Physical dimensions include length 25.4 mm, width 10.16 mm, and depth 5.1 mm.
Product Description
ASSMANN WSW A 20-LC-TT is a 20 Way Vertical Through Hole DIL Socket designed with a 2.54 mm pitch for accurate and reliable IC connections on printed circuit boards. This open frame socket features stamped pin contacts made from phosphor bronze with tin plating, ensuring optimal electrical conductivity and corrosion resistance.
The socket's housing is manufactured from black Polybutylene Terephthalate (PBT) material with a UL94V-0 flammability rating, providing excellent durability and safety. It is intended for use in a variety of electronic applications requiring surface mount reliability and through hole mounting stability.
Rated for 1 ampere current and 60 volts AC operating voltage, the socket supports operating temperatures from -55°C to 85°C, making it suitable for demanding industrial, manufacturing, laboratory, and electronic assembly contexts.
Physical dimensions include a length of 25.4 mm, a width of 10.16 mm, and a depth of 5.1 mm, facilitating compatibility with standard DIP configurations. The row width is 7.62 mm and the pitch between pins is 2.54 mm, adhering to common design standards for compatibility with integrated circuits and other components.
Vertical mounting with through hole solder termination. 20 contacts with stamped pin construction. Contact plating: tin for corrosion resistance and conductivity. Open frame design housing with UL94V-0 rated PBT material.
Electrical ratings of 1 ampere and 60 volts AC. Temperature range: -55°C to 85°C to ensure robust performance. Compact dimensions ideal for circuit board integration. Manufactured in Taiwan, Province Of China, with quality assurance.
This ASSMANN WSW DIL Socket is widely used in the electronics industry for PCB mounting, prototyping, and repair operations, supporting reliable and repeatable IC installation and removal. It suits applications in industrial controls, instrumentation, telecommunications, and laboratory devices.
Explore a full range of high-quality IC sockets and electronic components on EnvMart for your professional and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this model is 60V AC.
This DIL socket can carry a current of up to 1 ampere.
The dimensions of the socket are 25.4 mm in length, 10.16 mm in width, and 5.1 mm in depth.
The pitch between the contacts is 2.54 mm.
The contacts are made from phosphor bronze and are plated with tin for corrosion resistance.
This model uses solder termination for secure mounting on PCBs.
The operating temperature range is from -55°C to 85°C.
The row width is 7.62 mm.
The housing is made from black Polybutylene Terephthalate (PBT) with a UL94V-0 flammability rating.
This DIL socket features 20 contacts.
The orientation of this socket is vertical, designed for through hole installation.
This model is manufactured in Taiwan, Province Of China.
