ASSMANN WSW AW Series Straight Through Hole Pin Header, 20 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded AW 110/20-T

Free Delivery in India | Lowest Global Shipping Charges

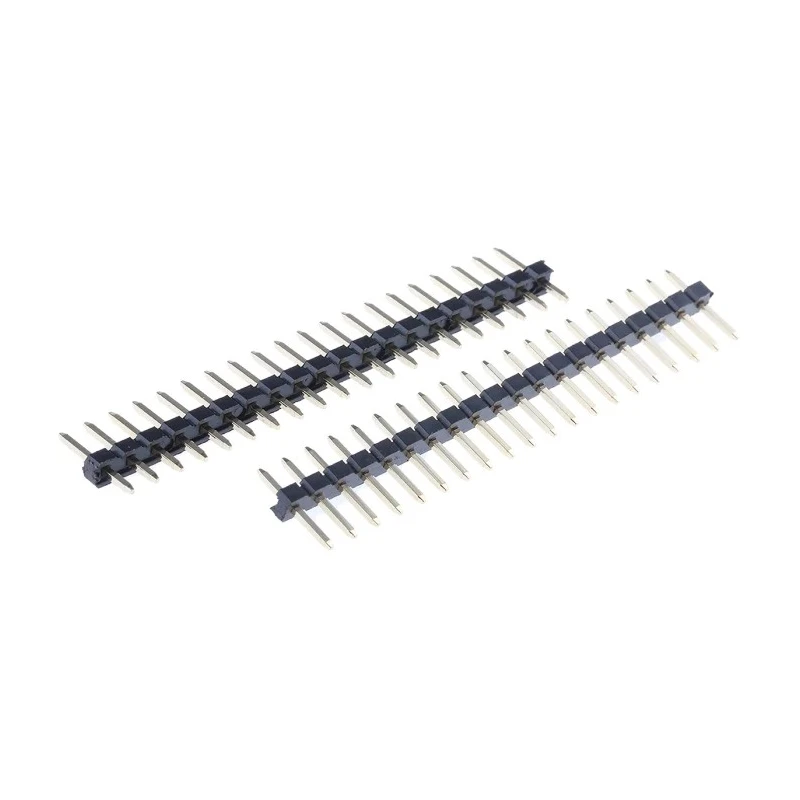

ASSMANN WSW AW Series Straight Through Hole Pin Header, 20 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded AW 110/20-T

Name: ASSMANN WSW AW Series Straight Through Hole Pin Header, 20 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded AW 110/20-T
Brand: ASSMANN WSW
SKU: 208444
Price: 0.98 USD
Availability: InStock



Category PCB Headers Brand ASSMANN WSW Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	ASSMANN WSW
Orientation	Straight
Current	1.5A
Model	AW 110/20-T
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Series	AW
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	20
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board
Tail Pin Length	3mm
Mating Pin Length	4.7mm

Key Features

Features a single row of 20 male contacts for reliable connections.
Mount type is through hole ensuring strong mechanical and electrical contact.
Contacts are made of brass with gold plating for excellent conductivity and corrosion resistance.
Housing material is durable polybutylene terephthalate designed for high temperature operation.
Operates at a current rating of 1.5 A and voltage rating of 250 V.
Unshrouded design allows easy access to contacts without obstruction.
Suitable for operating temperature range from -40°C up to 105°C.
Tail pin length is 3 mm and mating pin length is 4.7 mm for optimal insertion and retention.

Product Description

ASSMANN WSW AW 110/20-T is a straight through hole pin header featuring 20 male contacts arranged in a single row with 2.54 mm pitch. Its board-to-board connector system is designed for reliable electronic connections in PCB assemblies.

The pin header housing is crafted from polybutylene terephthalate, providing excellent durability and heat resistance allowing operation from -40°C to a maximum of 105°C. The brass contacts are plated with gold to optimize conductivity and resist corrosion, essential for sensitive electronics.

Mount type is through hole ensuring a mechanically secure fit on printed circuit boards during soldering termination. The unshrouded layout facilitates easy access and soldering of individual pins without obstruction.

Electrically rated for 1.5 amps current and 250 volts, this header is suitable for a wide range of industrial, commercial, and electronic manufacturing applications including control systems, instrumentation, and communications equipment.

The pin length specifications include 3 mm tail pins for soldering stability and 4.7 mm mating pins for secure engagement with complementary connectors. Designed and manufactured in China, this model combines quality materials and construction for dependable PCB interconnectivity.

Single row, 20 contact pin header optimized for PCB mounting. Gold plated brass contacts ensure excellent signal integrity and corrosion resistance. Polybutylene terephthalate housing supports high operating temperatures.

Through hole mount for robust mechanical and electrical connections. Unshrouded design for convenient access and soldering. Rated for 1.5 A current and 250 V voltage operation. Temperature range from -40°C to 105°C suitable for diverse environments.

Tail pin length 3 mm and mating pin length 4.7 mm for optimal connector engagement. Ideal for industrial electronics and PCB applications. Manufactured in China with strict quality standards.

This ASSMANN WSW AW Series PCB pin header is perfect for engineers and designers requiring high-quality, reliable connectors in electronic assemblies. Browse more PCB connectors and components to complete your designs efficiently with EnvMart Industrial Electronics.
