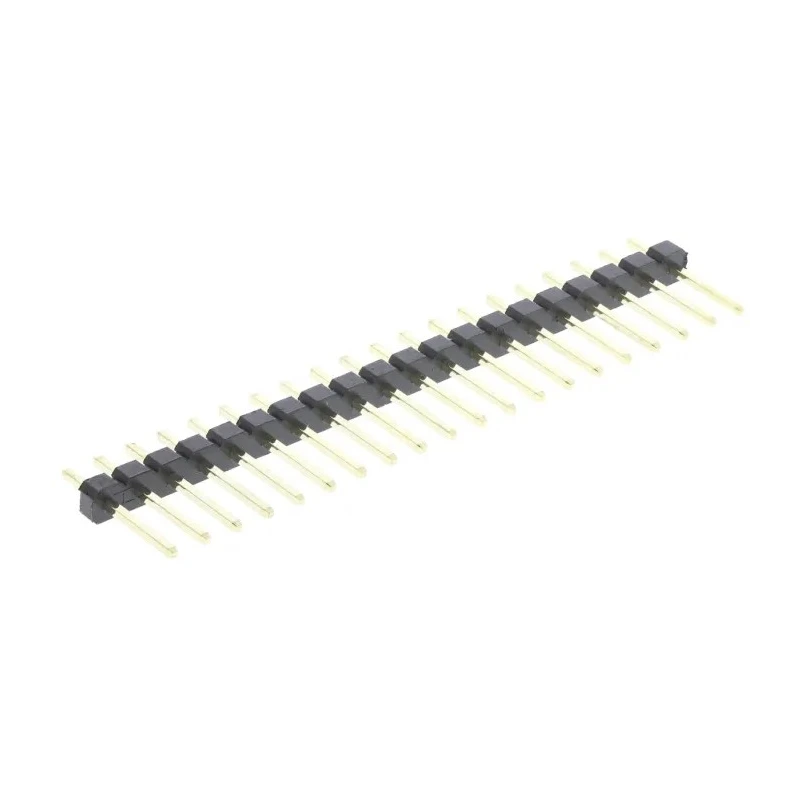

ASSMANN WSW AW Series Straight Through Hole Pin Header 20 Contacts 2.54 mm Pitch 1 Row Unshrouded AW 109/20-T
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | ASSMANN WSW |
| Orientation | Straight |
| Current | 1.5A |
| Model | AW 109/20-T |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AW |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3mm |
| Mating Pin Length | 6.7mm |
Key Features
- The connector supports a current rating of 1.5A suitable for low power electronics.
- Pitch dimension is 2.54 mm enabling standard PCB integration.
- Constructed with polybutylene terephthalate housing for durability and temperature resistance.
- Brass contacts plated with gold ensure reliable electrical conductivity and corrosion resistance.
- Designed as male contacts with a tail pin length of 3 mm and mating pin length of 6.7 mm.
- Operates reliably between -40°C to 105°C for robust environmental performance.
- Mount type is through hole to provide secure physical connection on PCBs.
- Unshrouded style facilitates easy PCB alignment and soldering.
Product Description
ASSMANN WSW AW 109/20-T is a high-quality straight through hole pin header designed for board-to-board electrical interconnections in electronic assemblies. This pin header features 20 contacts arranged in a single row with a pitch of 2.54 mm, a standard dimension aiding seamless PCB integration.
Its housing is made from durable polybutylene terephthalate that withstands operating temperatures from -40°C up to 105°C, ensuring reliable performance in a variety of industrial and commercial environments. The male contacts are crafted from brass and plated with gold to provide optimal conductivity and resistance to corrosion over extended use.
The header employs a through hole mount type, allowing robust mechanical fixation and soldering reliability on printed circuit boards. The tail pin length of 3 mm and mating pin length of 6.7 mm support effective soldering and mating with compatible connectors.
Its unshrouded connector design assists technicians during assembly and inspection processes while maintaining secure electrical connections. Rated for 1.5 amps at 250 volts, this component fits many electronic power and signal applications such as industrial control systems, telecommunications hardware, and consumer electronics.
20 contact straight through hole pin header with 2.54 mm pitch. Polybutylene terephthalate housing resistant to heat and mechanical stress. Brass male contacts with gold plating for reliable conductivity. Temperature range from -40°C to 105°C for versatile application environments.
Through hole mounting ensures strong PCB attachment. Voltage rating of 250 V suitable for multiple circuit designs. Unshrouded connector for easier alignment and maintenance.
Designed to meet the needs of industrial and commercial electronics assembly, the ASSMANN WSW AW series pin headers are standard components in interconnection technology. This model supports designers and manufacturers in creating dependable, durable PCB connections.
Explore more PCB Headers and connectors in the Electronics & Electricals category at EnvMart for comprehensive industrial-grade solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 1.5A, making it suitable for low power electronics applications.
The pitch dimension of this pin header is 2.54 mm, which is a standard size for PCB integration.
It operates reliably at temperatures up to 105°C, suitable for various industrial and commercial environments.
This pin header employs a through hole mount type, providing secure physical connection on printed circuit boards.
The housing is made from polybutylene terephthalate, while the contacts are brass plated with gold for optimal conductivity and corrosion resistance.
This model features 20 contacts arranged in a single row.
The AW 109/20-T has a voltage rating of 250V, suitable for various circuit designs.
The tail pin length is 3 mm, and the mating pin length is 6.7 mm, facilitating effective soldering and mating with compatible connectors.
The contacts in this model are male, designed for board-to-board interconnections.
It operates within a temperature range from -40°C to 105°C, allowing for versatile application environments.
This connector is unshrouded, which facilitates easier alignment and maintenance during assembly and inspection processes.
The AW 109/20-T uses solder termination, ensuring reliable connections on PCBs.
