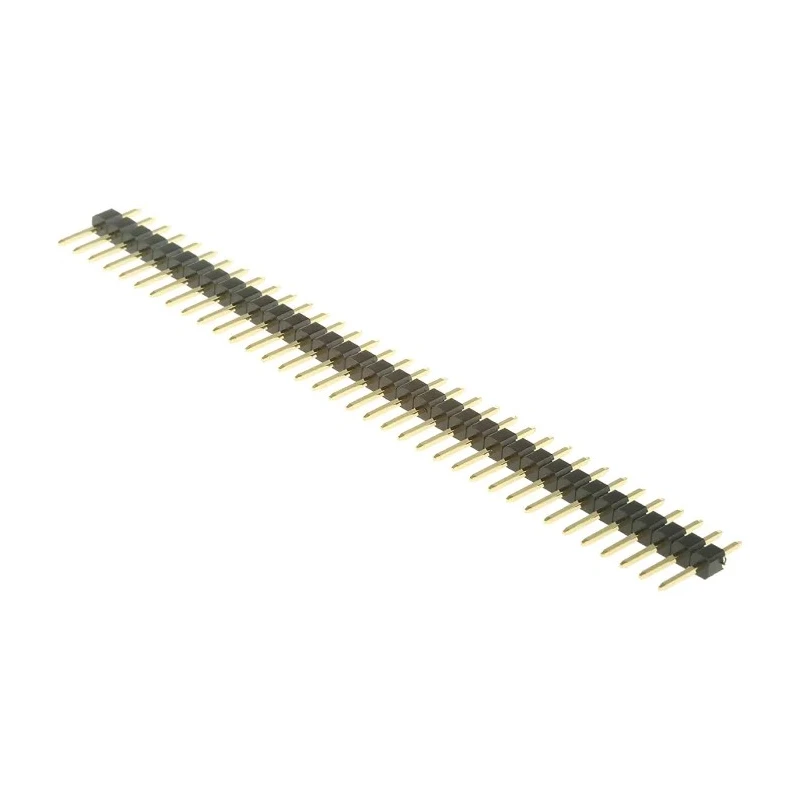

ASSMANN WSW AW140 Series Straight Through Hole Pin Header, 36 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded AW140
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | ASSMANN WSW |
| Orientation | Straight |
| Current | 3A |
| Model | AW140 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AW140 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 36 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3.78mm |
| Mating Pin Length | 6.08mm |
Key Features
- 36 gold-plated brass male contacts ensure excellent conductivity.
- 2.54 mm pitch and row pitch suitable for standard PCB layouts.
- Polybutylene Terephthalate housing offers durability and heat resistance.
- Through-hole mount type provides secure and stable attachment.
- Operates reliably from -40°C to 105°C for harsh environments.
- Supports a voltage rating up to 250V and current of 3A.
- Tail pin length of 3.78 mm and mating pin length of 6.08 mm for optimal soldering and connection.
- Unshrouded design facilitates easy access for PCB connections.
Product Description
ASSMANN WSW AW140 Series Straight Through Hole Pin Header AW140 is a specialized connector designed for robust electronic component board-to-board interfaces. Featuring 36 gold-plated brass male contacts arranged in a single row with 2.54 mm pitch, this unshrouded pin header ensures consistent electrical contact and mechanical reliability.
The housing is made of high-quality Polybutylene Terephthalate, providing excellent mechanical strength and thermal resistance. Suitable for through-hole mounting, it offers secure solder termination for durable PCB assembly. Operating temperature ranges from -40°C to 105°C, which allows performance stability in demanding industrial and electronic environments.
This pin header supports a current rating of 3A and a voltage of 250V, making it suitable for a broad array of applications including industrial controls, communication devices, and electronic instrumentation. The unshrouded design allows easy mating and inspection during manufacturing and maintenance.
The tail pin length of 3.78 mm ensures reliable solder joints while the mating pin length of 6.08 mm guarantees a firm connection with the counterpart connector. Its board-to-board connector system is engineered to improve assembly efficiency and reduce failure rates in manufacturing.
36 gold-plated brass male contacts ensure excellent conductivity. 2.54 mm pitch and row pitch suitable for standard PCB layouts. Polybutylene Terephthalate housing offers durability and heat resistance. Through-hole mount type provides secure and stable attachment.
Operates reliably from -40°C to 105°C for harsh environments. Supports a voltage rating up to 250V and current of 3A. Tail pin length of 3.78 mm and mating pin length of 6.08 mm for optimal soldering and connection. Unshrouded design facilitates easy access for PCB connections.
Ideal for electronic, industrial, and communication equipment assembly. Enables efficient and precise PCB interconnections with board-to-board connector system.
This product is suitable for industrial manufacturing, laboratory prototype builds, electronic control systems, and other professional applications needing reliable PCB connection solutions.
Explore more PCB Headers and related connectors at EnvMart for enhanced electronic design and assembly solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contacts in this pin header have a pitch of 2.54 mm, which is suitable for standard PCB layouts.
This model features 36 gold-plated brass male contacts arranged in a single row.
It supports a voltage rating of up to 250V and a current rating of 3A.
The pin header operates reliably within a temperature range of -40°C to 105°C.
The housing is made of Polybutylene Terephthalate, which provides durability and heat resistance.
It utilizes a through-hole mount type, providing secure and stable attachment to PCBs.
The tail pin length is 3.78 mm, which is designed for optimal soldering and connection.
The mating pin length is 6.08 mm, ensuring a firm connection with the counterpart connector.
This model is unshrouded, facilitating easy access for PCB connections during mating and inspection.
It is suitable for applications including industrial controls, communication devices, and electronic instrumentation.
The termination type for this connector is solder, ensuring a reliable connection.
The ASSMANN WSW AW140 Series pin header is manufactured in India.
