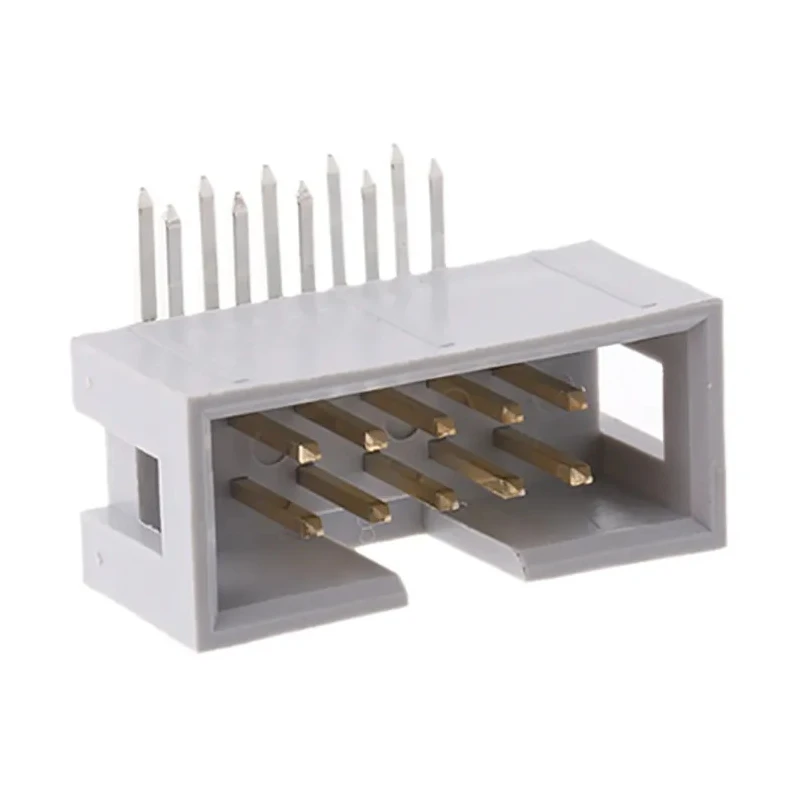

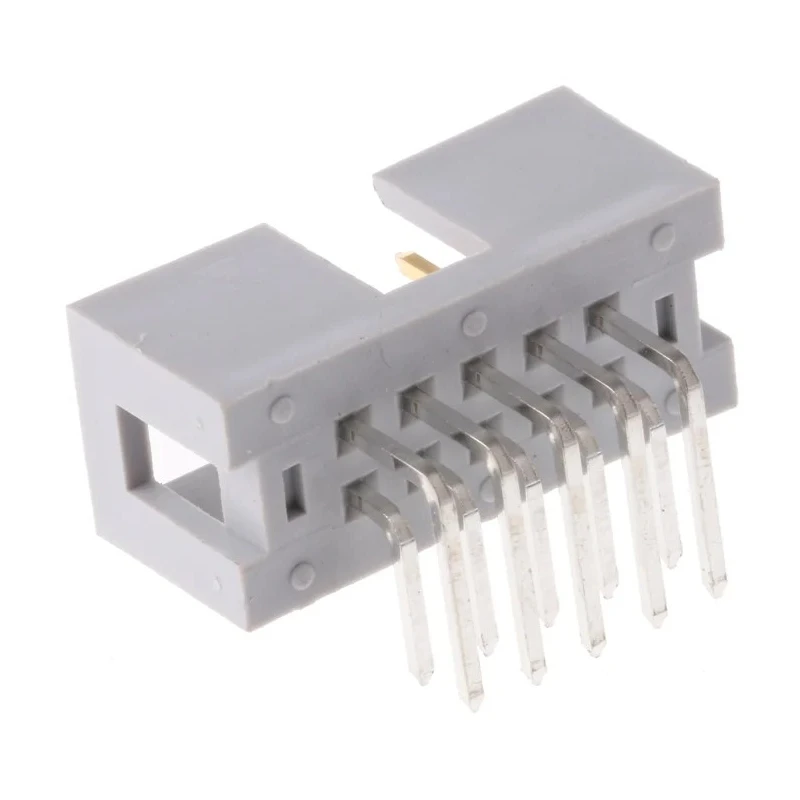

ASSMANN WSW AWHW Series Right Angle Through Hole PCB Header, 10 Contacts, 2.54 mm Pitch, 2 Row, Shrouded AWHW 10A-0202-T
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | ASSMANN WSW |
| Orientation | Right Angle |
| Current | 3A |
| Model | AWHW 10A-0202-T |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AWHW |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold, Nickel |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- The connector features a shrouded design to prevent misalignment.
- Constructed with polybutylene terephthalate housing for durability.
- Two rows of brass male contacts plated with gold and nickel for excellent conductivity.
- Rated for 3A current and 250V voltage to handle typical electronic requirements.
- Suitable for solder termination with right-angle orientation.
- Operates reliably between -40°C and 105°C temperature range.
- Complies with RoHS standards for environmental safety.
- Ideal for industrial, electronic manufacturing, and PCB assembly applications.
Product Description
ASSMANN WSW AWHW 10A-0202-T right angle through hole PCB header is designed for secure and efficient connections in electronic circuits. Featuring a 2.54 mm pitch and 10 male contacts arranged in two rows, this shrouded connector offers protection against mating errors and mechanical damage.
The housing is made from polybutylene terephthalate, providing high durability and resistance to environmental factors. Contacts are brass with gold and nickel plating, ensuring excellent electrical performance and longevity.
Electrical specifications include a current rating of 3A and voltage up to 250V, making it suitable for many power and signal transmission needs. The connector supports solder termination and is oriented at a right angle for compact PCB layouts.
Operating temperature ranges from -40°C to 105°C, suitable for a variety of industrial and commercial environments. The product complies with RoHS environmental standards. The connector features a shrouded design to prevent misalignment.
Constructed with polybutylene terephthalate housing for durability. Two rows of brass male contacts plated with gold and nickel for excellent conductivity. Rated for 3A current and 250V voltage to handle typical electronic requirements.
Suitable for solder termination with right-angle orientation. Operates reliably between -40°C and 105°C temperature range. Complies with RoHS standards for environmental safety. Ideal for industrial, electronic manufacturing, and PCB assembly applications.
This ASSMANN WSW PCB header is a versatile solution for electrical connectivity in industrial automation, electronic device manufacturing, automation control systems, and more. Its robust build and standardized pitch help facilitate seamless integration into PCB designs.
Explore more in the Electronics & Electricals category at EnvMart for related connectors and components from ASSMANN WSW and other leading brands.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 3A and a voltage of up to 250V, making it suitable for typical electronic applications.
The connector features a pitch of 2.54 mm and has 10 male contacts arranged in two rows.
The housing is made from polybutylene terephthalate, and the contacts are brass plated with gold and nickel for improved conductivity.
It operates reliably within a temperature range of -40°C to 105°C, suitable for various industrial environments.
Yes, it complies with RoHS standards for environmental safety.
This unit supports solder termination, which is common for PCB connections.
This connector features a right-angle orientation, allowing for compact PCB layouts.
It is designed for through-hole mounting, which is typical for PCB headers.
It is ideal for use in industrial automation, electronic device manufacturing, and PCB assembly applications.
This model has 2 rows of contacts, enhancing its connection capabilities.
The connector system is designed for wire-to-board connections, facilitating integration into electronic circuits.
The country of origin for this connector is China.
