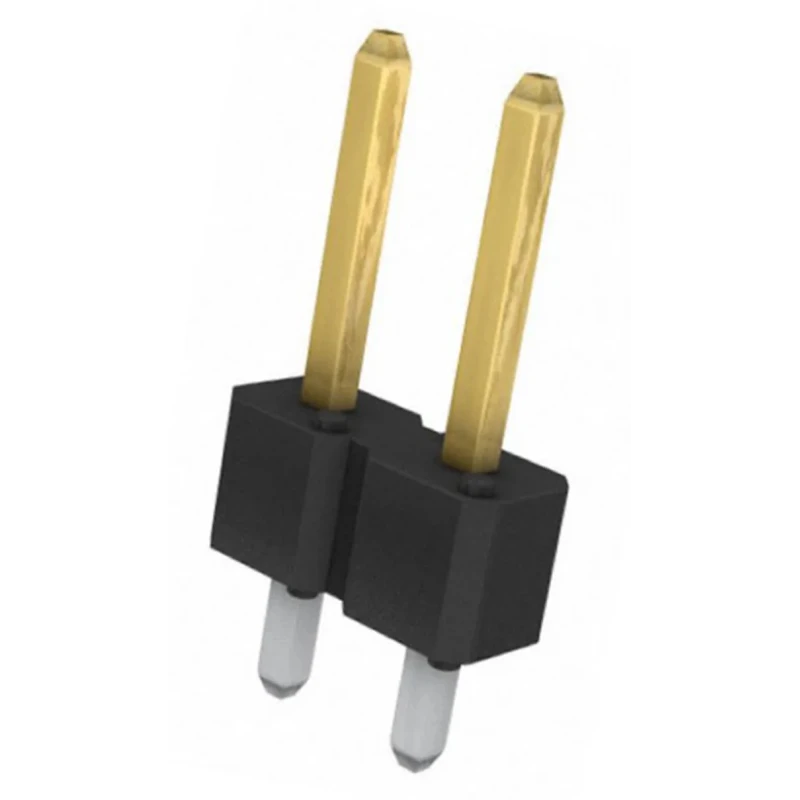

Amphenol Communications Solutions Bergstik Series Straight Through Hole Pin Header 2 Contacts 2.54 mm Pitch 1 77311-101-02LF
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1500V |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Current | 3A |
| Model | 77311-101-02LF |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 2.41mm |
| Mating Pin Length | 5.84mm |
Key Features
- The pin header is straight, unshrouded with a through hole mount type.
- It supports a current rating of 3A and voltage rating up to 1500V.
- Constructed with thermoplastic housing and phosphor bronze contacts plated with gold for durability.
- Operates reliably in temperatures from -65°C to 125°C.
- Tail pin length is 2.41 mm with a mating pin length of 5.84 mm for secure connections.
- Compatible with board-to-board and wire-to-board connector systems.
- Housing is high-temperature reflow solder compatible and includes stand-offs to remove solder contamination.
- The product offers cost-effective duplex plating and can be cut to size to fit various applications.
Product Description
Amphenol Communications Solutions 77311-101-02LF Bergstik Series Straight Through Hole Pin Header features 2 contacts arranged in a single row with a 2.54 mm pitch, optimized for electronics and electrical connector applications. This pin header is unshrouded, straight in orientation, and designed for through hole mounting, making it suitable for both board-to-board and wire-to-board connections.
The housing is crafted from thermoplastic material that is compatible with high temperature reflow soldering processes, ensuring reliability during manufacturing. It incorporates stand-offs that aid in removing solder contamination, enhancing the quality of solder joints.
Contact material is phosphor bronze with gold plating that offers excellent conductivity and corrosion resistance while ensuring mechanical durability. This configuration supports a current rating of 3A and a voltage rating up to 1500V, suitable for various industrial and commercial electronics applications.
Operating temperature ranges from -65°C to 125°C, providing robust performance even in demanding environments. The tail pin length of 2.41 mm and mating pin length of 5.84 mm ensure secure and stable connections with compatible female connectors like the Dubox series receptacles and crimp housings.
This Bergstik Series pin header can be customized in length by cutting to suit specific application needs, offering versatility with economic and cost-effective duplex contact plating. It is widely used across industries including electronics manufacturing, communications, industrial automation, and consumer electronics assembly.
The pin header is straight, unshrouded, and designed for through hole mounting. Constructed with thermoplastic high-temperature housing compatible with reflow soldering. Phosphor bronze contacts feature gold plating for conductivity and corrosion resistance.
Suitable for operating temperatures from -65°C to 125°C. Supports 3A current and 1500V voltage ratings. Tail pin length is 2.41 mm; mating pin length is 5.84 mm. Can be cut to size to fit custom applications. Compatible with multiple female connector series including Dubox and Quickie IDC.
Explore more PCB Headers and connectors from Amphenol Communications Solutions at EnvMart for reliable and versatile electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 3A.
It has a voltage rating of up to 1500V.
The tail pin length is 2.41 mm and the mating pin length is 5.84 mm.
It operates reliably in temperatures ranging from -65°C to 125°C.
The housing is made from thermoplastic, while the contacts are constructed from phosphor bronze and plated with gold.
Yes, the housing is compatible with high-temperature reflow soldering processes.
It is compatible with both board-to-board and wire-to-board connector systems.
This pin header features 2 contacts arranged in a single row.
The pitch of the contacts is 2.54 mm.
Yes, it can be cut to size to fit various application needs.
The pin header is designed in a straight orientation and is unshrouded.
The country of origin for this pin header is India.
