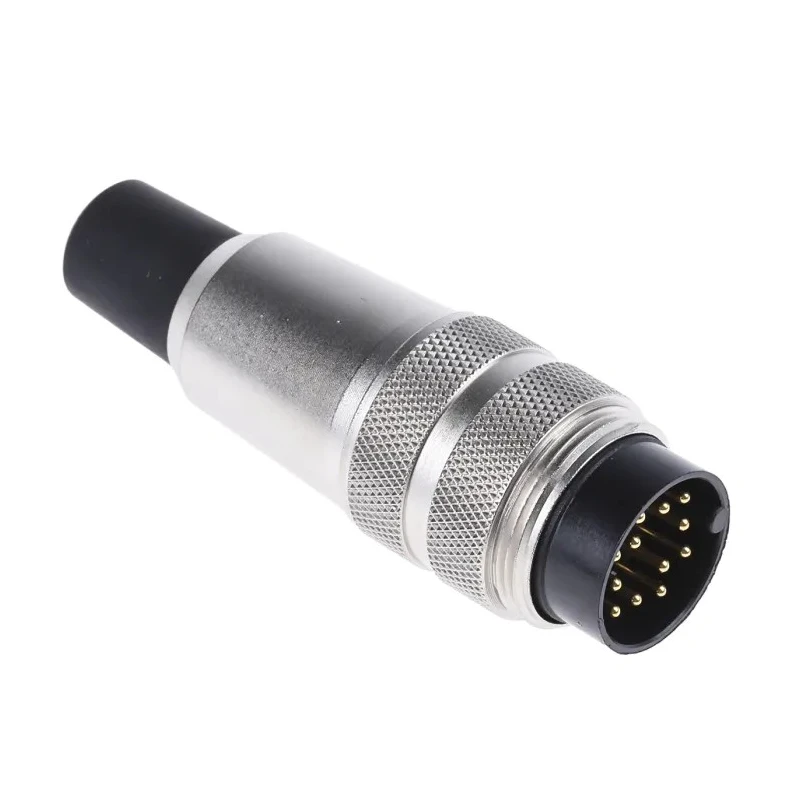

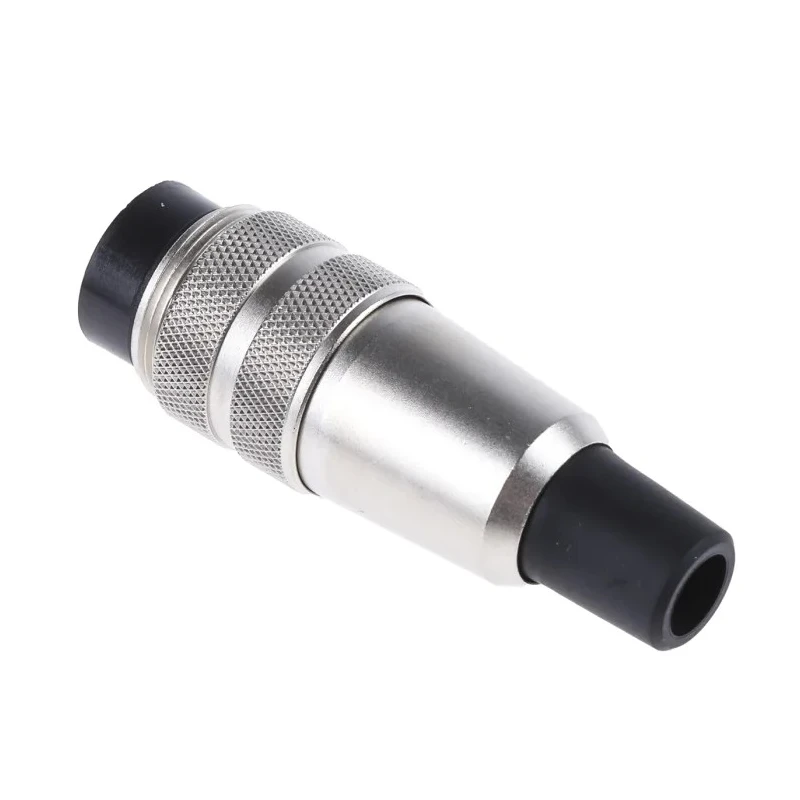

binder Circular Connector, 12 Contacts, Cable Mount, M16 Connector, Male Plug, IP40, 680 Series 09-0329-02-12
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 60V |
| Brand | binder |
| Orientation | Straight |
| Current | 3A |
| IP Rating | IP40 |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | 680 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shell Size | 18.5 mm |
| Mating Type | Screw Lock |
| Connector Size | M16 |
| Plug/Socket | Plug |
Key Features
- The circular connector features 12 gold-plated brass contacts for reliable conductivity.
- It has an IP40 ingress protection rating, suitable for indoor applications free from dust and moisture.
- The connector supports a voltage rating of 60V and a current rating of 3A.
- It employs a solder termination type with an M16 thread and screw locking mechanism for secure connections.
- The housing is made from durable polyamide material with a compact 680 series design.
- Operating temperature ranges from -40°C to 85°C ensuring wide environmental tolerance.
- This male plug connector has a straight orientation and 18.5 mm shell size for miniature electrical assemblies.
- It is manufactured in Germany under the 680 series standard for industrial circular connectors.
Product Description
binder 09-0329-02-12 circular connector with 12 contacts, cable mount type, and M16 size, offers a compact, durable, and reliable electrical connection solution. Designed for industrial and automation applications, this miniature connector is part of binder's 680 series, featuring robust polyamide housing and gold-plated brass contacts for enhanced performance.
This male plug connector supports a voltage rating of 60V and current of 3A, making it suitable for a wide range of control and instrumentation equipment. It has an IP40 rating providing protection against solid objects and is suitable for indoor environments not exposed to dust or moisture.

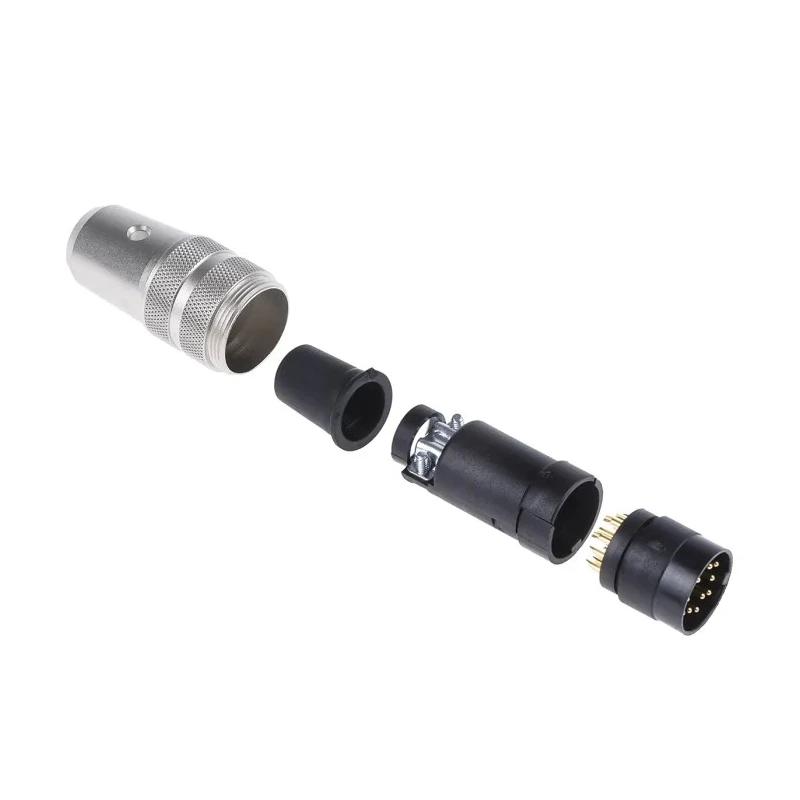

The connector incorporates a screw locking mechanism with M16 thread (0.75 pitch) for secure and quick assembly. Its solder termination ensures reliable electrical contact while an internal bend protection sleeve and strain relief offer maximum cable stability. The straight orientation and 18.5 mm shell size facilitate integration into tight assemblies.
Operating from -40°C to 85°C, this connector withstands industrial temperature conditions. Typical applications include industrial instrumentation, process control, machine tools, medical equipment, plant machinery, electrical assemblies, and automation systems.
The compact miniature design ensures ease of use where space is limited. Robust polyamide housing and gold contact plating enable lasting durability and resistance to corrosion. Screw lock mounting provides secure, vibration resistant connections.
Designed for multiple mating cycles to assure longevity. Internal cable protection sleeves minimize strain and improve cable retention.
Manufactured in Germany, this binder 680 series circular connector meets high-quality industrial standards. It is ideal for professional use in laboratory, manufacturing, and commercial electrical systems.
Explore the comprehensive range of binder circular connectors on EnvMart for precise and dependable connectivity solutions.
Explore more products in our Industrial Circular Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a voltage rating of 60V and a current rating of 3A, making it suitable for various control and instrumentation applications.
It has an IP40 ingress protection rating, which means it is suitable for indoor applications free from dust and moisture.
The housing is made from polyamide, and it features gold-plated brass contacts for reliable conductivity.
It operates effectively within a temperature range of -40°C to 85°C, ensuring it can withstand various industrial conditions.
This connector employs a solder termination type, ensuring reliable electrical contact.
It features a screw locking mechanism with an M16 thread for secure and quick assembly, providing vibration-resistant connections.
The shell size of this model is 18.5 mm, which allows for integration into tight assemblies.
This circular connector features 12 contacts, which are designed for reliable connectivity in various applications.
This model has a straight orientation, making it suitable for specific installation requirements in electrical assemblies.
It is manufactured in Germany, adhering to high-quality industrial standards.
Typical applications include industrial instrumentation, process control, machine tools, medical equipment, and automation systems.
This model is a male plug connector, designed for cable mounting in various electrical systems.
