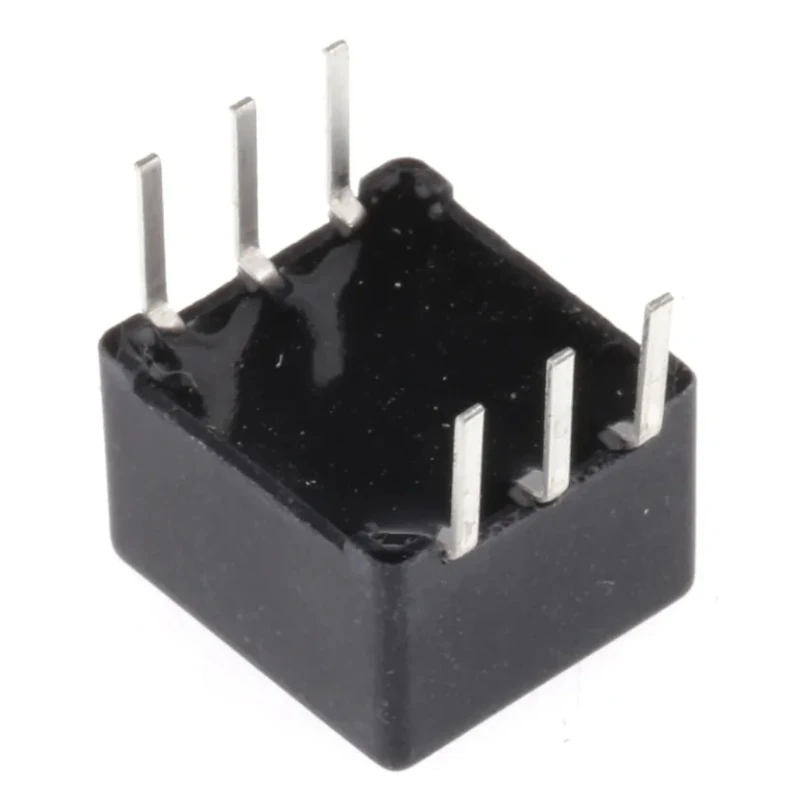

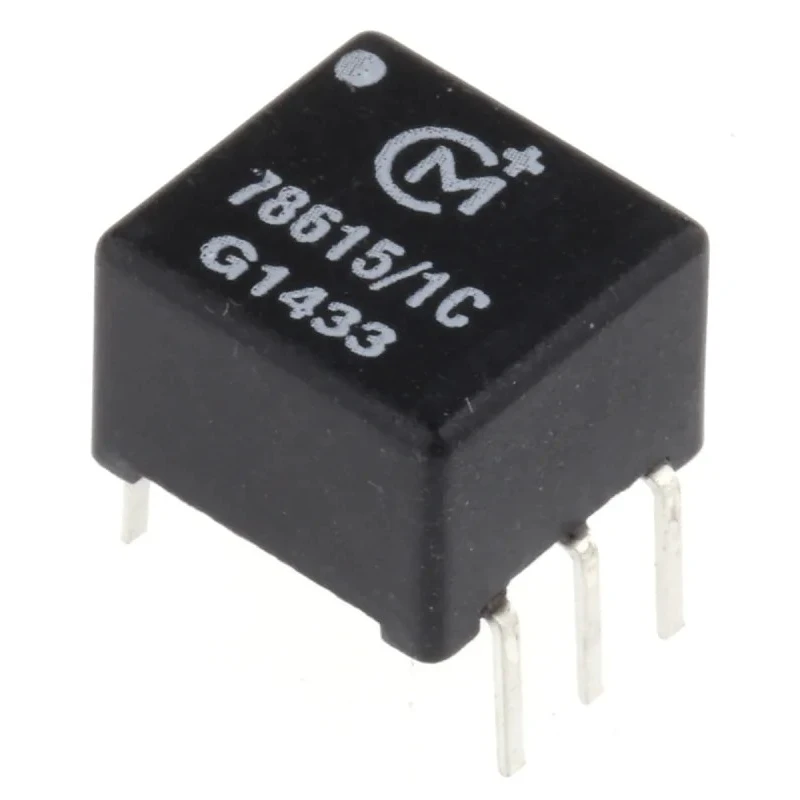

Murata Power Solutions Through Hole Pulse Transformer 1CT:1CT Turns Ratio, 2000 μH Primary Inductance, 0.6Ω Primary 78615/1C
Specifications
| Country of Origin | China |
|---|---|
| Brand | Murata Power Solutions |
| Length | 9.52mm |
| Model | 78615/1C |
| Depth | 9.79mm |
| Gross Weight | 1.1g |
| Width | 9mm |
| Mount Type | Through Hole |
| Series | 786 |
| Termination Type | Pin |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | RoHS |
| Number of Pins | 6 |
| Isolation Voltage | 1kV |
| Primary Inductance | 2000μH |
| Turns Ratio | 1CT:1CT |
| Primary DC Resistance | 0.6Ω |
| Leakage Inductance | 16μH |
| Turns Ratio1CT | 1CT |
| 1CT | 1CT |
Key Features
- This pulse transformer features a through hole mount type suitable for PCB installation.
- The transformer has a leakage inductance of 16 μH to ensure signal integrity.
- It includes 6 pins for secure electrical connections and reliable termination.
- Operating temperature range is 0°C to 70°C, ensuring performance stability in various environments.
- Its compact dimensions are 9.52 mm length, 9.79 mm depth, and 9 mm width for space-efficient designs.
- Isolation voltage is rated at 1 kV for electrical safety and noise isolation.
- This RoHS compliant transformer is manufactured in China, ensuring adherence to environmental standards.
Product Description
Murata Power Solutions 78615/1C Through Hole Pulse Transformer 786 Series offers a reliable 1CT:1CT turns ratio with a primary inductance of 2000 μH and primary DC resistance of 0.6Ω. It is engineered for general purpose pulse transformer applications such as coupling, thyristor or triac firing, and use in small-sized switch mode power supplies.
Featuring a through hole mount type with a 6-pin configuration, this transformer provides secure and stable electrical terminations. Its leakage inductance of 16 μH ensures minimal signal distortion for precise pulse transmission.
The transformer operates safely between 0°C to 70°C, offering dependable performance across various industrial, laboratory, and power supply environments. The compact form factor measures 9.52 mm in length, 9.79 mm in depth, and 9 mm in width, making it an excellent choice for designs with limited space.
With an isolation voltage rated at 1 kV, it provides robust electrical isolation to prevent interference and enhance circuit safety. The device complies with RoHS environmental standards and is manufactured in China.
This Pulse Transformer includes a 1CT:1CT turns ratio for precise electrical performance. Designed especially for switching power supply and thyristor/triac firing applications. Compact size supports space-efficient PCB layouts.
RoHS compliant for environmentally friendly use. Ideal for industrial, laboratory, and electronic applications needing reliable pulse transformation. Explore the Electronics & Electricals category for more advanced Murata Power Solutions transformers and related components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary inductance of this pulse transformer is 2000 μH.
This model features a turns ratio of 1CT:1CT.
The maximum operating temperature for this transformer is 70°C.
It has an isolation voltage rating of 1 kV.
The dimensions are 9.52 mm in length, 9.79 mm in depth, and 9 mm in width.
This transformer includes 6 pins for secure electrical connections.
The primary DC resistance is 0.6Ω.
It features a through hole mount type suitable for PCB installation.
The leakage inductance is rated at 16 μH.
Yes, this transformer is RoHS compliant, adhering to environmental standards.
This product is manufactured in China.
It is designed for general purpose pulse transformer applications such as coupling, thyristor or triac firing, and use in small-sized switch mode power supplies.
