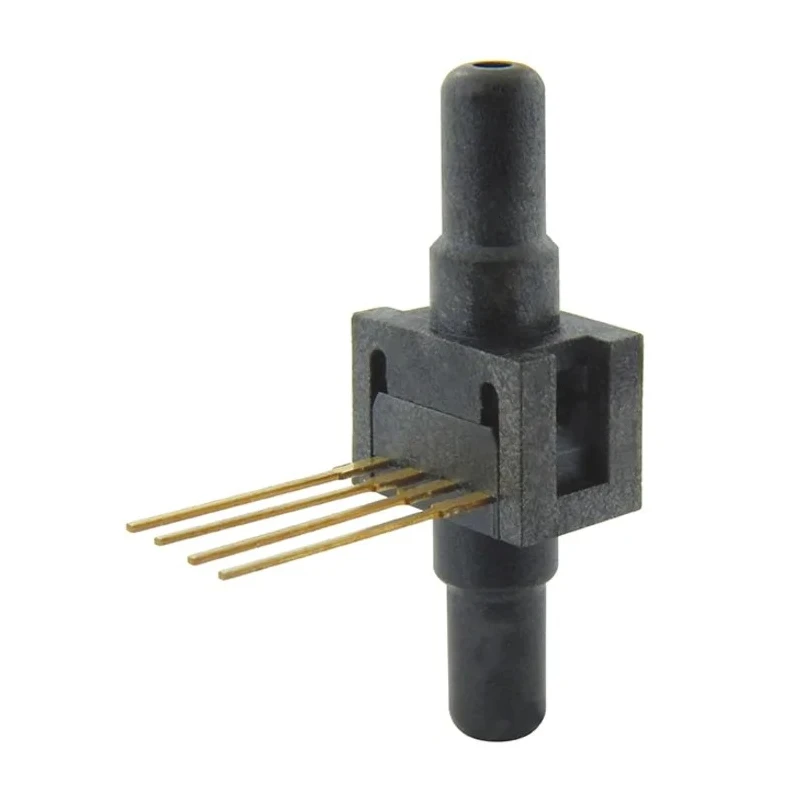

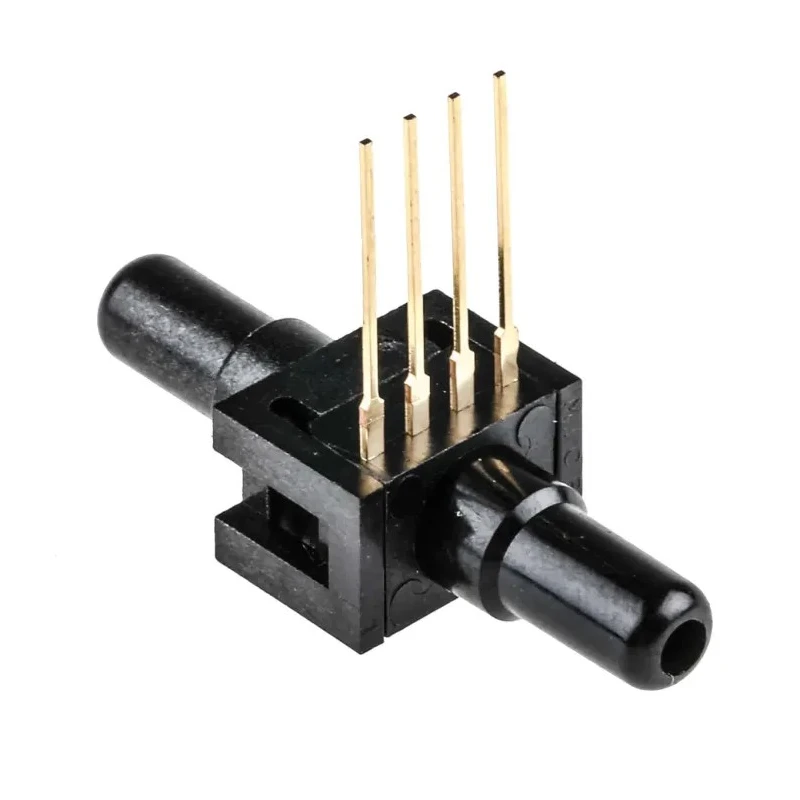

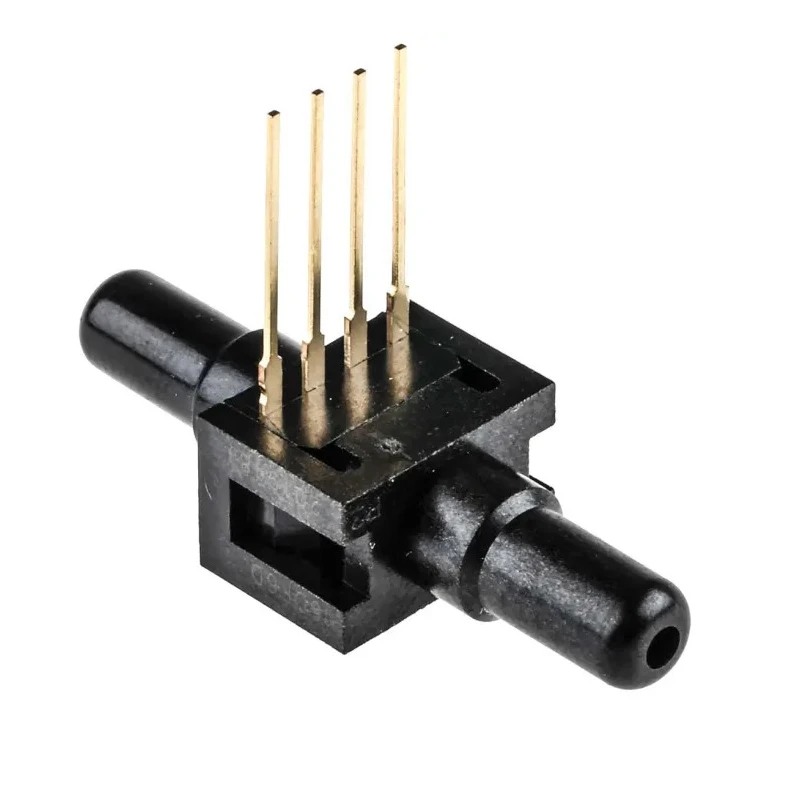

Honeywell Technologies 26PC Series Differential Pressure Sensor Wheatstone Bridge Output 0psi to 30psi 2.5V to 16V 26PCDFA6D

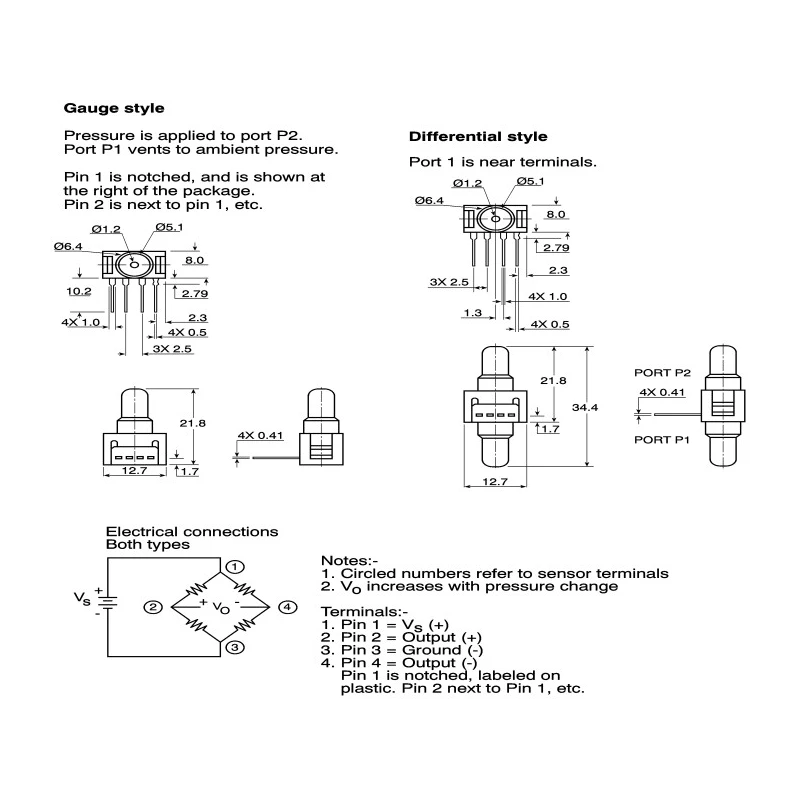

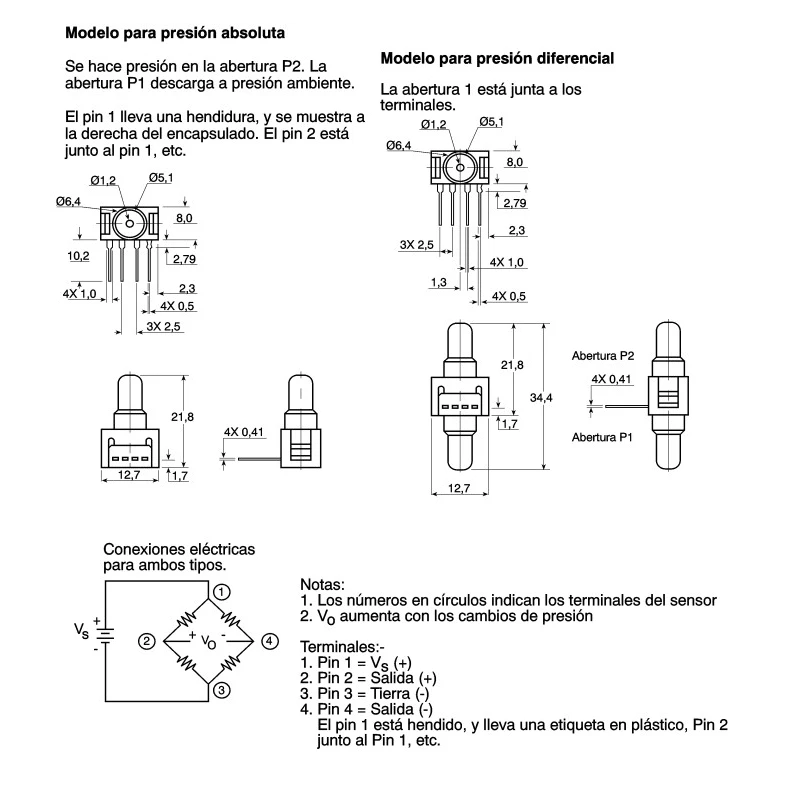

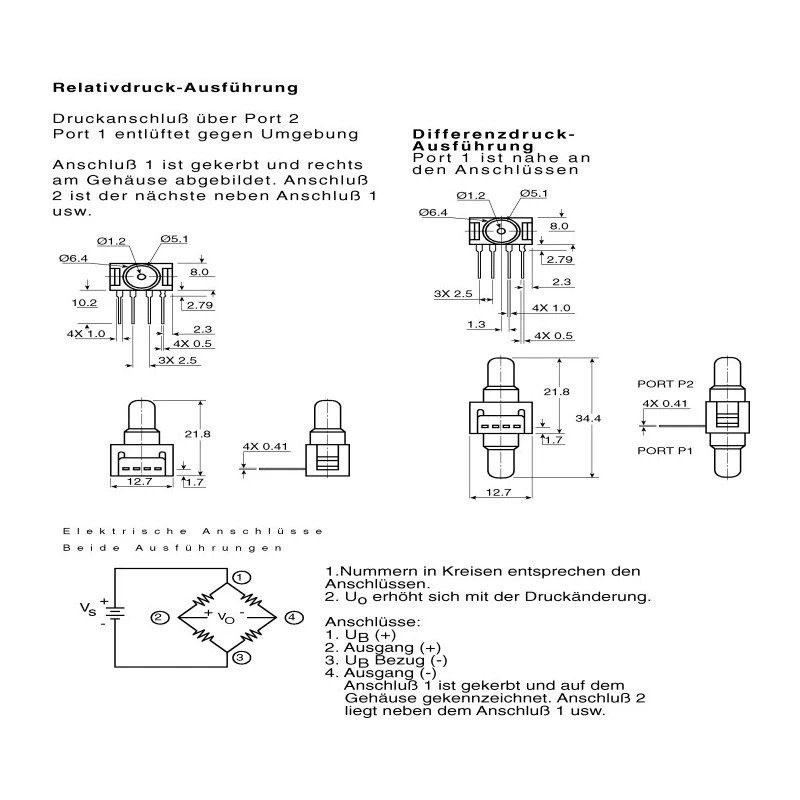

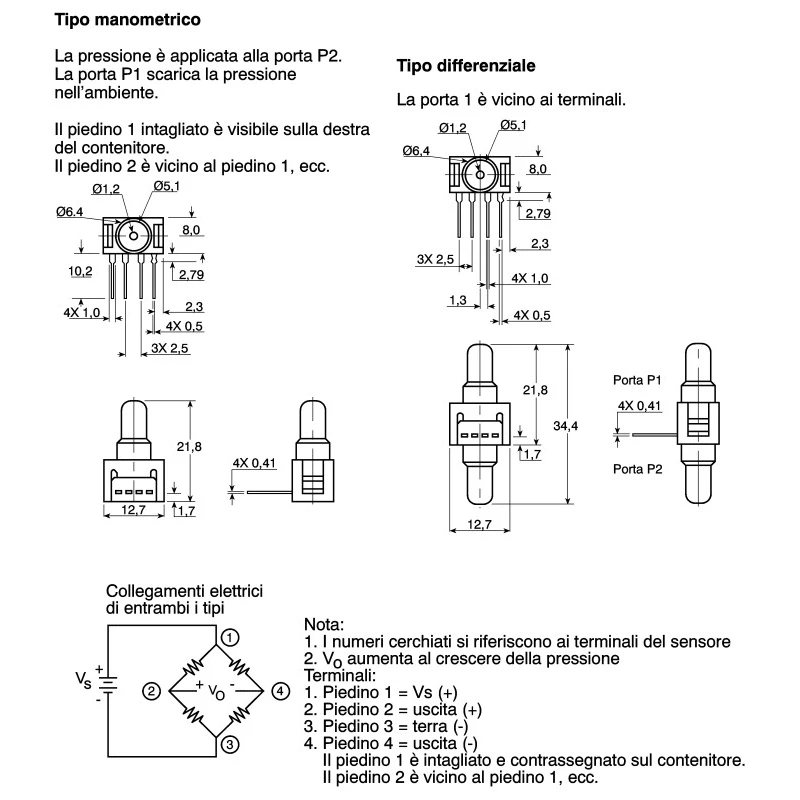

Honeywell 26PCDFA6D 26PC Series Differential Pressure Sensor is a temperature-compensated pressure sensor designed for accurate measurement in demanding industrial and aerospace environments. The sensor executes differential pressure readings within a 0 to 30 psi range using a Wheatstone bridge output system comprising four resistors on a diaphragm, which change resistance according to applied pressure to deliver precise voltage output.

Operating with a supply voltage range of 2.5 to 16 volts DC, this sensor offers a high accuracy of ±0.25%, making it suitable for critical pressure monitoring tasks. The sensor’s plastic housing provides robust impact strength and supports operation in temperatures ranging from -40°C to +85°C, making it capable of outdoor and indoor use in harsh conditions.

Its rapid 1 ms response time is ideal for frequent and reliable readings, while its soldering terminal type ensures secure electrical connections on SMT boards. The 26PC series sensors are compact and designed to reduce PCB footprint and manufacturing costs. The technology is based on proven piezo-resistive micro-machined sensing elements, ensuring performance, reliability, and accuracy without amplification but with temperature compensation.

This sensor is widely applied in medical devices, aerospace systems, industrial pumps, and various other industrial fields requiring precise pressure measurement and control. The product complies with ISO 9001 quality standards, guaranteeing reliability and consistent product quality.

Provides differential pressure measurement from 0 psi minimum to 30 psi maximum range. Features high accuracy of ±0.25% suitable for critical industrial and aerospace applications. Output is based on a Wheatstone bridge system allowing precise voltage readings proportional to pressure.

Robust plastic housing supports an operating temperature range of -40°C to 85°C for demanding environments. Fast response time of 1 millisecond enables frequent and reliable pressure monitoring. Soldering type terminals allow secure and stable electrical connections.

Temperature compensated sensor ensures reliable readings in nitrogen and oxygen gas atmospheres. Compact SMT design reduces PCB footprint and manufacturing costs. Certified with ISO 9001 quality standards assuring product reliability and performance.

Ideal for use in medical equipment, aerospace, industrial pumps, and other industrial applications. Explore Honeywell sensors and Pressure Sensor solutions on EnvMart for industrial and laboratory use, ensuring precise control and reliable performance.
