4D Systems gen4-IoD-24T LCD Colour Display Touch Screen 2.4 Inch 240 x 320 Pixel UART Interface gen4-IoD-24T
Specifications
| Country of Origin | Australia |
|---|---|
| Display Type | LCD |
| Brand | 4D Systems |
| Current | 200mA |
| Height | 7.2mm |
| Model | gen4-IoD-24T |
| Depth | 7.2mm |
| Width | 44.8mm |
| Series | gen4 |
| Maximum Operating Temperature | 70°C |
| Brightness | 182cd/m² |
| Minimum Operating Temperature | -20°C |
| Interface Type | UART |
| Screen Resolution | 240 x 320 pixel |
| Standards/Approvals | CE, RoHS |
| Touch Screen Type | Resistive |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 5V |
| Viewing Area Dimensions | 37 x 49 mm |
| Backlight Type | LED |
| Diagonal Display Size | 60.96mm |
| Contrast Ratio | 250:1 |
| Contrast Ratio250 | 1 |
| 250 | 1 |
Key Features
- The 60.96 mm diagonal display features a resistive touch screen for responsive input.
- It has a viewing area of 37 x 49 mm with LED backlight for clear visibility.
- The module operates at 5 to 5.5 volts with a current draw of 200mA.
- Designed for industrial and embedded applications with operating temperatures from -20°C to 70°C.
- Compact dimensions with a thickness and height of 7.2 mm and width of 44.8 mm.

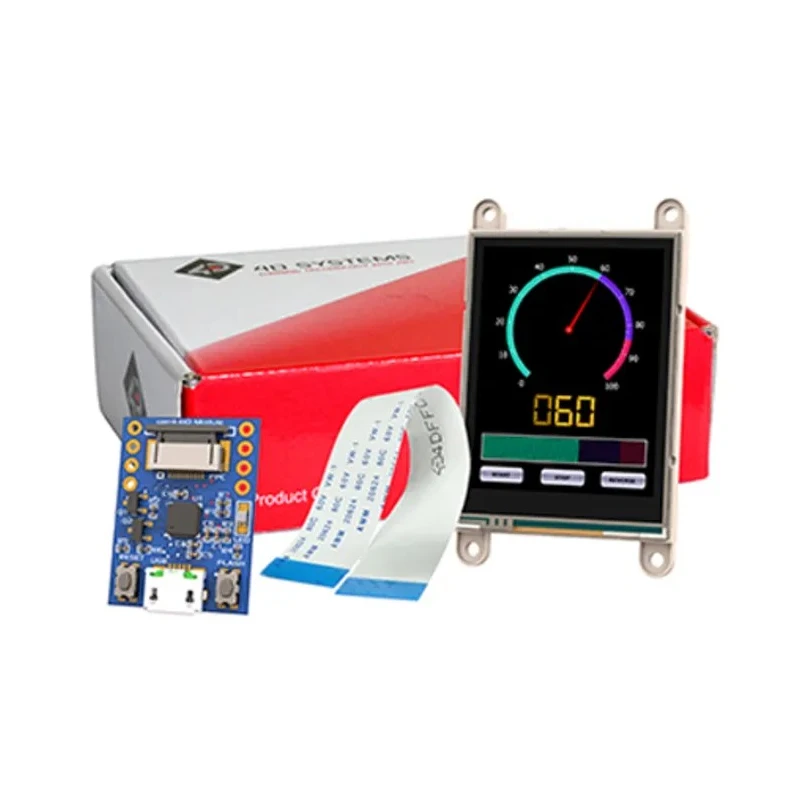

- Supplied with programming adaptor and 10-way FFC cable for easy integration.
- Powered by Espressif ESP8266 SoC with integrated Wi-Fi supporting multiple security protocols.
- Onboard micro SD card slot enables multimedia storage and data logging.
Product Description

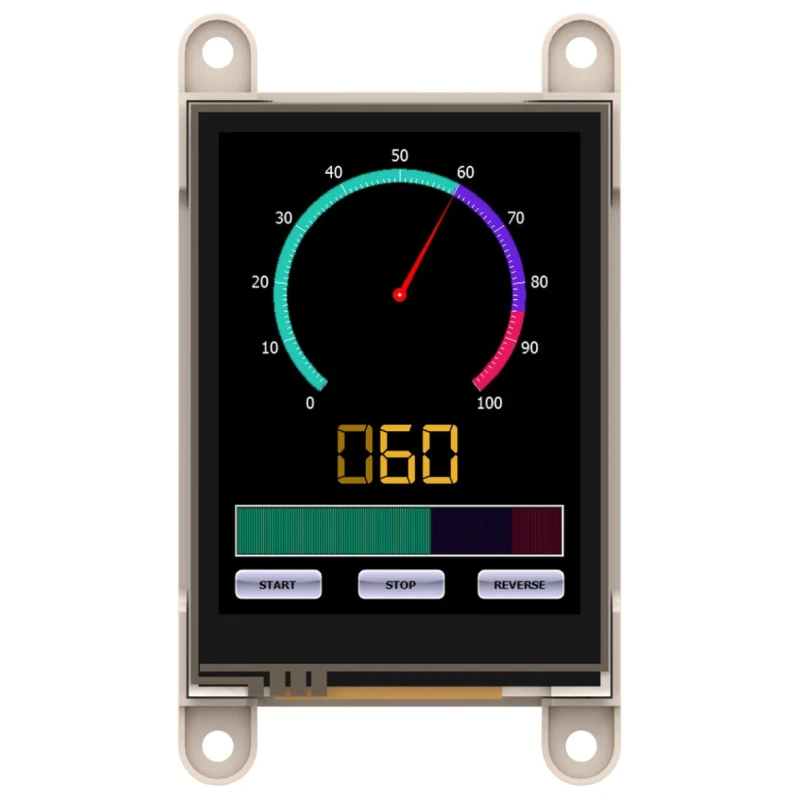

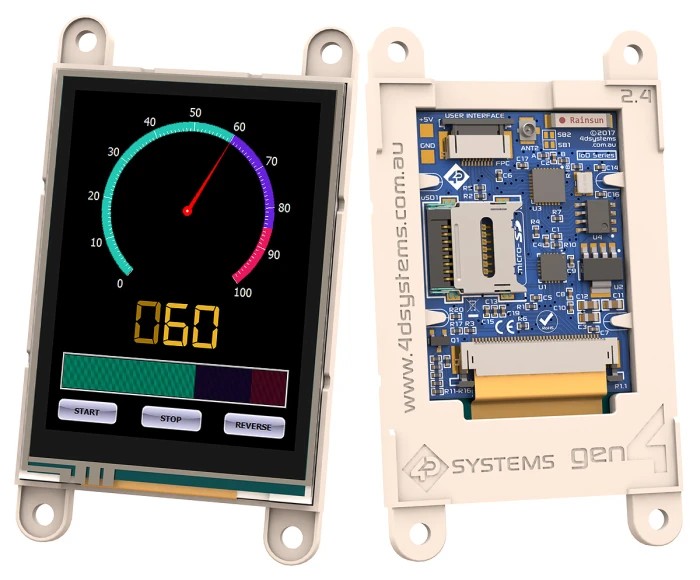

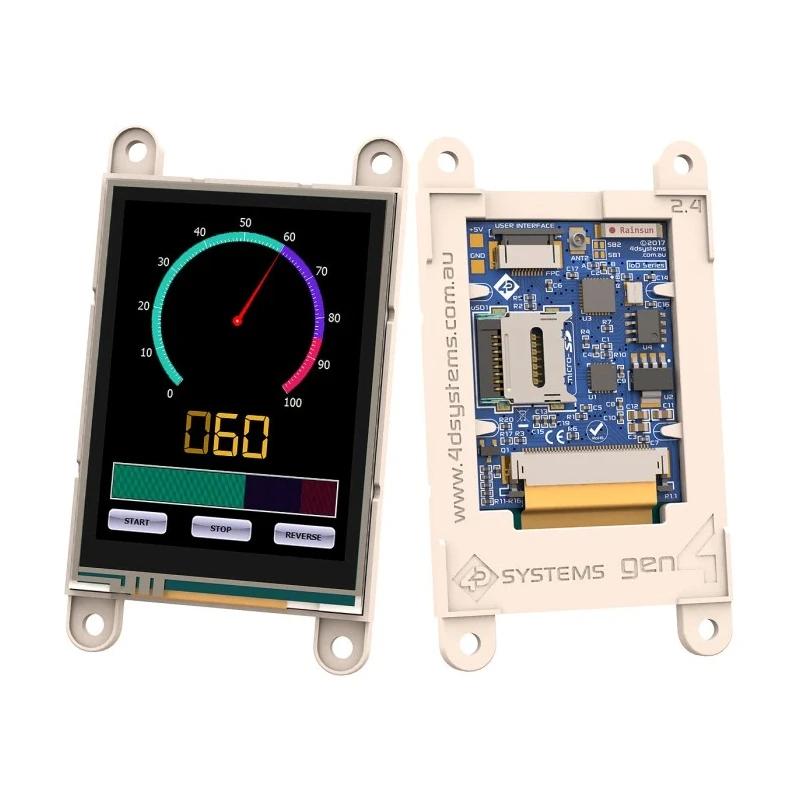

4D Systems gen4-IoD-24T LCD Colour Display Touch Screen is a compact 2.4 inch display module with 240 x 320 pixel resolution and UART interface for seamless communication. It delivers full-colour RGB 65k display capabilities suitable for industrial, embedded, manufacturing, and automation applications requiring an intuitive HMI.
The module features a resistive touch screen interface with LED backlight enhancing usability even in moderate ambient light. With dimensions approximately 44.8 mm wide, 7.2 mm thick, and a 60.96 mm diagonal, it maintains a slim profile for tight spaces.
Powered by the Espressif ESP8266 System on Chip, this display supports onboard Wi-Fi connectivity operating in 2.4 GHz band supporting WPA/WPA2 security protocols and provides multiple wireless operation modes including STA, AP, and P2P.

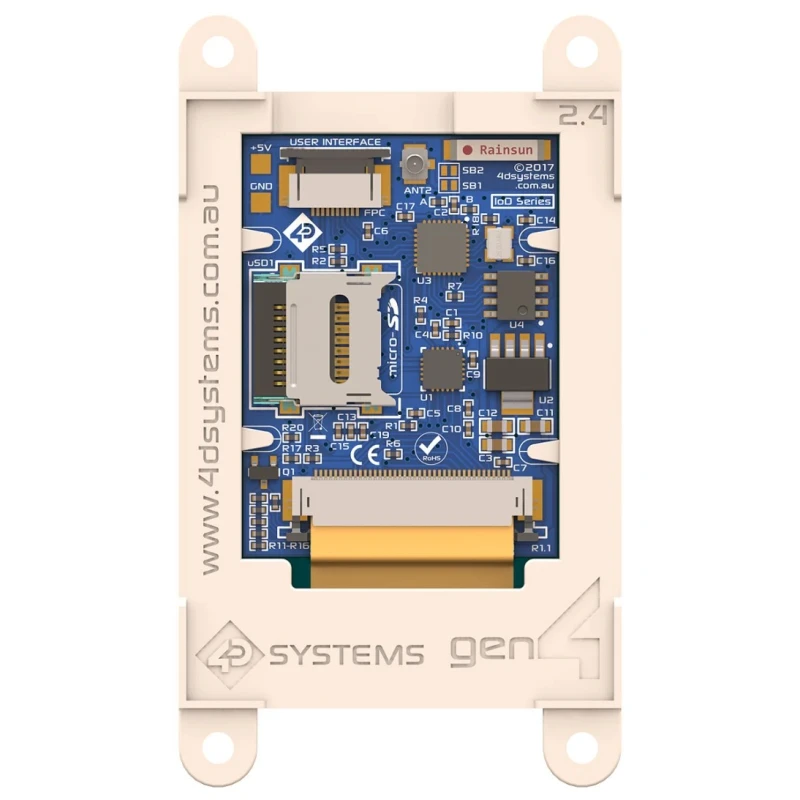

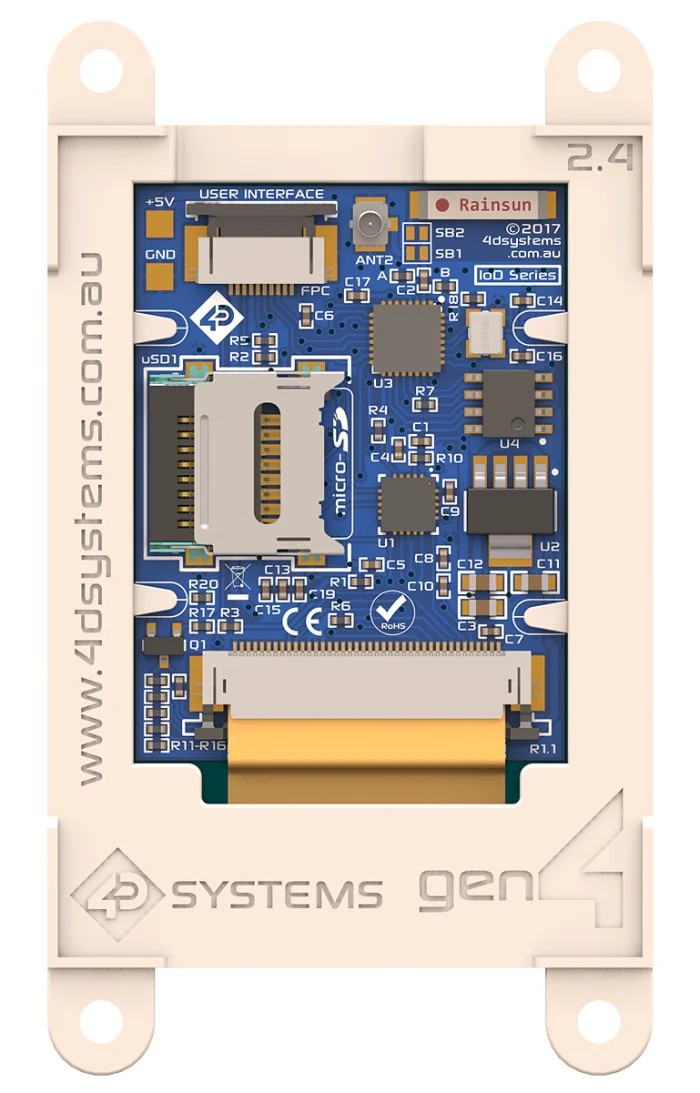

The 10-pin ZIF socket facilitates connection to host controllers with the included programming adaptor and 10-way flat flexible cable. A micro-SD card slot enables extended multimedia storage, data logging, or multimedia application support.
The module is rated for operating voltages between 4.0 V and 5.5 V, drawing 200 mA current, and designed to withstand operating temperatures from -20°C to 70°C, suitable for harsh or industrial environments. It carries CE and RoHS compliance, ensuring adherence to industry and environmental standards.
The compact gen4-IoD-24T is ideal for embedded system interfaces, IoT device displays, and industrial control panels. Its resistive touch provides robust user input options with enhanced durability. Integration is simplified via the UART interface and 10-pin FFC connection.
The onboard ESP8266 SoC enables advanced connectivity and processing power. Suitable for applications in manufacturing, laboratory instruments, industrial automation, and IoT device control.
4D Systems offers this display as part of their Gen4 series, providing developers a flexible platform for advanced human-machine interface applications with wireless connectivity and rich graphical capabilities.
