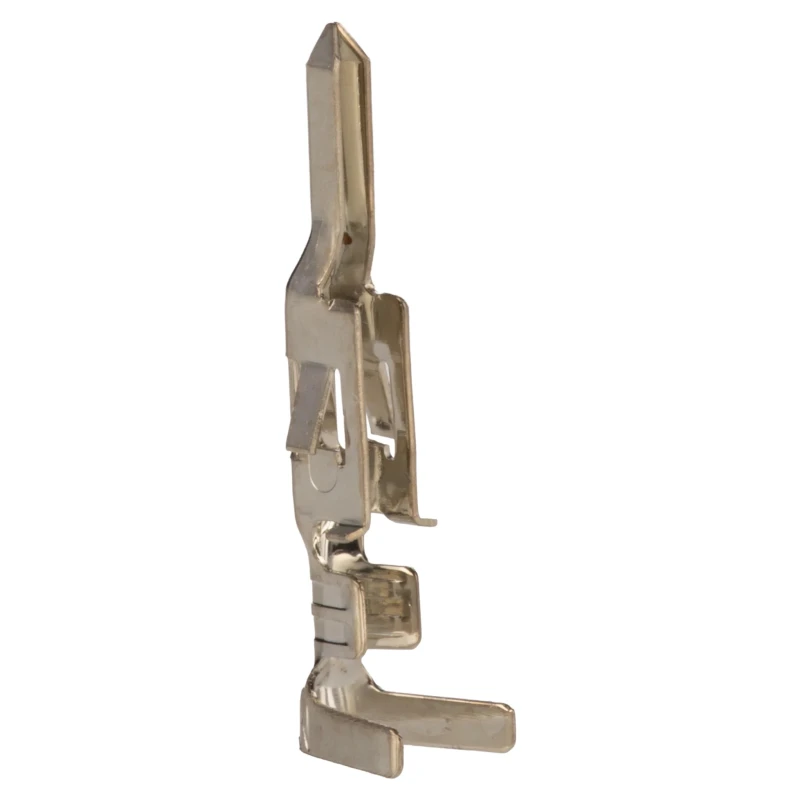

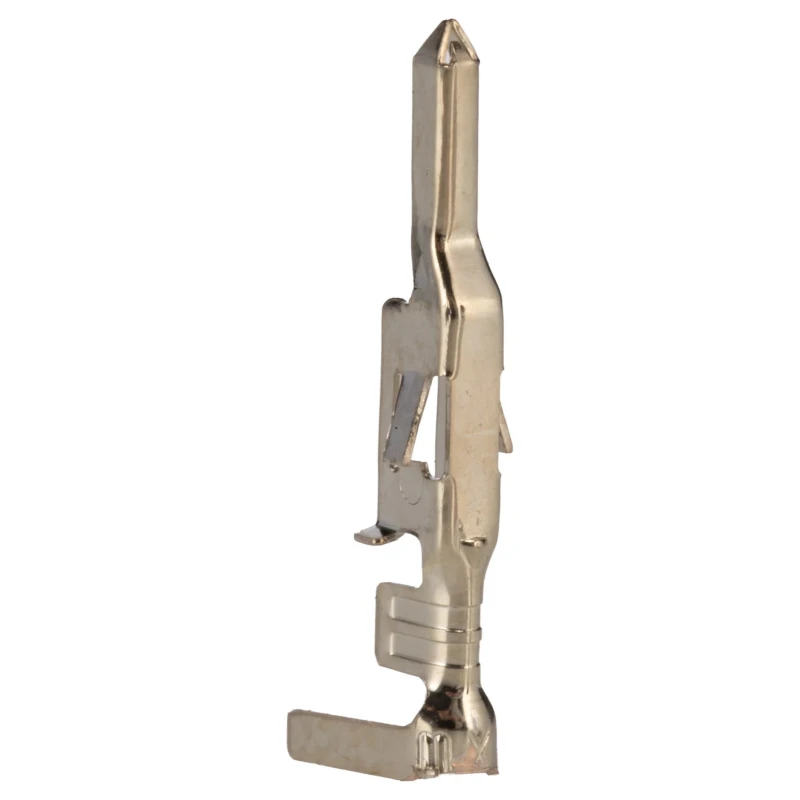

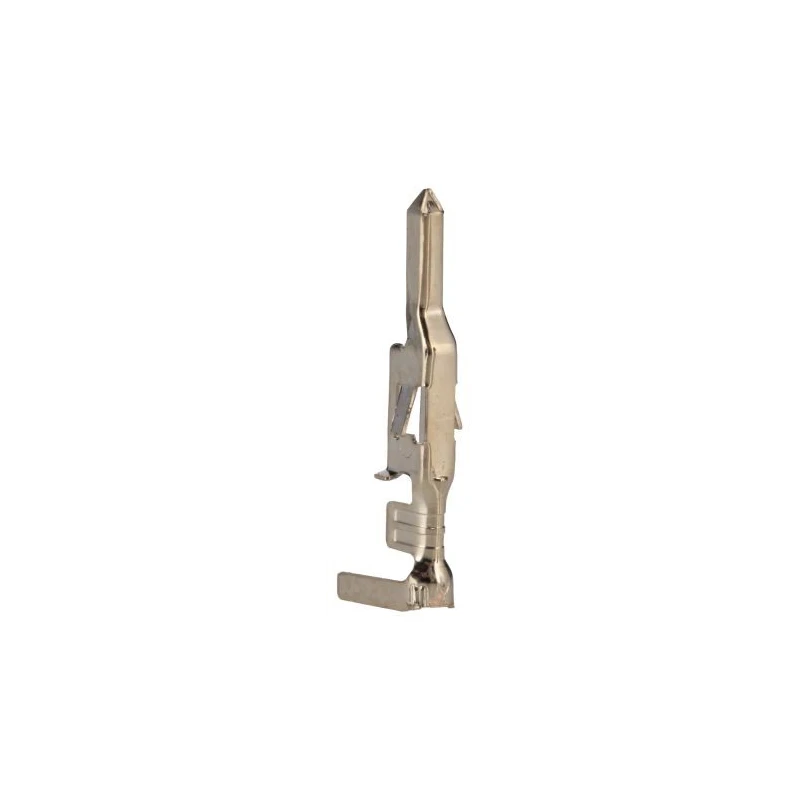

Molex 5558 Series Male Crimp Terminal, Tin Plated Phosphor Bronze Contact, 24 AWG Min to 18 AWG Max, 9A Current 39-00-0126
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Male |
| Contact Material | Phosphor Bronze |
| Series | 5558 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit TPA and Mini-Fit BMI Connector Housings, Mini-Fit Jr |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- The terminal features a phosphor bronze contact material with tin plating for superior conductivity and corrosion resistance.
- Compatible with Mini-Fit TPA, BMI, and Mini-Fit Jr connector housings for flexible applications.
- Designed for crimp termination ensuring a secure and reliable electrical connection.
- Supports wire sizes from 0.2 mm² (24 AWG) minimum to 0.8 mm² (18 AWG) maximum.
- Maximum contact resistance of 10 milliohms ensures efficient signal transmission.
- Rated for 9 amp current suitable for varied electronic and electrical applications.
- Operating temperature range from -40°C to 105°C allows performance in diverse environments.
- Manufactured in the United States, meeting high industrial standards.
Product Description
Molex 39-00-0126 Male Crimp Terminal from the 5558 Series is engineered for reliable electrical connectivity in electronic, automation, industrial, aerospace, and data communication applications. Featuring high-quality phosphor bronze contacts with tin plating, this terminal offers excellent durability and excellent conductivity.
Specifically designed for use with Mini-Fit TPA, BMI, and Mini-Fit Jr connector housings, it accommodates wire sizes from 24 AWG (0.2 mm²) up to 18 AWG (0.8 mm²), supporting a maximum current rating of 9 amps. Its crimp termination type guarantees secure attachment and optimal performance in demanding environments.
The terminal exhibits a maximum contact resistance of 10 milliohms and withstands operating temperatures ranging from -40°C to 105°C, making it suitable for automotive wiring harnesses, PCB assemblies, industrial control systems, aerospace technology, and communication equipment.
Manufactured in the United States, this Molex crimp terminal ensures high-quality standards and reliability. The terminal is compatible with detailed connector housings Mini-Fit TPA, BMI, and Jr series. The crimp termination type facilitates robust electrical contact security.
Phosphor bronze contact material with tin plating ensures high conductivity and corrosion resistance. Supports wire gauges from 24 AWG minimum to 18 AWG maximum for versatile use. Rated at 9 amperes current capacity for varied applications.
Operates efficiently in temperature extremes from -40°C to 105°C. Designed with a maximum contact resistance of 10 milliohms to maintain signal integrity. This product is ideal for industrial, laboratory, HVAC, manufacturing, and automotive sectors seeking dependable male crimp terminals that comply with industry standards.
Discover more electronics components and connectors in the Electronics & Electricals category at EnvMart.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal is rated for a maximum current of 9 amps, making it suitable for various electronic and electrical applications.
It accommodates wire sizes from 24 AWG (0.2 mm²) minimum to 18 AWG (0.8 mm²) maximum, allowing for versatile use in different applications.
The maximum contact resistance of this terminal is 10 milliohms, which helps ensure efficient signal transmission.
The terminal features a phosphor bronze contact material with tin plating, which provides superior conductivity and corrosion resistance.
It is compatible with Mini-Fit TPA, Mini-Fit BMI, and Mini-Fit Jr connector housings, allowing for flexible applications.
This model operates efficiently within a temperature range of -40°C to 105°C, making it suitable for diverse environments.
It employs a crimp termination type, ensuring a secure and reliable electrical connection.
This terminal is manufactured in the United States, adhering to high industrial standards.
This crimp terminal is part of the Molex 5558 Series, designed for reliable electrical connectivity in various applications.
It is suitable for use in automotive wiring harnesses, PCB assemblies, industrial control systems, aerospace technology, and communication equipment.
This crimp terminal is male gendered, designed to connect with compatible female connectors.
The tin plating on this terminal enhances its conductivity and provides corrosion resistance, ensuring reliable performance over time.
