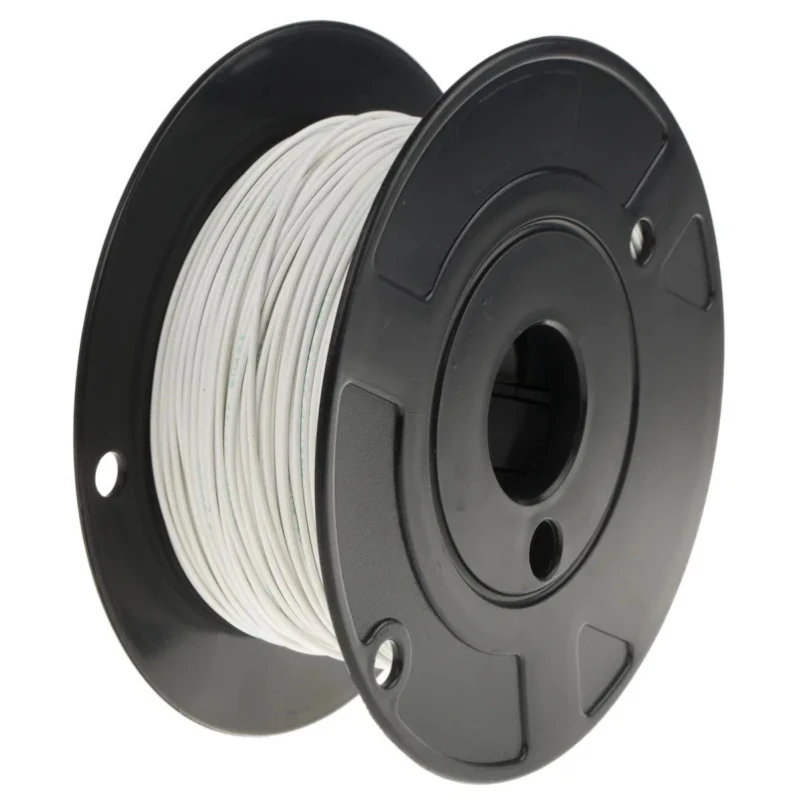

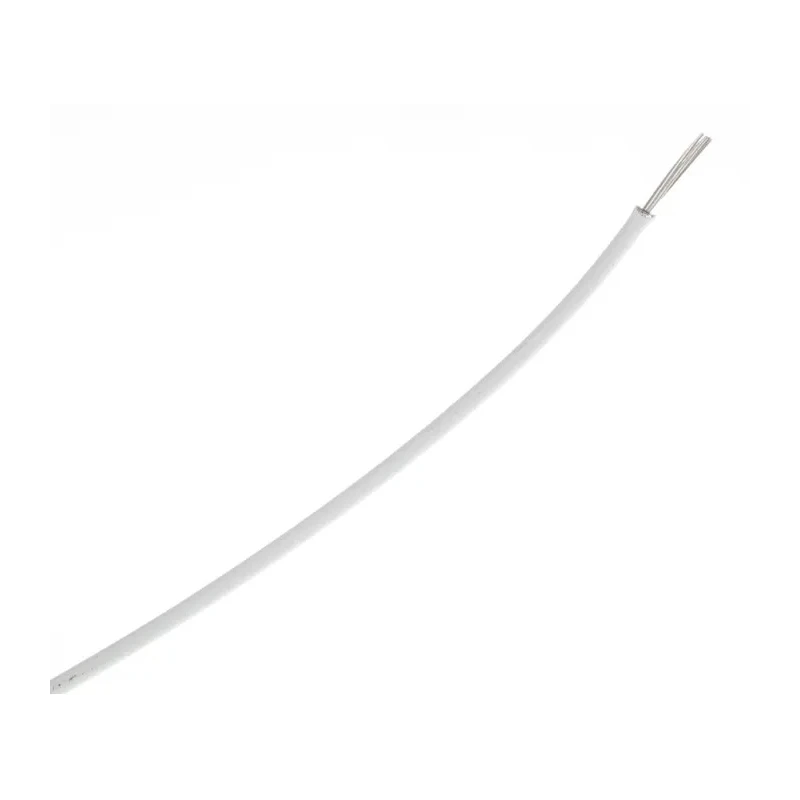

TE Connectivity White Ethylene Tetrafluoroethylene Jacket Hook Up Wire 16 AWG, 19 x 29 AWG Strands, 100 m M22759/32-16-9

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity White Ethylene Tetrafluoroethylene Jacket Hook Up Wire 16 AWG, 19 x 29 AWG Strands, 100 m M22759/32-16-9

Name: TE Connectivity White Ethylene Tetrafluoroethylene Jacket Hook Up Wire 16 AWG, 19 x 29 AWG Strands, 100 m M22759/32-16-9
Brand: TE Connectivity
SKU: 185615



Category Hook Up Wire Brand TE Connectivity Condition New

Specifications

Country of Origin	Mexico
Voltage	600V ac
Brand	TE Connectivity
Model	M22759/32-16-9
Cable Length	100m
Series	M22759
Outside diameter	1.73mm
Maximum Operating Temperature	150°C
Conductor Material	Copper
Minimum Operating Temperature	-65°C
Jacket Material	Ethylene Tetrafluoroethylene
Jacket Colour	White
American Wire Gauge	16AWG
Number of Strands	19
Core Strands	19 x 29AWG
Size of Strands	29AWG

Key Features

Constructed with stranded tin-plated copper conductors for excellent conductivity and flexibility.
Jacket made from chemically resistant and crosslinked ethylene tetrafluoroethylene material.
Rated for high voltage up to 600V AC and temperature range from -65°C to 150°C.
Designed for harsh environment applications including commercial, military aerospace, and ground systems.
Small diameter wire offering low smoke and corrosive gas generation during use.
Suitable for use where electrical arc tracking and physical durability are required.
19 strands of 29 AWG size for enhanced flexibility and mechanical strength.
Complies with TE Connectivity's M22759 series standard for tough physical characteristics.

Product Description

TE Connectivity M22759/32-16-9 Hook Up Wire is a high-performance electrical wire designed with a white ethylene tetrafluoroethylene jacket and copper conductor. This wire measures 16 AWG with 19 strands of 29 AWG core strands, providing a total length of 100 meters.

The wire is engineered for demanding harsh environments, making it ideal for commercial, military aerospace, and ground system applications. Its dual layer insulation variant is particularly suited for airframe usage, offering protection under strenuous conditions.

Key attributes include excellent chemical resistance, low smoke generation, and reduced corrosive gas emissions. The insulation is crosslinked to provide enhanced durability and resistance to electrical arc tracking. This wire operates reliably between temperatures of -65°C and +150°C and can handle voltages up to 600V AC.

Featuring stranded tin-plated copper conductors, the wire ensures reliable conductivity and mechanical flexibility. The small diameter supports applications requiring space-saving wiring with tough physical characteristics.

Constructed with stranded tin-plated copper conductors for excellent conductivity and flexibility. Jacket made from chemically resistant and crosslinked ethylene tetrafluoroethylene material. Rated for high voltage up to 600V AC and temperature range from -65°C to 150°C.

Designed for harsh environment applications including commercial, military aerospace, and ground systems. Small diameter wire offering low smoke and corrosive gas generation during use. Suitable for use where electrical arc tracking and physical durability are required.

19 strands of 29 AWG size for enhanced flexibility and mechanical strength. Complies with TE Connectivity's M22759 series standard for tough physical characteristics. This wire is manufactured in Mexico and provides reliable performance for industrial, aerospace, manufacturing, and electrical installation projects.
