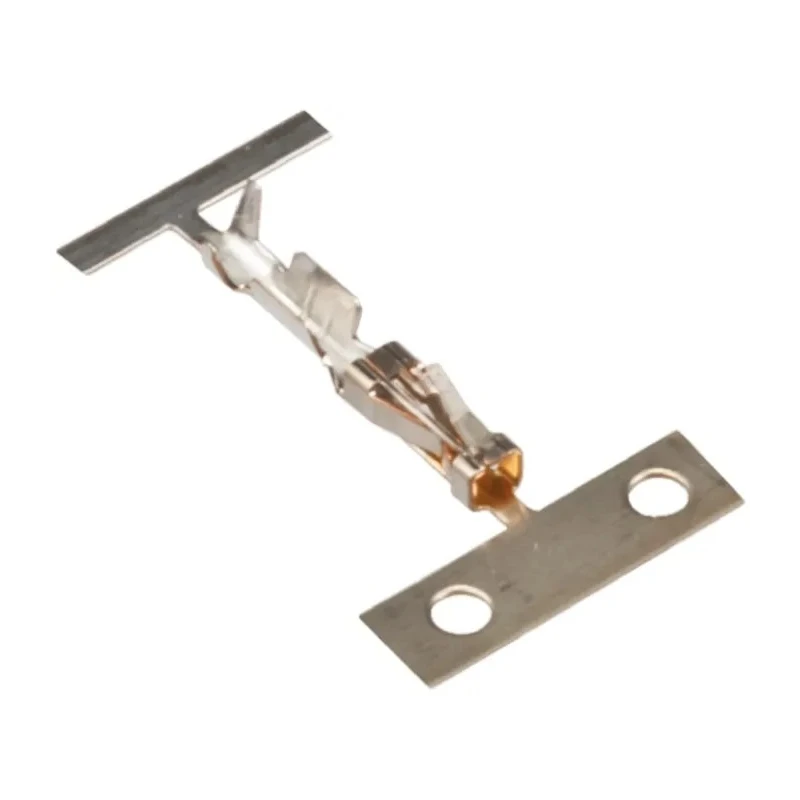

TE Connectivity AMPMODU Short Point Series Female Crimp Terminal, 3A, 26 AWG Min Crimp, 22 AWG Max, Gold Plating 1-104480-5
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 3A |
| Length | 11.68mm |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | AMPMODU Short Point |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| For Use With | AMPMODU Short Point and AMPMODU MTE Connector Housings |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.4mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 12mΩ |
Key Features
- Compatible with AMPMODU Short Point and MTE Connector Housings.
- Supports wire sizes ranging from 0.1 mm² (26 AWG) to 0.4 mm² (22 AWG).
- Features gold plating on copper alloy for enhanced conductivity and corrosion resistance.
- Designed for a maximum contact resistance of 12 milliohms ensuring reliable electrical performance.
- Operates efficiently in temperature ranges from -65°C to 105°C.
- Termination is through precise crimping for secure wire retention.
- Compact length of 11.68 mm facilitates use in tight connector assemblies.
- Locking lance feature enables secure snap-in installation into AMPMODU MTE housings.
Product Description
TE Connectivity 1-104480-5 is a Female Crimp Terminal from the AMPMODU Short Point Series engineered for seamless integration in electronic and industrial environments. Specifically designed to handle a current rating of 3A, this terminal supports a minimum wire size of 26 AWG (0.1 mm²) and a maximum wire size of 22 AWG (0.4 mm²), making it versatile for various wiring applications.
The contact is made from high-quality copper alloy with gold plating that enhances conductivity and corrosion resistance, ensuring prolonged lifecycle and reliable performance. The terminal is suitable for operating temperatures from -65°C up to 105°C, accommodating harsh environmental conditions often found in manufacturing, automotive, and electronic assembly industries.
Measuring 11.68 mm in length, the design incorporates a locking lance feature that firmly secures the terminal when snapped into AMPMODU MTE connector housings, facilitating efficient and robust electrical connections. The termination method via crimping offers secure retention of wires and minimal contact resistance capped at 12 milliohms, supporting signal integrity and safety.
These terminals are compatible with AMPMODU Short Point and AMPMODU MTE connector housings, commonly used for PCB connectors and wire housing applications in electronic components. They are suitable for use in industrial equipment, control systems, telecommunications hardware, and precision electronics.
Compatible with AMPMODU Short Point and MTE Connector Housings. Supports wire sizes from 26 AWG to 22 AWG. Gold-plated copper alloy contact material ensures high conductivity and corrosion resistance. Maximum contact resistance of 12 mΩ ensures signal reliability.
Operating temperature range from -65°C to 105°C for extreme condition use. Crimp termination for secure wire connection. Compact length of 11.68 mm allows space-efficient assembly. Locking lance feature secures terminal in housings.
Ideal for industrial, electronic, telecommunications, and manufacturing applications.
Explore more high-quality connector components and accessories in EnvMart's Electronics Components category, designed to meet stringent industrial standards and performance requirements.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This female crimp terminal has a current rating of 3A, making it suitable for various wiring applications.
It supports wire sizes ranging from 26 AWG (0.1 mm²) to 22 AWG (0.4 mm²), allowing for versatile use in different applications.
The maximum contact resistance is 12 milliohms, ensuring reliable electrical performance and signal integrity.
This terminal operates efficiently within a temperature range of -65°C to 105°C, accommodating harsh environmental conditions.
The crimp terminal measures 11.68 mm in length, which facilitates use in compact connector assemblies.
It utilizes crimp termination for secure wire retention, ensuring a reliable connection.
This model is compatible with AMPMODU Short Point and AMPMODU MTE connector housings, making it versatile for various electronic applications.
The contact is made from a copper alloy with gold plating, enhancing conductivity and corrosion resistance.
Yes, it includes a locking lance feature that secures the terminal when snapped into the connector housings, ensuring a stable connection.
It is suitable for use in industrial equipment, control systems, telecommunications hardware, and precision electronics.
The gold plating on the copper alloy contact enhances conductivity and provides corrosion resistance, which is crucial for reliable performance.
The country of origin for this terminal is India, indicating its manufacturing location.
