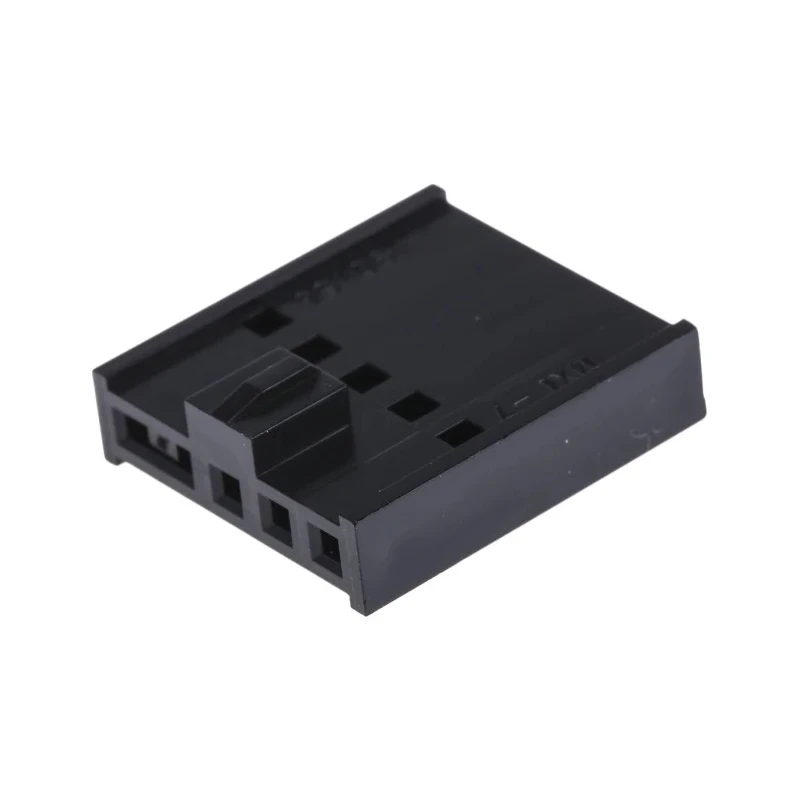

Molex C-Grid III Female Connector Housing 2.54 mm Pitch 5 Way 1 Row Straight 90156-0145
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 13.76mm |
| Width | 5.35mm |
| Mount Type | Cable |
| Housing Material | Polyphenylene Oxide |
| Series | C-Grid III |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| For Use With | C-Grid III Connector |
| Number of Contacts | 5 |
| Connector Gender | Female |
Key Features
- This connector housing is designed for use with C-Grid III connectors.
- It features a 2.54 mm pitch spacing for precise contact alignment.
- The housing material is durable polyphenylene oxide with a black finish.
- The design includes uniform locking on all contacts to ensure secure connections.
- It is ideal for various commercial and consumer electronic applications.
- The connector housing is compliant with DIN 41651 and HE13/14 standards.
- Its compact dimensions are 13.76 mm length by 5.35 mm width.
- The housing supports modular interconnection systems providing design flexibility.
Product Description
Molex 90156-0145 female connector housing is a high-quality electronic component designed for cable mounting using the C-Grid III interconnection system. With a 2.54 mm pitch and 5 contact positions arranged in 1 row, this housing provides reliable female connector functionality for a wide range of electronics assembly applications.
The housing is made from robust polyphenylene oxide material with a black finish, ensuring durability and stable performance under normal operating conditions. Its compact size of 13.76 mm length and 5.35 mm width allows usage in densely packed assemblies.
Featuring a uniform locking system across all contacts, it ensures secure electrical connections and easy integration into wire-to-board configurations. This connector housing supports modular design approaches and allows interchangeability within the C-Grid III series, catering to versatile commercial and consumer electronics markets.
Designed to meet DIN 41651 and HE13/14 standards, it balances performance and design flexibility for applications in industrial automation, consumer electronics, and electrical control systems.
This connector housing is designed for use with C-Grid III connectors. 2.54 mm pitch spacing ensures precise contact alignment. Manufactured from polyphenylene oxide for durability. Uniform locking system present on all contacts.
Compact dimensions suitable for dense assembly. Supports modular, flexible interconnection systems. Conforms to DIN 41651 and HE13/14 standards. Ideal for commercial and consumer electronics applications. Improves production efficiency when used in machinery wiring.
This Molex connector housing is an essential component in electronic assemblies requiring robust female cable connectors with modular system compatibility. Explore more Connector Housings and wire housing solutions on EnvMart to find the ideal fit for your industrial or commercial electronic designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 2.54 mm, ensuring precise contact alignment.
This model supports 5 contacts arranged in a single row.
The housing is made from polyphenylene oxide, which provides durability and stable performance.
The dimensions are 13.76 mm in length and 5.35 mm in width, making it suitable for dense assemblies.
This connector housing is designed for cable mounting.
Yes, it is compliant with DIN 41651 and HE13/14 standards.
The orientation of this connector housing is straight.
This connector housing belongs to the C-Grid III series.
This model supports a female connector gender.
It is ideal for various commercial and consumer electronic applications, including industrial automation and electrical control systems.
Yes, it includes a uniform locking system across all contacts to ensure secure connections.
The modular design allows for flexible interconnection systems and interchangeability within the C-Grid III series.
