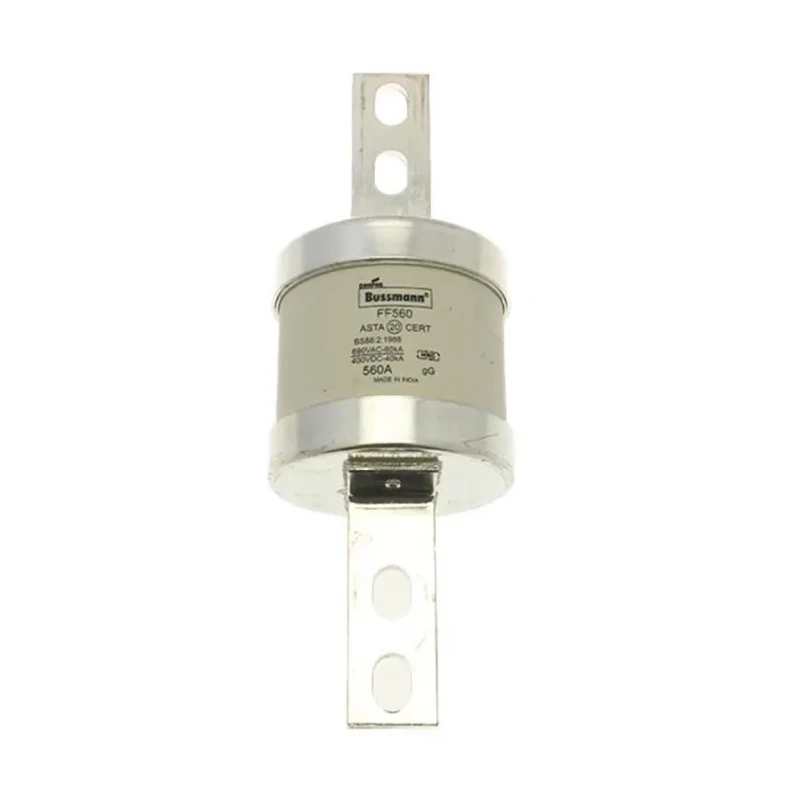

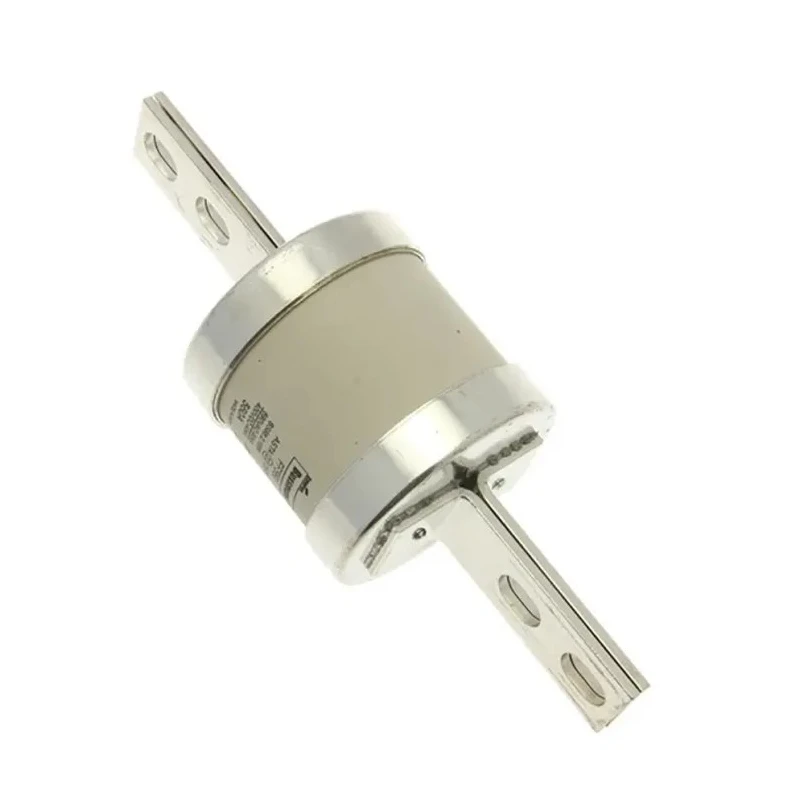

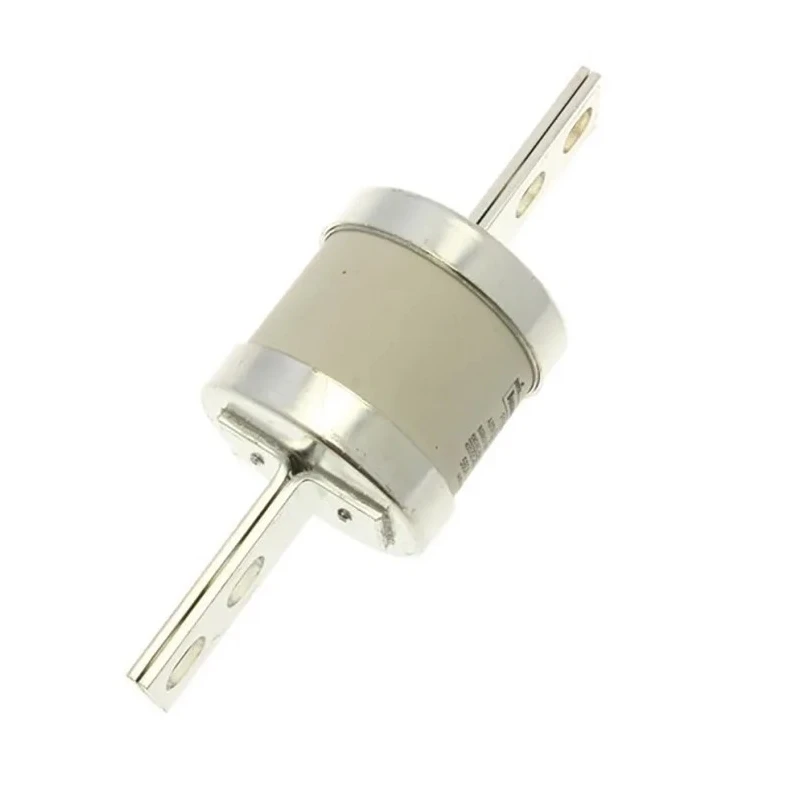

Eaton 560A Bolted Tag Fuse C2 550V AC, High Rupture Capacity, FF Series, 185 mm Fixing Centres FF560

Eaton FF560 bolted tag fuse C2 is engineered for the protection of general industrial applications such as power distribution and cable protection. This model supports a continuous current rating of 560A at 550V AC and DC up to 400V, delivering robust performance in low voltage electrical systems.

The fuse features a bolted tag design with fixing centres of 185 mm and a tag width of 25.4 mm, facilitating secure and convenient installation. Its high rupture capacity combined with the FF fuse speed rating provides excellent fault clearing capabilities, limiting let-through current and protecting downstream equipment effectively.

With overall dimensions of 210 mm length and 74 mm diameter, the Eaton FF560 fuse is compact yet powerful. It is certified to international standards including CE, IEC, and RoHS, ensuring compliance and safety in demanding industrial environments. The centered tag orientation aligns with industry norms for consistent mounting.

These fuses are part of Eaton's FF series and come with specialized design characteristics such as a 1:1:6 selective coordination ratio between minor and major fuses, enhancing system protection selectivity and minimizing downtime.

This fuse features a bolted tag design with 185 mm fixing centres for secure installation. It supports high rupture capacity to ensure reliable circuit protection. The fuse size is C2 with FF-speed rating for fast response under fault conditions.

Dimensions include 210 mm overall length and 74 mm diameter for compact form factor. Conforms to CE, IEC, and RoHS standards ensuring international quality and safety. Tag width is 25.4 mm and orientation is centered for standardized mounting.

Manufactured in India by Eaton, formerly known as Bussmann.

This Eaton bolted tag fuse is ideal for industrial, commercial, and electrical distribution systems, providing reliable and safe circuit protection. Browse more products in the Tag Fuses category to find complementary electrical protection solutions.
