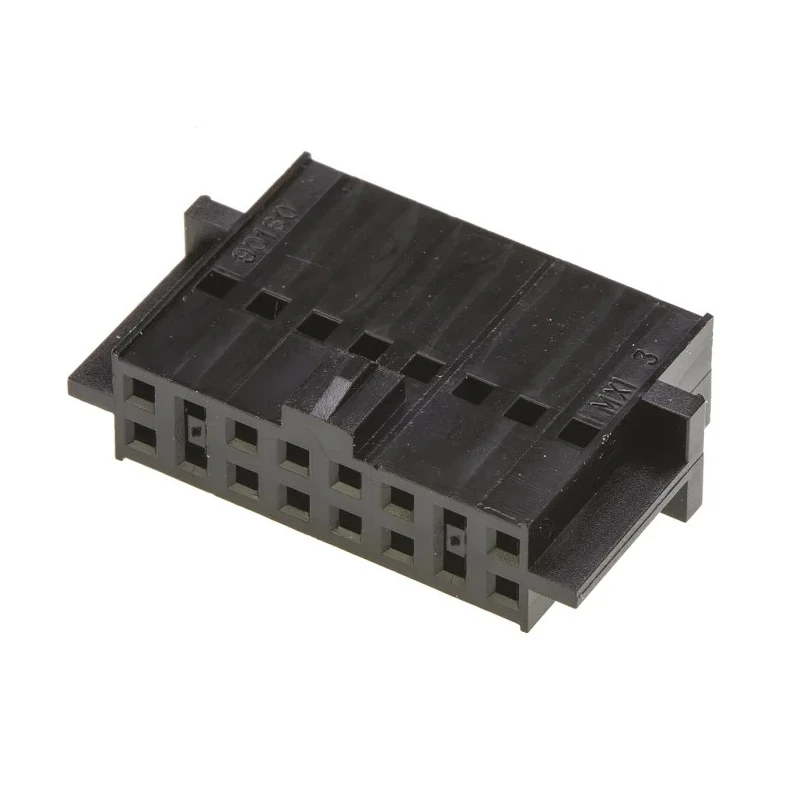

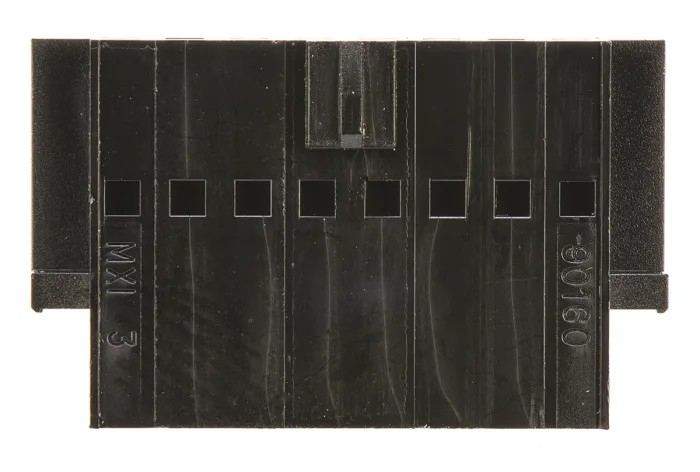

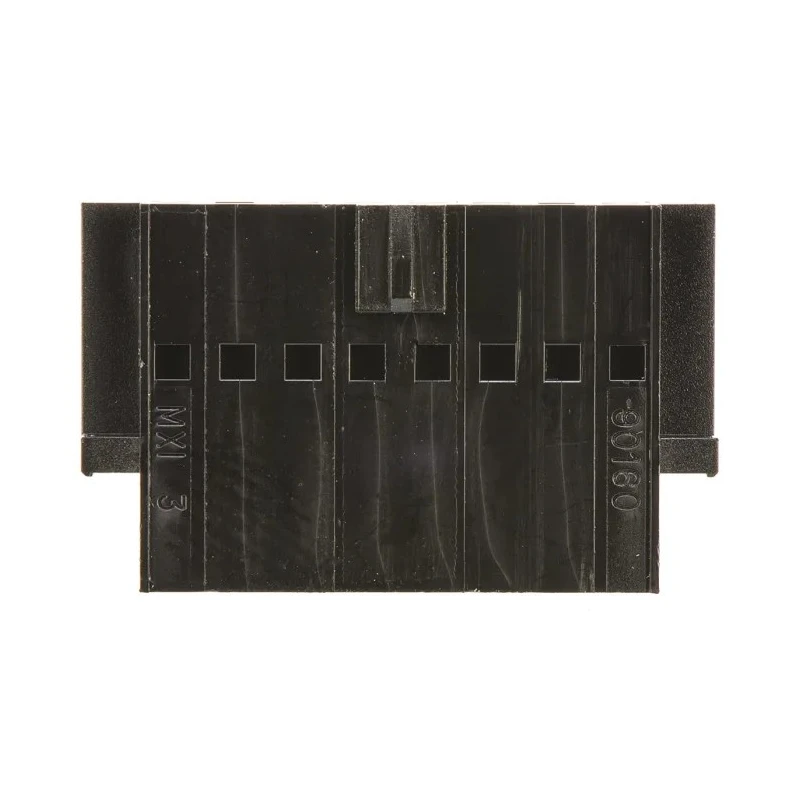

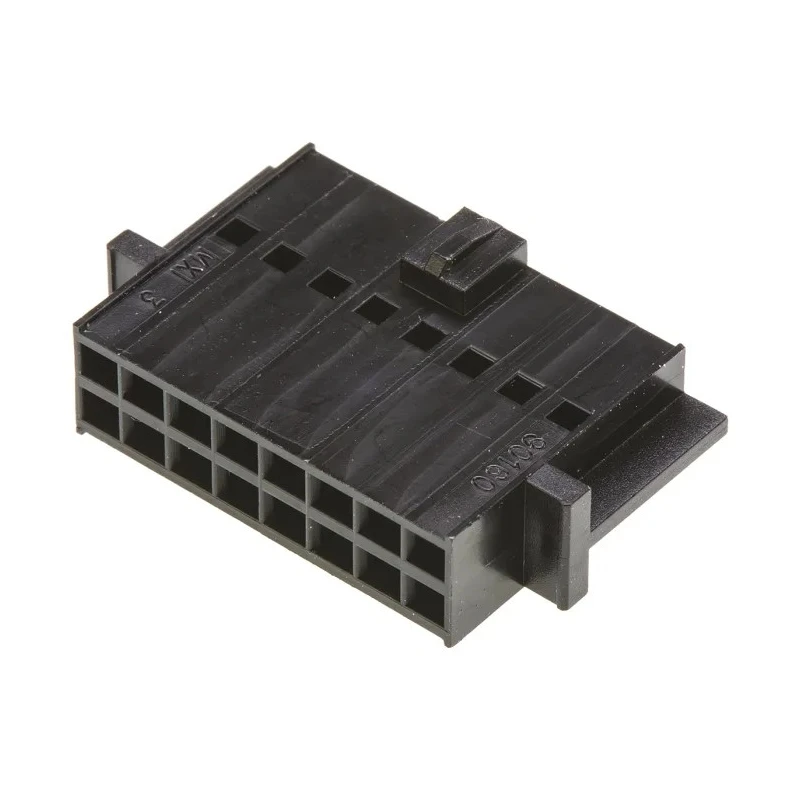

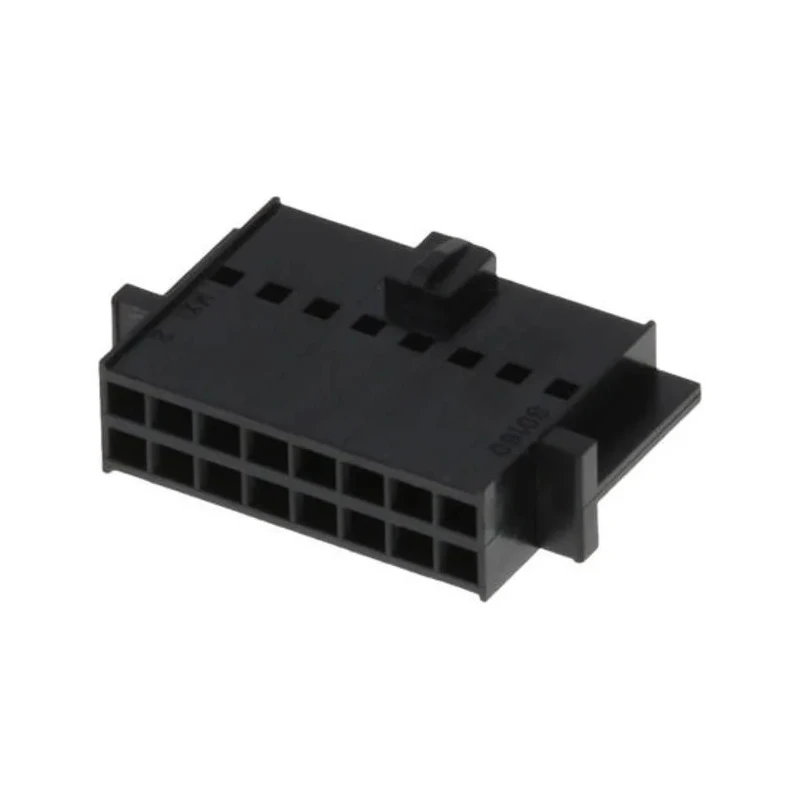

Molex C-Grid III Female Connector Housing 2.54 mm Pitch 16 Way 2 Row Straight 90160-0116
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 25.09mm |
| Width | 7.22mm |
| Mount Type | Cable |
| Housing Material | PBT |
| Series | C-Grid III |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| For Use With | C-Grid III Connector |
| Number of Contacts | 16 |
| Connector Gender | Female |
Key Features
- Features a 2-row straight design supporting 16 circuits for effective signal transmission.
- Constructed from durable PBT material ensuring resilience and long-term performance.
- Cable mount type allows easy integration within electronic assemblies.
- Operates reliably within a temperature range of -55°C to 105°C for versatile environments.
- Compatible with C-Grid III connectors, enhancing system versatility.
- Meets low-halogen environmental standards suitable for safe industrial use.
- Compact dimensions of 25.09mm length and 7.22mm width optimize space usage.
- Ensures secure electrical connections with female connector and 2.54 mm pitch spacing.
Product Description
Molex 90160-0116 is a female connector housing from the C-Grid III series, designed for cable mounting with a 2.54 mm pitch and 16-way contact arrangement organized in 2 rows. Built from robust PBT housing material, this connector housing offers excellent thermal stability and chemical resistance, making it suitable for a wide range of electrical and electronic applications.
This connector housing is engineered for dependable wire-to-board connections, commonly used in automation systems, electronic devices, and electrical projects requiring compact, reliable connections. Its straight orientation and dual-row design simplify installation and maintain secure signal integrity.
Operating effectively within a temperature range of -55°C to +105°C, the housing supports deployment in harsh and variable environments. The product complies with low-halogen standards, providing environmental safety in industrial contexts.
The Molex 90160-0116 connector housing is compatible with mating connectors such as Molex part numbers 90663 and 90635, allowing seamless integration into existing systems. It mates with the 5576, 5578, and 90130 series headers and uses the 90119 series terminals.
Key industrial applications span electronic component assemblies, automation, manufacturing, and electrical connectivity solutions where compact and durable housing is critical. Its compact size of 25.09 mm length and 7.22 mm width aids effective space management in complex assemblies.
Features a 2-row straight design supporting 16 circuits for effective signal transmission. Constructed from durable PBT material ensuring resilience and long-term performance. Cable mount type allows easy integration within electronic assemblies.
Operates reliably within a temperature range of -55°C to 105°C for versatile environments. Compatible with C-Grid III connectors, enhancing system versatility. Meets low-halogen environmental standards suitable for safe industrial use.
Compact dimensions of 25.09mm length and 7.22mm width optimize space usage. Ensures secure electrical connections with female connector and 2.54 mm pitch spacing. Explore more high-quality Connector Housings in the Electronics Components category on EnvMart for reliable industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch size of this connector housing is 2.54 mm, which ensures compatibility with various electronic assemblies.
This model supports 16 contacts, organized in a 2-row configuration for effective signal transmission.
The housing is constructed from durable PBT material, providing resilience and long-term performance in various applications.
It operates reliably within a temperature range of -55°C to +105°C, making it suitable for diverse environmental conditions.
This connector housing features a cable mount type, allowing for easy integration within electronic assemblies.
It is compatible with C-Grid III connectors, enhancing its versatility in various applications.
The dimensions are 25.09 mm in length and 7.22 mm in width, optimizing space usage in electronic assemblies.
The orientation of this connector housing is straight, which simplifies installation and maintains secure signal integrity.
It meets low-halogen environmental standards, making it suitable for safe industrial use.
It is designed for use in electronic component assemblies, automation systems, and electrical connectivity solutions.
This housing is compatible with the 90119 series terminals, ensuring reliable connections within electronic systems.
The country of origin for this connector housing is India, indicating where it is produced.
