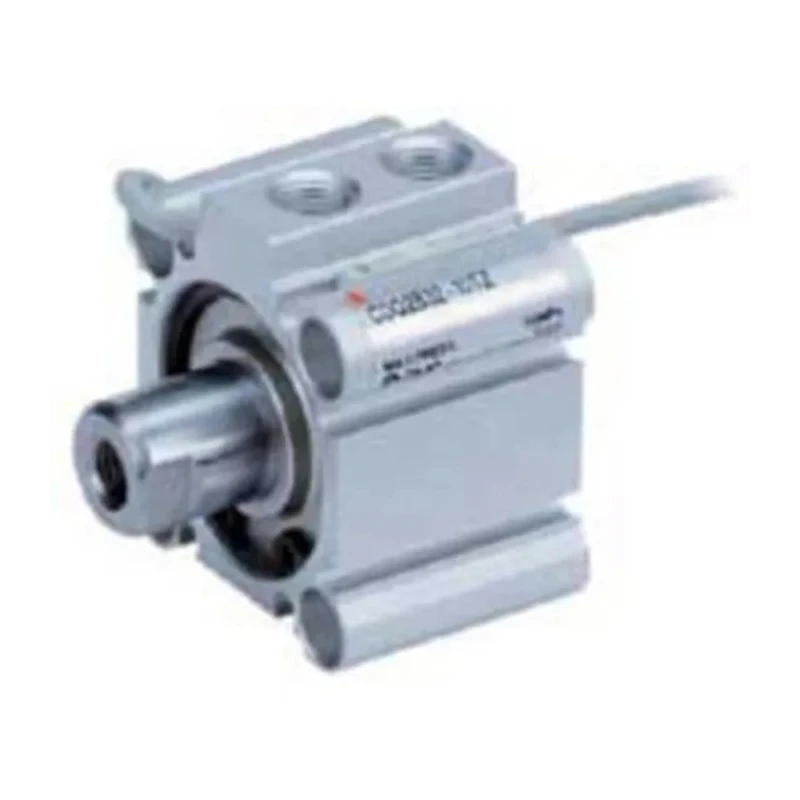

SMC Single Acting 10 mm Pneumatic Cylinder, Aluminium Alloy Body, Through Hole Mount CQ2B40-10SZ

SMC CQ2B40-10SZ is a single acting pneumatic cylinder designed for industrial fluid power and automation systems. It is part of the CQ2 series recognized for compactness and reduced weight. The cylinder features a 10 mm stroke length and a robust aluminium alloy body that enhances durability and corrosion resistance.

The through hole mount type facilitates easy installation and alignment in various pneumatic assemblies, making it suitable for manufacturing, automation, and material handling applications. Its piston rod has a female gender with metric threading, designed for compatibility with standard pneumatic fittings.

With a maximum operating temperature of 70°C, the CQ2B40-10SZ performs reliably in moderate heat environments, while the single acting action type simplifies control in systems requiring actuator return through external force like springs.

The cylinder supports a maximum piston speed of 500 mm/s, ensuring fast response times where quick actuation is required. The lightweight construction reduces machine weight and improves efficiency, contributing to energy savings and easier handling during installation.

The cylinder offers a compact and lightweight design with a 5-13% reduction in weight compared to previous models. Single acting action type for pneumatic applications requiring simple push or pull motion. Durable aluminium alloy body provides resistance to corrosion and wear.

Through hole mount type allows flexible mounting options in machinery. Female piston rod with metric thread standard for compatibility. Maximum operating temperature of 70 degrees Celsius suitable for typical industrial environments.

Maximum piston speed of 500 mm/s for efficient actuation. No industry-specific approvals or certifications indicated for this model.

This pneumatic cylinder is ideal for use in industrial automation, packaging machinery, assembly lines, and HVAC systems where controlled linear motion is critical. Its compact design helps save space and reduce total machine weight, enhancing system productivity.
