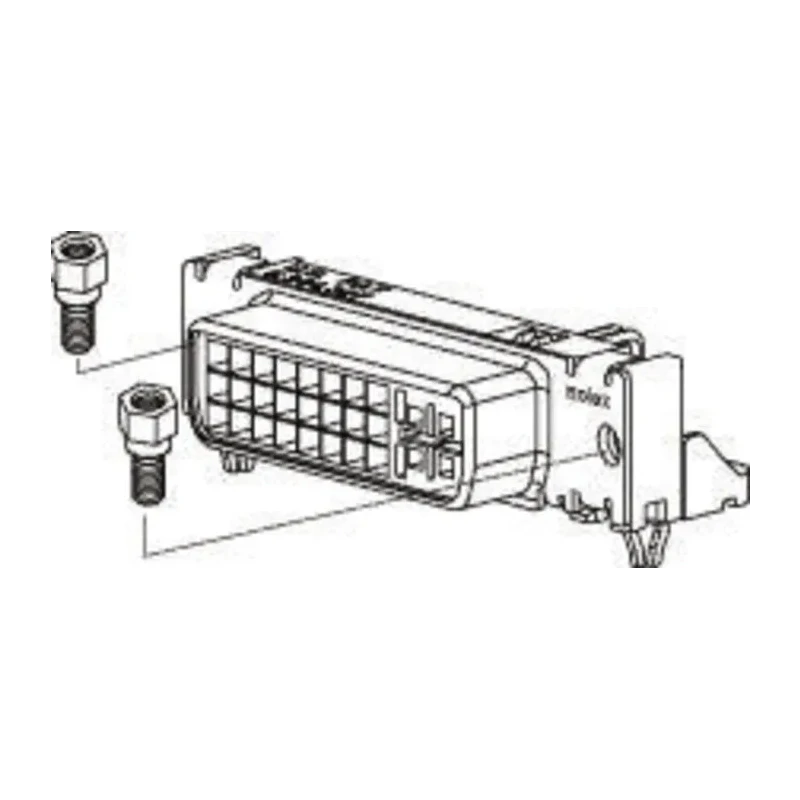

Molex 29 Way Right Angle 1.91 mm Pitch Through Hole D-Sub Connector Female 74320-9010
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 40V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | 74320 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -20°C |
| Pitch | 1.91mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 29 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | Standard |
Key Features
- The connector features a right-angle orientation ideal for board mounting.
- It uses a through-hole mounting type for secure attachment.
- Thermoplastic housing ensures durability and insulation.
- Contacts are made of copper alloy plated with gold over nickel for corrosion resistance.
- Suitable for operating temperatures from -20°C to 85°C.
- Designed with a 1.91 mm pitch between contacts for precise fittings.
- Compatible with wire-to-board applications in industrial electronics.
- The connector is female gender on both connector and contact sides for specific mating configurations.
Product Description
Molex 74320-9010 is a 29 Way Right Angle 1.91 mm Pitch Through Hole D-Sub Connector Female designed for demanding electronic component interconnects in industrial, manufacturing, and commercial applications.
The connector provides a reliable current rating of 3A and can operate safely up to 40V, supporting effective signal and power transfer. Its right-angle orientation and through-hole mount type facilitate robust mechanical stability and ease of integration on printed circuit boards.
The housing is constructed from thermoplastic materials, offering necessary insulation and resistance to environmental factors. Contacts are crafted from copper alloy and plated with gold over nickel to ensure excellent conductivity and corrosion protection, enhancing longevity.
This connector performs reliably in temperature ranges from -20°C to 85°C, making it suitable for various industrial environments. The precise 1.91 mm pitch between contacts accommodates compact board designs with high-density interconnections.
Molex's 74320 series includes these MicroCross™ DVI connectors and cable assemblies, which support both digital and analog video functions within one connector system. Ideal for wire-to-board receptacle applications, this connector series is a preferred choice in laboratory, telecommunications, manufacturing, and automation industries.
The connector features a right-angle orientation ideal for board mounting. It uses a through-hole mounting type for secure attachment. Thermoplastic housing ensures durability and insulation. Contacts are made of copper alloy plated with gold over nickel for corrosion resistance.
Suitable for operating temperatures from -20°C to 85°C. Designed with a 1.91 mm pitch between contacts for precise fittings. Compatible with wire-to-board applications in industrial electronics. The connector is female gender on both connector and contact sides for specific mating configurations.
The product is manufactured in China and is part of Molex's 74320 series. Explore the Molex 74320-9010 and similar D-Sub Connectors at EnvMart for your industrial electronic connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector has a reliable current rating of 3A, allowing it to effectively transfer power and signals in various applications.
The Molex 74320-9010 can operate safely at a maximum voltage of 40V, making it suitable for a range of electronic applications.
It features a 1.91 mm pitch between contacts, which accommodates compact board designs and high-density interconnections.
The housing is made of thermoplastic, while the contacts are crafted from copper alloy and plated with gold over nickel for corrosion resistance.
This connector is suitable for operating temperatures ranging from -20°C to 85°C, making it versatile for various industrial environments.
It uses a through-hole mounting type, which provides secure attachment and robust mechanical stability on printed circuit boards.
The connector features female gender on both the connector and contact sides, allowing for specific mating configurations.
It is designed for wire-to-board applications in industrial electronics, making it ideal for environments such as manufacturing and telecommunications.
The Molex 74320-9010 has a right-angle orientation, which is ideal for board mounting and helps in space-saving designs.
The Molex 74320-9010 is manufactured in China, ensuring compliance with international standards for electronic components.
It features a solder termination type, which is commonly used for secure and reliable connections in electronic assemblies.
This connector is designed with 29 contacts, allowing for multiple connections in a compact form factor.
