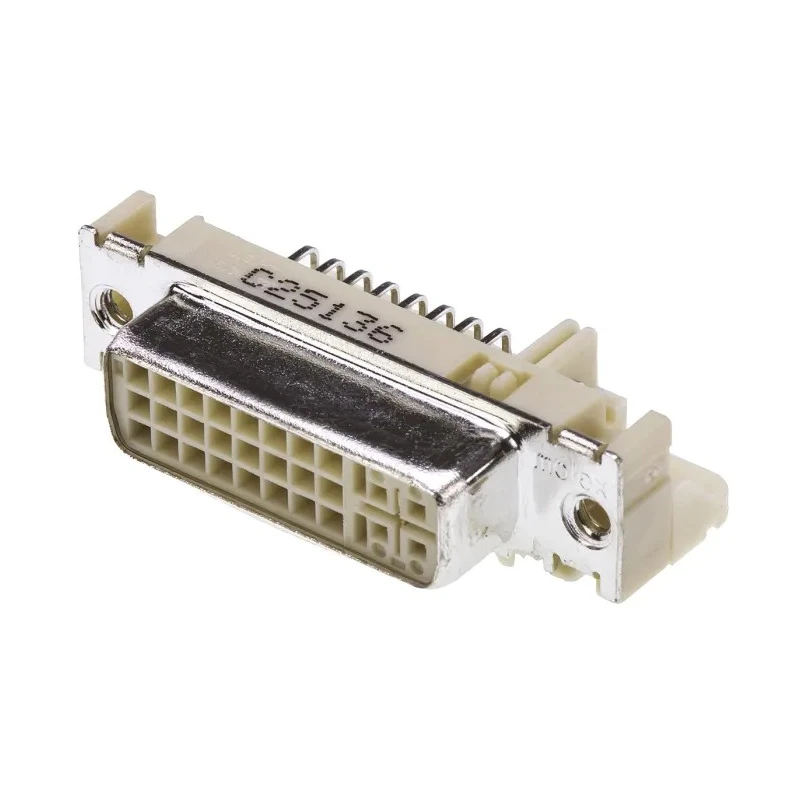

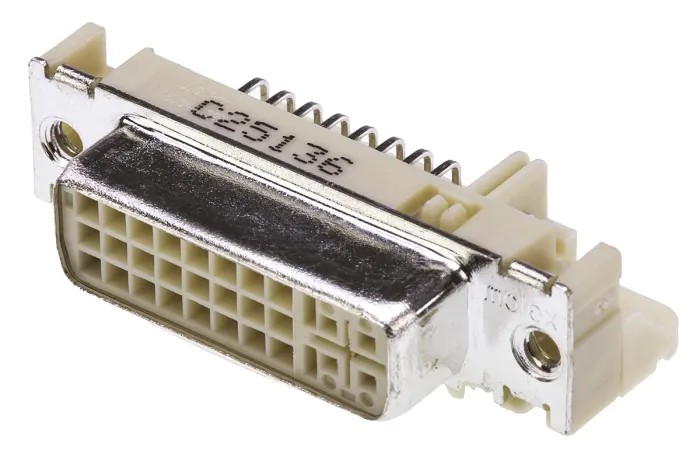

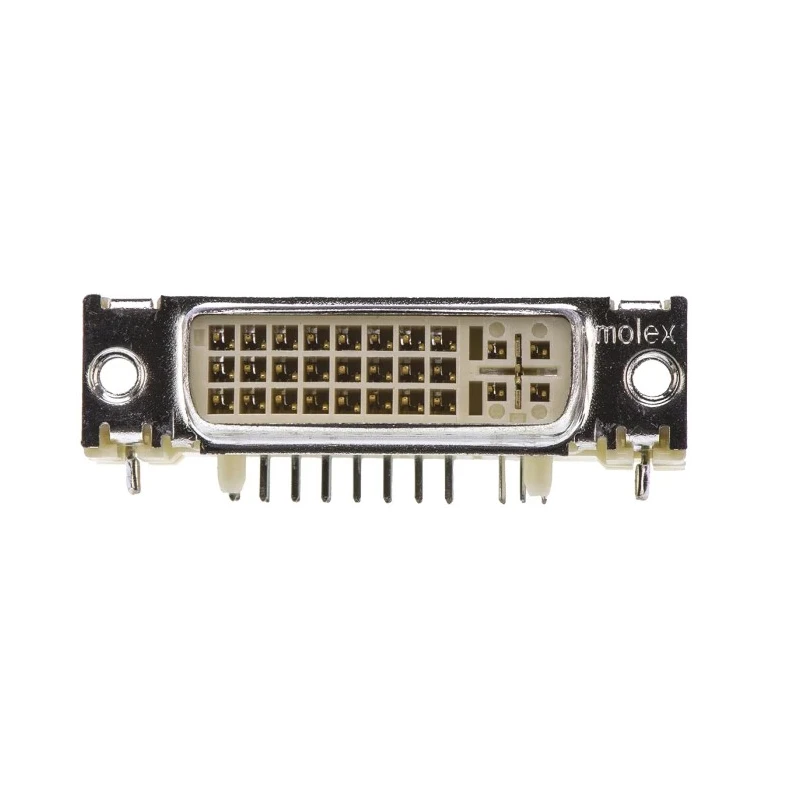

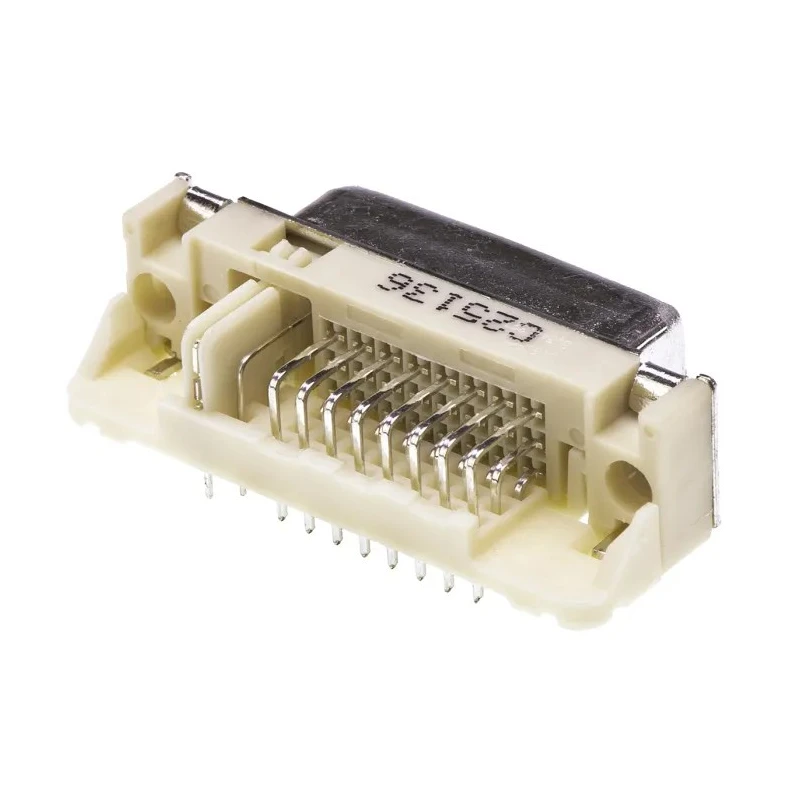

Molex D-Sub Connector 29 Way Right Angle 1.91 mm Pitch Through Hole Female 74320-1000
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 40V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polymer |
| Contact Material | Copper Alloy |
| Series | 74320 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -20°C |
| Pitch | 1.91mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 29 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | Standard |
Key Features
- The connector is designed with right angle orientation to fit in compact PCB layouts.
- It has 29 contacts ensuring multiple signal lines can be connected securely.
- Through hole mount type provides robust mechanical and electrical connections.
- Operating temperature ranges from -20°C to 85°C suitable for diverse environments.
- Contact plating of gold over nickel improves conductivity and corrosion resistance.
- Standard D-Sub connector compatible with 74323 series and other related assemblies.
- Contact gender is female, appropriate for mating with male counterparts.
- Ideal for use in electronic components and power connector applications.
Product Description
Molex 74320-1000 D-Sub Connector is a reliable and precise 29 way right angle female connector with a 1.91 mm pitch designed specifically for through hole mounting on printed circuit boards (PCB). It supports a maximum current of 3A and voltage rating of 40V, making it suitable for various electronic and power connector applications. The connector housing is made from durable polymer material that ensures electrical insulation and protects against environmental stress.
The contacts in this connector are constructed from copper alloy with a gold over nickel plating, which ensures excellent conductivity and corrosion resistance, providing long service life and stable signal transmission. Its design complies with the standard D-Sub connector dimensions and can mate perfectly with the 74323 series connectors and 88741 series cable assemblies.
This right angle connector features a solder termination type which gives a secure and strong connection to the PCB. It operates reliably within temperatures ranging from -20°C to 85°C, thus suitable for various industrial, electronic, and automation applications.
The use of MicroCross™ technology in this series improves high-speed electrical performance by utilising ground blades crossing. This connector supports both digital and analog video functions, making it versatile for different video and signal transmission applications in industrial, laboratory, manufacturing, and communication equipment.
29 way right angle female D-Sub Connector with 1.91 mm pitch. Through hole mount type for robust PCB connection. Copper alloy contacts plated with gold over nickel ensure conductivity and durability. Operating temperature from -20°C to 85°C.
Supports 3A current and 40V voltage rating. Compatible with related Molex 74323 series connectors. Polymer housing for insulation and durability. Suitable for industrial, electronic, and power connector applications. Manufactured in China with high quality control.
Explore more Molex connectors and electronic components on EnvMart to meet your industrial and manufacturing needs with trusted quality and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector is 1.91 mm.
It supports a maximum current of 3A.
The connector has a voltage rating of 40V.
It operates reliably within a temperature range of -20°C to 85°C.
This connector uses a through hole mount type for installation on PCBs.
The housing is made from polymer, and the contacts are constructed from copper alloy with gold over nickel plating.
Yes, it is compatible with the Molex 74323 series connectors and 88741 series cable assemblies.
The contact gender is female, suitable for mating with male connectors.
It features a solder termination type for a secure connection to the PCB.
This model has 29 contacts, allowing for multiple signal lines to be connected.
It is suitable for various electronic and power connector applications, including industrial and automation uses.
This connector is manufactured in China.
