XP Power ECS25US24 25W Switching Power Supply 24V DC, 264V AC, 1.04A Output ECS25US24

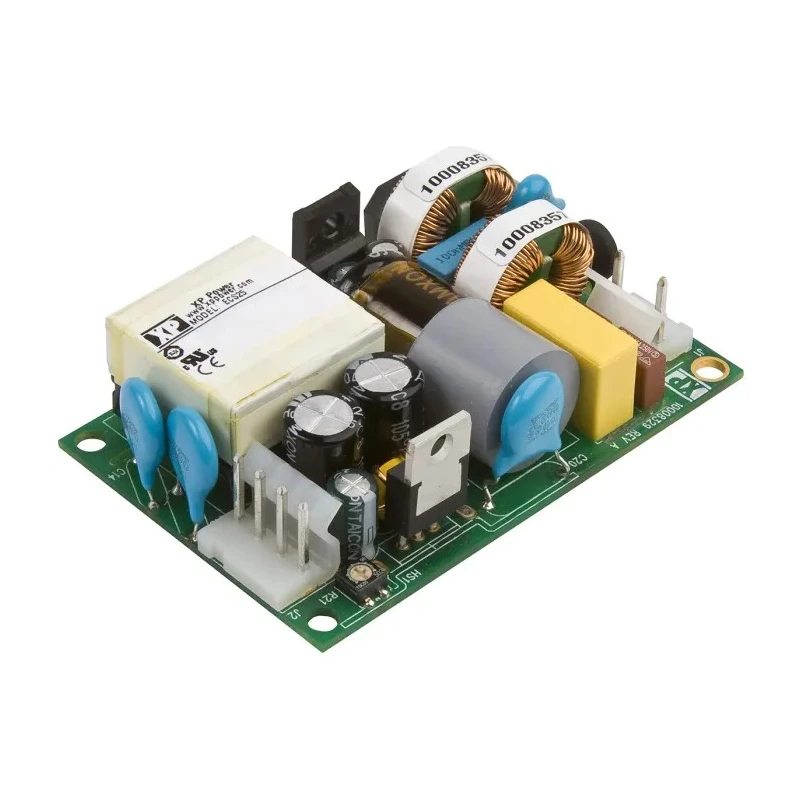

XP Power ECS25US24 Switching Power Supply is a high-quality, 25W open-frame AC-DC power supply designed primarily for industrial, laboratory, medical, and IT equipment requiring reliable 24V DC output power.

This compact unit features a slim chassis mount format measuring 76.2mm in length, 50.8mm in width, and 20.6mm in depth, facilitating integration where space constraints exist. Operating over a broad ambient temperature range from -20°C to +70°C, it ensures dependable performance even in challenging environments.

With a maximum input voltage rating of 264V AC and a minimum input voltage threshold of 120V DC (with 80V DC also supported), the ECS25US24 accommodates varied power sources. The single output line supplies 24V DC at a rated current of 1.04A with typical conversion efficiency of 90%, minimizing thermal losses and reducing operating costs.

This series is medically and IT-approved, certified to safety standards including UL 60950-1, EN 61000-3-2, CSA 22.2 No. 60950-1, and TUV 60601-1. These certifications guarantee low leakage currents and electromagnetic compatibility necessary for sensitive installations.

Its lightweight design of only 100 grams supports ergonomic equipment design and easy mounting. Low idle power consumption below 0.3W also supports energy-efficient system designs. The ECS25 series by XP Power is ideal for commercial, industrial, and medical device manufacturers requiring a robust power solution with reliable performance, safety certification, and small footprint.

Compact chassis mount design with 76.2mm length and 50.8mm width. High efficiency up to 90%, reducing power losses during operation. Wide operating temperature range from -20°C to +70°C for reliability in harsh environments.

Maximum input voltage of 264V AC supports versatile power sources. Low leakage current and under 0.3W no-load input power improve energy savings. Certified to multiple safety and EMC standards including UL and TUV for IT and medical compliance.

Lightweight at 100g, allowing easy integration into equipment. Single output channel delivering stable DC voltage for sensitive electronics. Explore more high-quality power supplies from XP Power in the Power Supplies category at EnvMart for reliable and efficient power management solutions.
