| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 2.5A |
| Gender | Female |
| Contact Material | Brass |
| Series | 4809 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| For Use With | KK 254 and KK Connector Housings |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 10 |

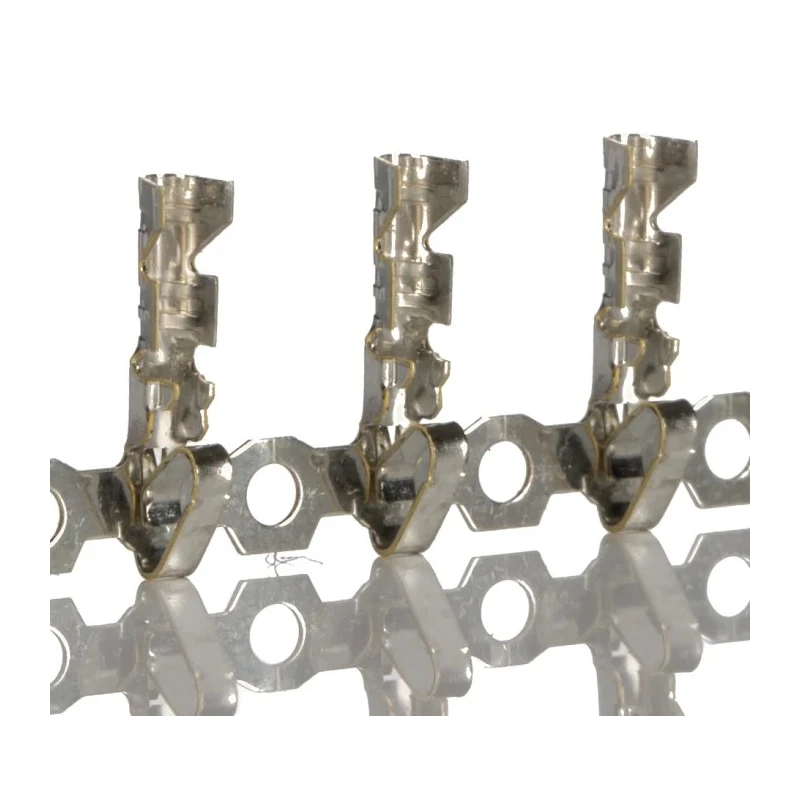

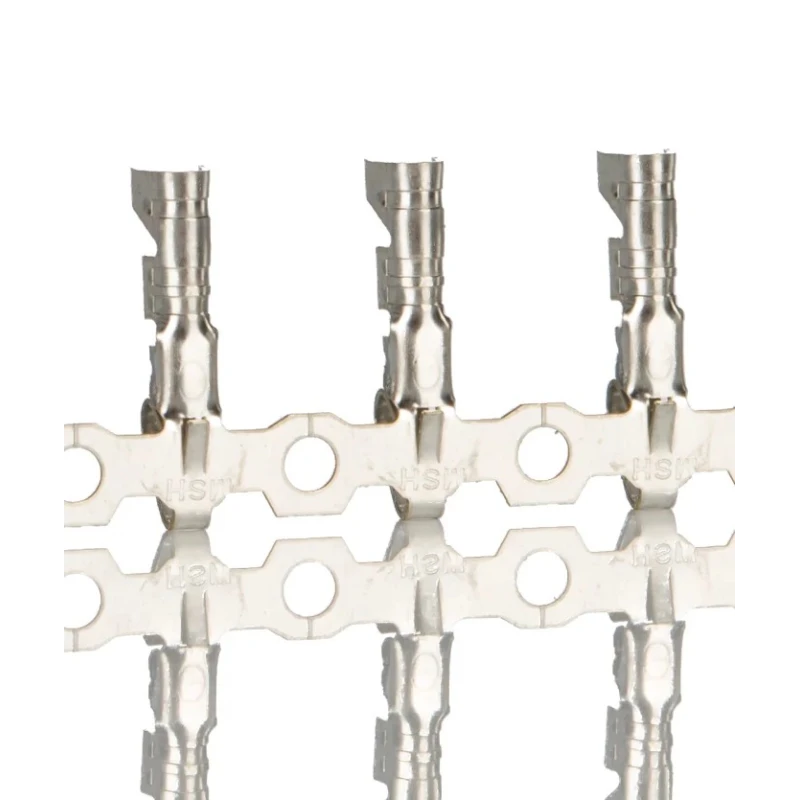

| Molex 4809 Series Female Crimp Terminal, 30 AWG Min Crimp, 22 AWG MaxBrand | Molex |
Molex 08-50-0031 4809 Series Female Crimp Terminal is a precision-engineered component designed for reliable electrical connections in printed circuit board (PCB) applications. Featuring a tin-plated brass contact, this crimp terminal ensures excellent conductivity and corrosion resistance. The terminal supports wire sizes ranging from 30 AWG minimum to 22 AWG maximum, making it versatile for various low-current wiring tasks.
With a current rating of 2.5 Amperes and a maximum operating temperature of 80°C, this terminal suits demanding industrial environments including electronic appliances, desktop and laptop computers, industrial control panels, medical devices, and automotive systems. The compact design with a 2.54 mm pitch facilitates integration into tight spaces while maintaining reliable electrical performance.
The lightweight 0.040 gram component minimizes strain on PCBs, enhancing mechanical integrity. The female crimp terminal is designed for compatibility with KK 254 series and KK connector housings, offering straightforward installation via hand crimping methods. Operating reliably between -40°C and 80°C, it withstands temperature extremes common in industrial and automotive applications.
This product supports the creation of sound circuits and quality linkages in electrical and electronic systems and is primarily used for board-to-board and wire-to-board connections. It is an essential component in prototype development and manufacturing for electronic assemblies requiring durable and precise termination solutions.
Rated for 2.5A current capacity for dependable electrical performance. Tinned brass contact material ensures corrosion resistance and conductivity. Supports wire sizes from 30 AWG to 22 AWG for wiring versatility. Compact 2.54 mm pitch suitable for space-saving PCB layouts.
Lightweight design reduces mechanical stress on assemblies. Compatible with KK 254 and KK connector housings for PCB integration. Operates across a wide temperature range from -40°C to 80°C. Provides low contact resistance enhancing signal quality.
Molex components are trusted for their quality and performance in the electronics and electrical industries. Explore a complete range of high-quality connectors on EnvMart to meet your assembly and prototyping requirements.
Explore more products in our Crimp Contacts category.
