| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Current | 6.5A |
| Length | 2.03mm |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | SL-156 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | SL-156 Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.9mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 3mΩ |

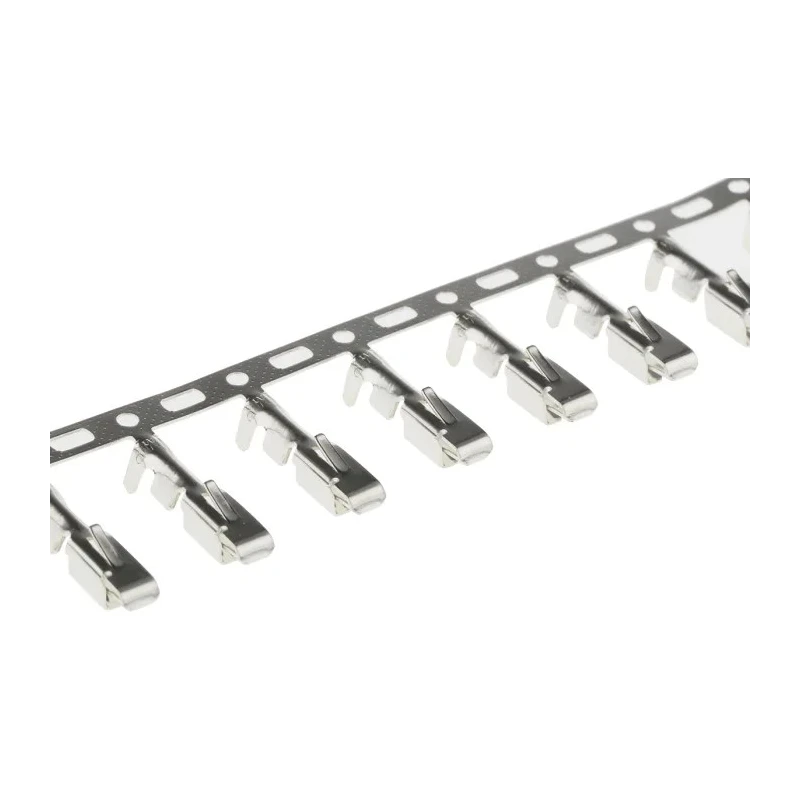

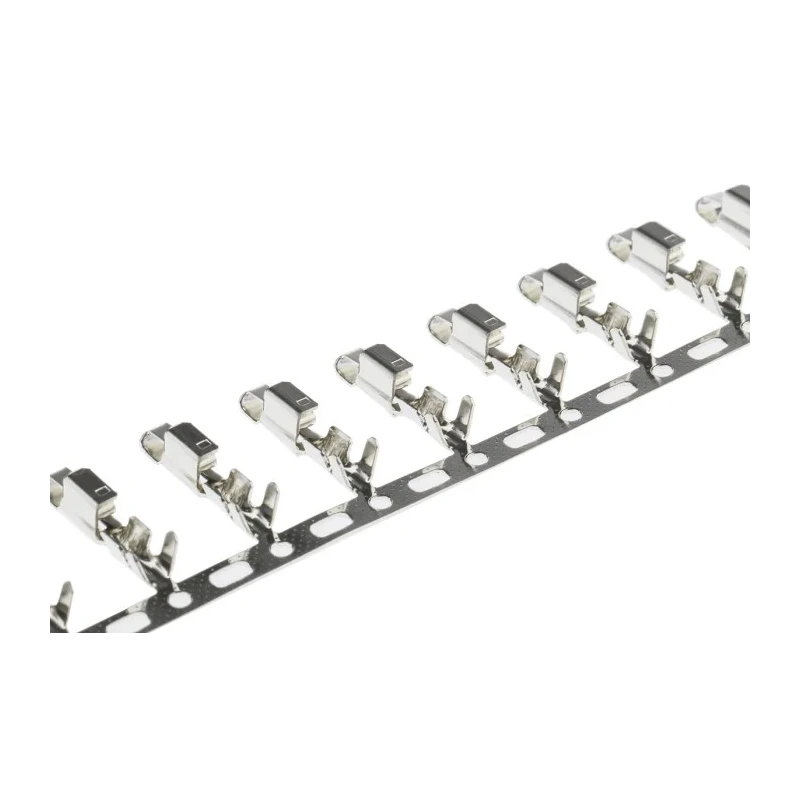

TE Connectivity 3-770476-1 Female Crimp Terminal from the SL-156 Series is engineered for high-performance electrical connectivity applications. It is specifically designed for use with SL-156 connector housings, accommodating wire sizes between 24 AWG (0.2 mm²) and 18 AWG (0.9 mm²). This crimp terminal supports currents up to 6.5 Amperes and features a tin plating over phosphor bronze contact material to ensure excellent conductivity and corrosion resistance while providing durability in demanding environments.
Its crimp termination type facilitates a secure and reliable mechanical and electrical connection, making it well-suited for electronics manufacturing, industrial automation, and electrical assembly tasks. The terminal operates reliably in extreme temperature ranges from -55°C to 105°C, supporting diverse environmental conditions.
With a compact contact length of 2.03 mm, it offers precise fitment in connector assemblies, essential for maintaining signal integrity and secure connections in PCB connectors and wire housing systems.
While there are no specific certifications or approvals attached to this terminal, its US manufacturing origin underscores adherence to rigorous quality control practices. The terminal unit is female gender, compatible with the SL-156 connector housing system.
Tin plating provides protection from oxidation and assures long-term electrical performance. Robust contact material and construction facilitate stable current flow up to 6.5A. Designed for harsh industrial and electronic component applications.
Length and wire size compatibility optimized for common wiring standards. Absence of specific certificate approvals but suitable for general use. Ideal for industrial tools, electronic component manufacturing, and automation sectors.
Environmentally, this crimp terminal supports wide temperature variation, making it versatile for commercial and manufacturing uses. Explore additional TE Connectivity products on EnvMart for further electrical connectivity solutions optimized for industrial and laboratory applications.
Explore more products in our Crimp Contacts category.
