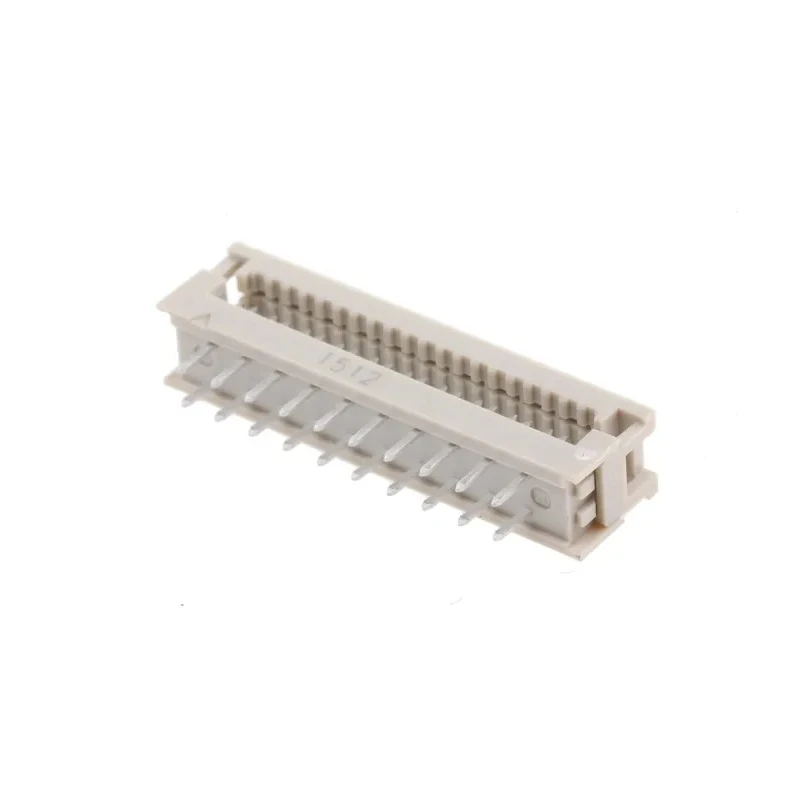

HARTING 20-Way Shrouded Male IDC Connector 2 Row Through Hole Mount 320V AC 1A SEK 18 09181209622

HARTING 09181209622 is a 20-way shrouded male IDC connector designed for through hole mounting on PCBs, operating at 320V AC with a current rating of 1A. This connector features 20 contacts arranged in 2 rows, with a pitch of 2.54 mm, making it well-suited for compact electronic assemblies requiring reliable electrical connections.

The housing is made from high-quality polybutylene terephthalate, providing durability and heat resistance, while the contacts are composed of copper alloy with tin plating for enhanced conductivity and corrosion protection. The connector supports operating temperatures ranging from -55°C to 105°C, ensuring reliable performance under various environmental conditions.

This IDC connector is terminated by solder pins, sized 0.635 x 0.3 mm, and designed for straight orientation mounting through PCB holes. It is compatible with flat cables having a pitch of 1.27 mm and AWG 28/7 conductors, supporting efficient wire-to-board connections needed in industrial and commercial electronic applications.

Its low-profile design, at 5.5 mm height, supports space-saving installations in electronic devices. As a product of the SEK 18 series, this connector adheres to HARTING’s standards for quality and reliability, making it ideal for applications in electrical components, power systems, and connector assemblies.

The connector is manufactured in China and supplied new, suitable for industries such as industrial automation, electrical equipment manufacturing, and instrumentation. Set your designs apart with this precision-engineered HARTING 20-way IDC Connector, ensuring consistency and long-term durability in demanding electrical environments.

Features a low-profile design with 5.5 mm height for compact PCB integration. Provides 20 contacts arranged in 2 rows with 2.54 mm pitch. Constructed with durable polybutylene terephthalate housing and copper alloy contacts.

Contacts are tin-plated to ensure reliable connectivity and corrosion resistance. Suitable for operating temperatures from -55°C to 105°C. Termination type is solder with straight orientation for through hole PCB mounting.

Designed for flat cable IDC with 1.27 mm pitch compatible with AWG 28/7 wires. Connector gender is male, with shrouded protection for secure connection. Complies with industrial applications requiring robust and reliable IDC connections.

Manufactured in China and part of the SEK 18 series from HARTING. Explore more precision connectors and electronic components at EnvMart for your industrial, laboratory, manufacturing, or commercial needs.
