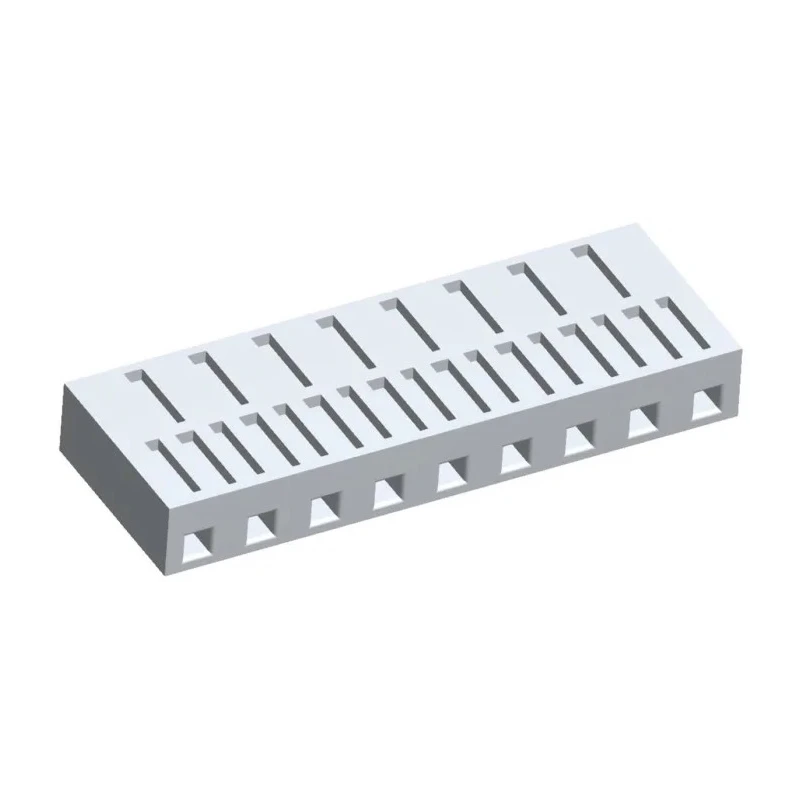

Molex KK Female Connector Housing 5.08 mm Pitch 9 Way 1 Row Straight 10-01-1094
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 45.72mm |
| Width | 6mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | KK |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| For Use With | KK Connector |
| Number of Contacts | 9 |
| Connector Gender | Female |
Key Features
- Constructed from UL94V-2 nylon material for enhanced durability and insulation.
- Compatible with KK 2478 (18-24 AWG), KK 2578 (22-26 AWG), and KK 2878 (18-20 AWG) crimp terminals.
- Designed to mate with Molex KK 3003 PCB header connectors for secure connections.
- Features a straight orientation with a single row configuration to simplify assembly.
- Measures 45.72 mm in length and 6 mm in width ensuring precise fitment.
- Utilizes the 5.08 mm pitch standard to provide greater creepage and clearance distances.
- Part of the economical and versatile Molex KK 3001 series connector system.
- Offers improved production efficiency with ready-to-insert housing design.
Product Description
Molex 10-01-1094 KK Female Connector Housing is an integral cable-mount component from the Molex KK 3001 series offering 9 contacts with a 5.08 mm pitch. Its single-row straight design is made from durable UL94V-2 nylon, ensuring reliability and insulation within demanding industrial and electronic applications.
This connector housing is compatible with KK 2478, KK 2578, and KK 2878 series crimp terminals, supporting a range of wire gauges (18-24 AWG, 22-26 AWG, and 18-20 AWG respectively). It securely mates with the KK 3003 PCB header connectors, facilitating efficient wire-to-board interconnect solutions.
With dimensions of 45.72 mm length by 6 mm width, it offers straightforward installation while meeting standards for clearance through its 5.08 mm pitch. The Connector Housing supports enhanced creepage distances for superior electrical safety in complex equipment.
Engineered for applications in industrial electronics, manufacturing equipment, and electrical assemblies, this component contributes to streamlined production processes by providing a ready-to-use form factor that improves insertion efficiency.
Durable UL94V-2 nylon construction assures insulating reliability. Compatible with multiple KK crimp terminal series for wire gauge flexibility. Designed for secure mating with KK 3003 PCB header connectors. Straight single-row orientation simplifies wiring setups.
Precise length and width dimensions ensure proper fit and alignment. 5.08 mm pitch enables increased creepage and clearance distances. Integral part of the economical and easy-to-use Molex KK interconnect system. Ideal for electronics industrial manufacturing and assembly applications.
Explore more advanced connector solutions and components by browsing the Electronics & Electricals category at EnvMart for industry standard Molex parts and other branded connectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 5.08 mm, which allows for greater creepage and clearance distances.
This model supports 9 contacts, making it suitable for various interconnect applications.
The dimensions of the housing are 45.72 mm in length and 6 mm in width, ensuring precise fitment during installation.
It is constructed from UL94V-2 nylon material, which provides enhanced durability and insulation.
This connector housing is compatible with KK 2478 (18-24 AWG), KK 2578 (22-26 AWG), and KK 2878 (18-20 AWG) crimp terminals.
The orientation of this connector housing is straight, designed for easy assembly and installation.
It utilizes cable mounting, making it suitable for various cable interconnections.
Yes, it is part of the economical and versatile Molex KK 3001 series connector system.
The gender of this connector housing is female, designed to mate with corresponding male connectors.
It is engineered for applications in industrial electronics, manufacturing equipment, and electrical assemblies.
Its ready-to-insert design improves production efficiency by simplifying the assembly process.
The country of origin for this connector housing is India.
