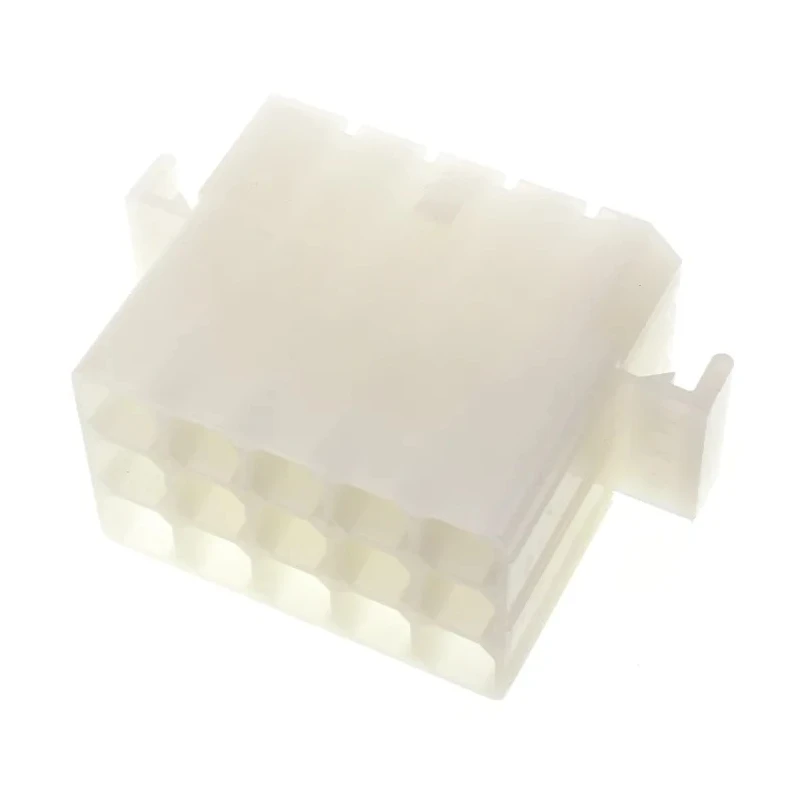

Molex STANDARD 0.093 in Female Connector Housing 2.36 mm Pitch 15 Way 3 Row Straight 19-09-1151
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 35.3mm |
| Width | 27.9mm |
| Mount Type | Panel Mount |
| Housing Material | Nylon |
| Series | STANDARD 0.093 in |
| Number of Rows | 3 |
| Pitch | 2.36mm |
| For Use With | Pin & Socket Receptacle |
| Number of Contacts | 15 |
| Connector Gender | Female |
Key Features
- Constructed from durable 94V-2 nylon housing material ensuring reliable insulation.
- Features positive locking and fully isolated terminals for secure connections.
- Polarized design to prevent incorrect mating during installation.
- Compatible with male pin and female socket standard 0.093" terminals.
- Ideal for medium power use in consumer devices and data communications equipment.
- Panel mount straight orientation for easy integration into systems.
- Manufactured in the United States to high-quality standards.
Product Description
Molex 19-09-1151 STANDARD 0.093 in Female Connector Housing is a high-quality electronic connector housing designed with a 2.36 mm pitch and 15-way, 3-row straight configuration. It supports panel mount installations and is made from 94V-2 rated nylon ensuring electrical insulation and durability for demanding industrial environments.
This connector housing includes positive locking mechanisms and fully isolated terminals to provide secure and reliable electrical connections. Its polarized design prevents incorrect mating, enhancing safety and ease of assembly during installation and maintenance. The housing accepts industry-standard .093-inch male pin and female socket terminals, commonly used across medium power applications.
With compact dimensions of 35.3 mm length and 27.9 mm width, this connector integrates well into consumer electronics like refrigerators and microwave ovens, as well as data communication devices including desktop computers, motherboards, and hard disk drives.
The housing’s panel mount and straight orientation facilitate installation within electronic assemblies, providing a robust interface for pin and socket receptacles. Manufactured in the United States, the product upholds stringent quality and material standards appropriate for industrial, laboratory, and manufacturing environments.
Durable nylon housing material rated 94V-2 for electrical insulation. Positive locking and fully isolated terminals ensure connection security. Polarized design prevents improper mating. Compatible with 0.093-inch male pin and female socket terminals.
Compact size supports diverse applications in consumer and communication equipment. Panel mount, straight orientation for convenient assembly. Manufactured in the United States to exacting standards.
This Molex connector housing is an optimal choice for professionals seeking reliable, efficient connectors in electronic component assemblies. Explore EnvMart’s comprehensive selection of Connector Housings and electronic components to meet your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 2.36 mm.
It supports 15 contacts in a 3-row configuration.
The housing is constructed from 94V-2 rated nylon, ensuring reliable electrical insulation.
The dimensions of the housing are 35.3 mm in length and 27.9 mm in width.
Yes, it is designed for panel mount installations with a straight orientation.
It is compatible with standard 0.093-inch male pin and female socket terminals.
This model includes positive locking mechanisms and fully isolated terminals for secure connections.
It is manufactured in the United States to high-quality standards.
It is ideal for medium power use in consumer devices and data communications equipment.
The polarized design of the housing prevents incorrect mating during installation.
Its compact size allows for integration into various consumer electronics and data communication devices.
The orientation of this connector housing is straight, facilitating easy integration into systems.
