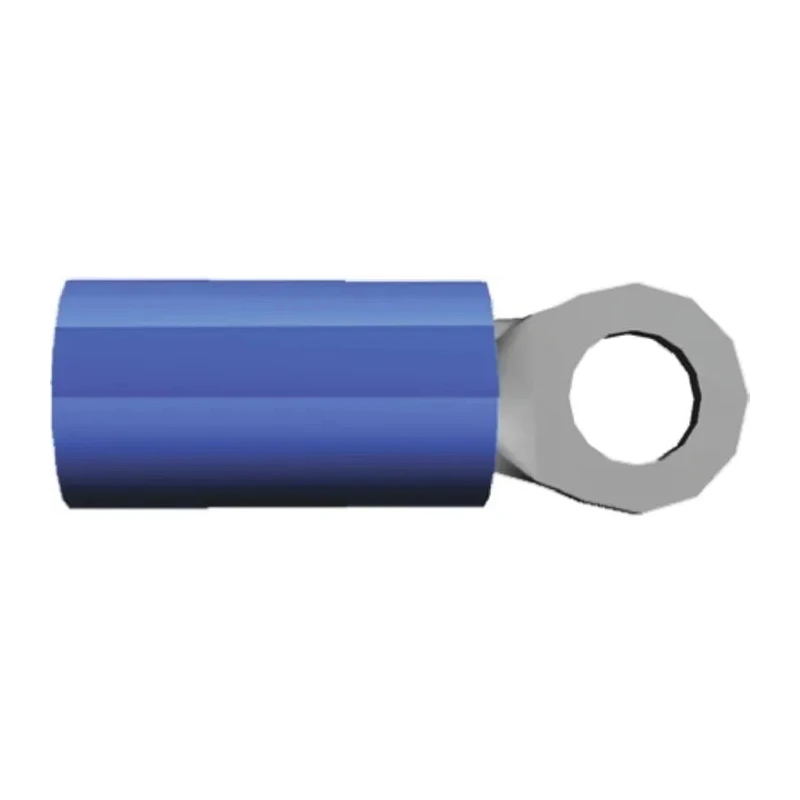

TE Connectivity PIDG Insulated Ring Terminal M3.5 Stud Size 16 AWG 14 AWG Wire Size Blue 2-320561-3

TE Connectivity 2-320561-3 PIDG Insulated Ring Terminal features an M3.5 stud size and supports wire sizes from 16 AWG to 14 AWG, with a robust blue nylon insulation sleeve providing clear wire size identification. This ring terminal is engineered with a precision-formed high conductivity copper body and barrel, ensuring excellent electrical performance and durability.

The copper sleeve enveloping the wire barrel enhances insulation support and prevents wire fraying. Inside the barrel, serrations provide superior contact and tensile strength following crimping. The funnelled wire entry design facilitates quick and secure wire insertion, ideal for high-speed production environments.

These terminals conform to the PIDG (Pre-Insulated Diamond Grip) series known for delivering uniform and reliable crimps in demanding electrical circuits. The colour coded nylon sleeve aids in efficient wire size and tooling identification while the construction ensures consistent performance across various applications.

Applications include use in instrumentation and control systems, lighting circuits, power supplies, panel boxes, transportation equipment, lifting devices, motors, aerospace technology, and household appliances. The terminals meet RoHS compliance, ensuring environmental and safety standards are adhered to.

Constructed with high conductivity copper body for reliable electrical connection. Copper sleeve enhances wire insulation support and prevents fraying. Serrated wire barrel ensures maximum contact and tensile strength after crimping.

Colour coded blue nylon insulation sleeve for easy wire size identification. Funnelled wire entry allows fast and easy wire insertion during high-speed production. Suitable for applications in instrumentation, control, lighting, power supplies, and transportation.

Meets RoHS standards for environmental compliance. Designed to provide a uniform and reliable crimp using specialized tool dies.

This TE Connectivity PIDG Insulated Ring Terminal is ideal for industrial, commercial, and manufacturing electrical systems requiring reliable connections with efficient installation. Browse our full range of wire terminals and electrical components on EnvMart to find compatible accessories and complementary products.
