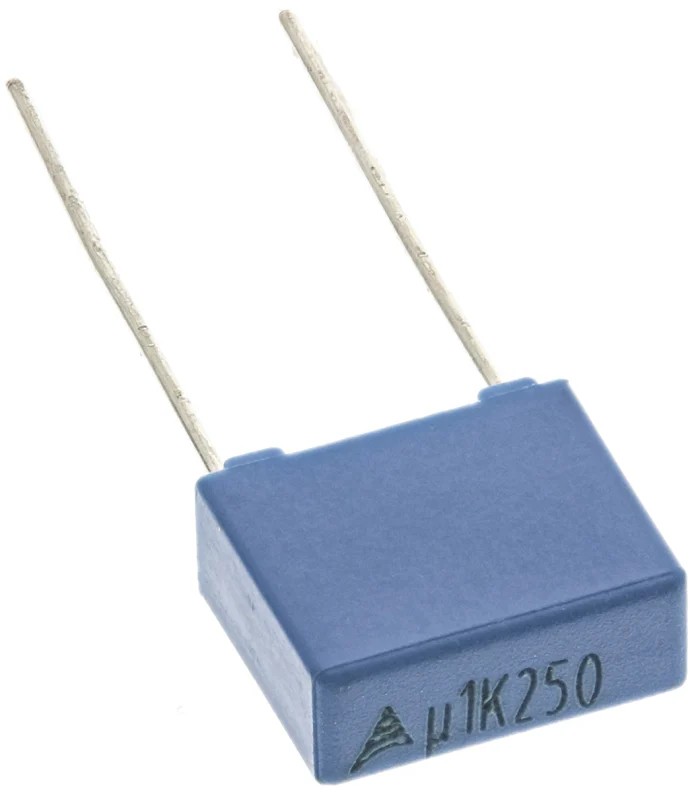

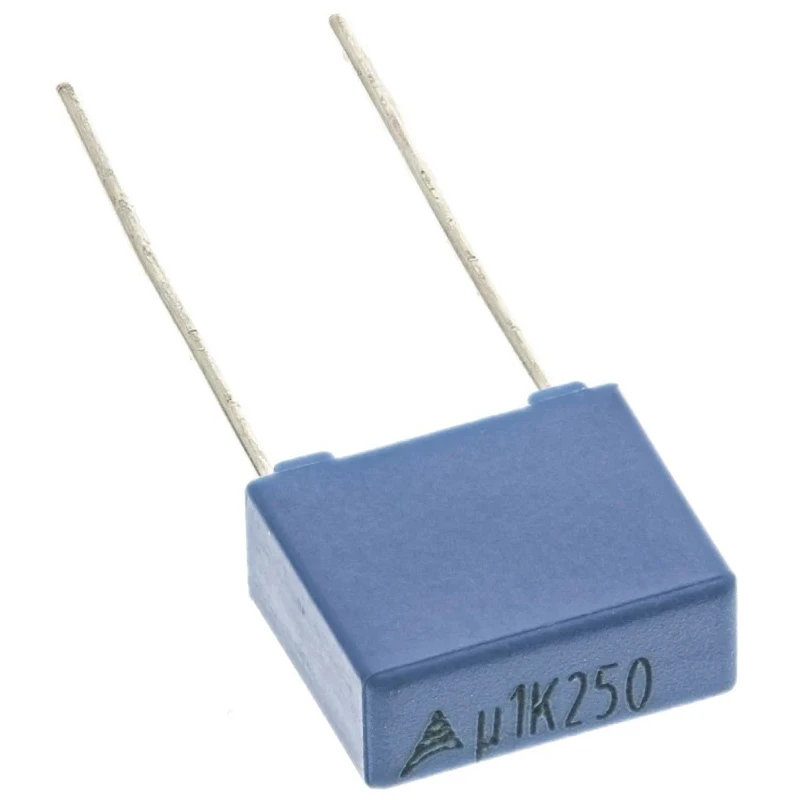

TDK B32520 Film Capacitor 100nF 160V AC 250V DC Through Hole 2 Pin Pitch 7.5mm B32520C3104K189

Free Delivery in India | Lowest Global Shipping Charges

TDK B32520 Film Capacitor 100nF 160V AC 250V DC Through Hole 2 Pin Pitch 7.5mm B32520C3104K189



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	8.5mm
Length	10mm
Model	B32520C3104K189
Width	4mm
Mount Type	Through Hole
Series	B32520
Maximum Operating Temperature	125°C
Capacitance	100nF
Standards/Approvals	RoHS, UL
Pin Count	2
Rated AC Voltage	160V ac
Rated DC Voltage	250V dc
Lead Pitch	7.5mm
Lead Diameter	0.5mm
Dielectric	Polyethylene Terephthalate (Polyester)
Automotive Standard	AEC-Q200 Rev D

Key Features

Capacitance value is 100 nanofarads suitable for various electronic applications.
Rated AC voltage of 160 volts and DC voltage of 250 volts provides durability and reliability.
Constructed with Polyethylene Terephthalate (Polyester) dielectric material for stability.
Lead pitch is 7.5 millimeters with a pin count of two for through hole mounting.
Maximum operating temperature is 125 degrees Celsius ensuring performance under heat.
Compact size with length of 10 mm, width of 4 mm, and height of 8.5 mm.
Compliance with automotive standard AEC-Q200 Rev D and certifications RoHS and UL.
Plastic case with UL 94 V-0 rating and epoxy resin sealing enhances safety and pulse strength.

Product Description

TDK B32520C3104K189 film capacitor is a high-quality electronic component designed for industrial, automotive, and general electronic applications. Featuring a capacitance of 100 nanofarads, it operates reliably at rated AC voltage of 160 volts and DC voltage of 250 volts. The capacitor is packaged in a durable through hole mount style with 2 pins spaced at a 7.5 millimeter pitch, facilitating easy PCB integration.

Constructed with Polyethylene Terephthalate (Polyester) dielectric material, this capacitor offers excellent electrical stability and temperature endurance with a maximum operating temperature of 125 degrees Celsius. Its compact dimensions of 10 mm length, 4 mm width, and 8.5 mm height make it suitable for tight spaces. The plastic case is UL 94 V-0 rated, and epoxy resin sealing provides robust protection against environmental factors.

This model complies with the automotive standard AEC-Q200 Revision D and carries RoHS and UL approvals, ensuring quality and reliability. It features high pulse strength and contact reliability to perform in demanding conditions typically found in automotive and industrial settings.

Its compact, reliable design makes the TDK B32520C3104K189 Film Capacitor suitable for circuit filtering, noise reduction, and signal processing tasks in electronics manufacturing, automotive systems, and power management circuits.

Capacitance value is 100 nanofarads suitable for various electronic applications. Rated AC voltage of 160 volts and DC voltage of 250 volts provides durability and reliability. Constructed with Polyethylene Terephthalate (Polyester) dielectric material for stability.

Lead pitch is 7.5 millimeters with a pin count of two for through hole mounting. Maximum operating temperature is 125 degrees Celsius ensuring performance under heat. Compact size with length of 10 mm, width of 4 mm, and height of 8.5 mm.

Compliance with automotive standard AEC-Q200 Rev D and certifications RoHS and UL. Plastic case with UL 94 V-0 rating and epoxy resin sealing enhances safety and pulse strength. Offers high contact reliability suitable for industrial and automotive electronics.
