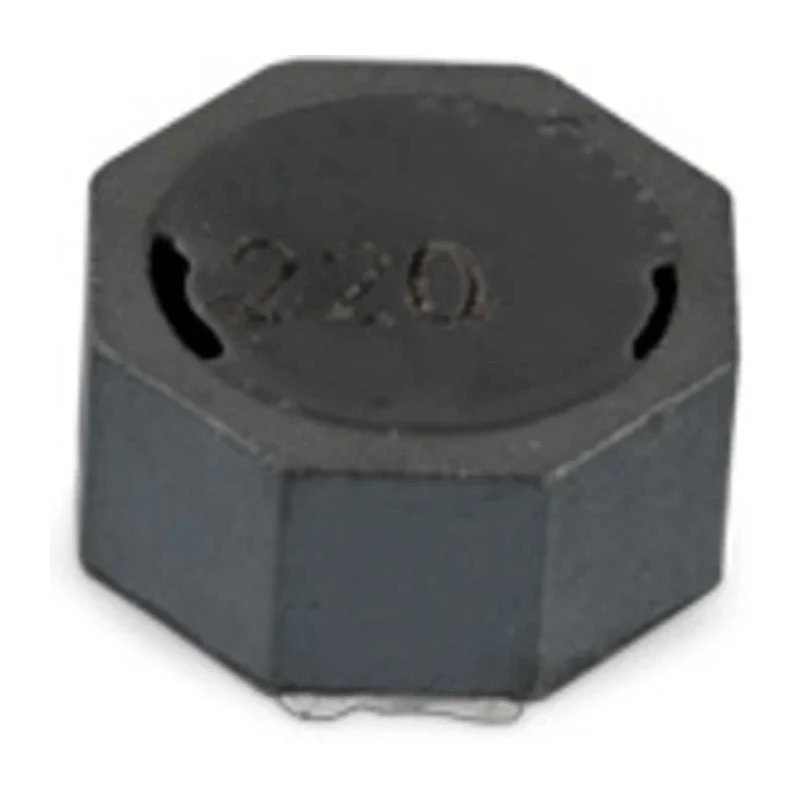

Wurth Elektronik WE-TPC 2816 Shielded Wirewound Surface Mount Inductor with Ferrite Core 4.7 μH ±30 % 1.2 A DC 744029004

Wurth Elektronik 744029004 is part of the WE-TPC series, representing a 2816 shielded wirewound surface mount inductor with a ferrite core that provides a 4.7 μH inductance and ±30 % tolerance. With a maximum DC current rating of 1.2 A and a maximum operating temperature of 125°C, this component is engineered for robust performance under demanding conditions.

The magnetic shielding results in a minimal leakage field, enhancing circuit stability and EMC compliance. The ferrite core construction and wirewound design contribute to excellent inductive characteristics and low DC resistance of 200 mΩ, reducing power losses.

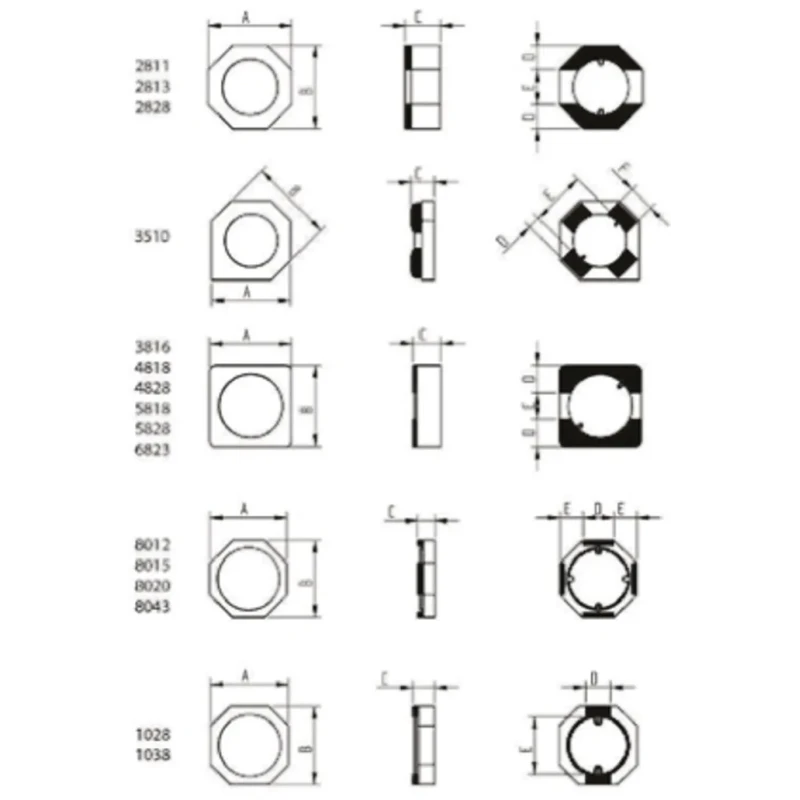

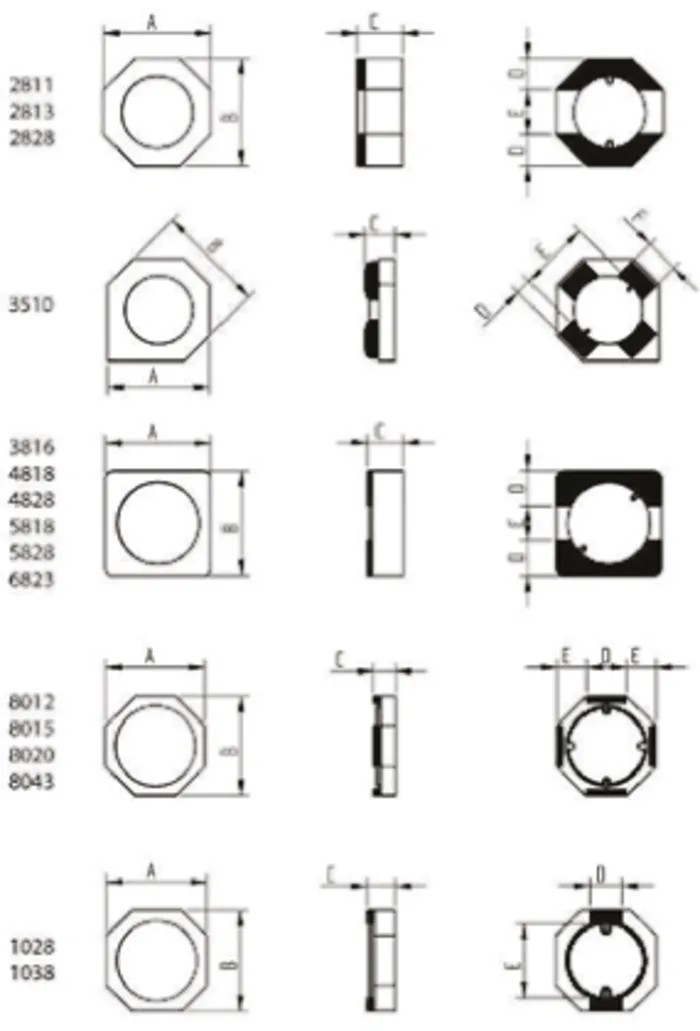

Measuring 2.8 mm in length and width with a height of 1.35 mm, the compact 2816 package is suitable for high-density PCB applications. Termination style is surface mount, facilitating efficient automated soldering.

Compliance with multiple international standards such as IEC 60286-3, IPC/JEDEC J-STD-020E, JEDEC JS709B, and RoHS ensures this inductor meets stringent quality and safety benchmarks required for industrial electronic assemblies.

Applications include portable power systems like PDAs, digital cameras, PCMCIA cards, embedded PCs, mobile data gathering, telemetric systems, and DC/DC converters. It is ideal for industrial, laboratory, and commercial electronic manufacturing.

This inductor offers a shielded wirewound construction minimizing leakage fields. It has an inductance tolerance of ±30 % ensuring performance reliability. Designed for surface mount applications with a compact 2816 package size.

Supports operating temperatures from -40°C to 125°C for versatile use. The core is made of ferrite material, suited for efficient magnetic properties. Maximum DC resistance is low at 200 mΩ improving efficiency. Maximum self resonant frequency is 65 MHz for high frequency applications.

Packaging is tape & reel optimized for automated assembly processes. Meets industry standards including IEC 60286-3:2013 and RoHS compliance. Ideal for portable power electronics and DC/DC converters in industrial and commercial use.
