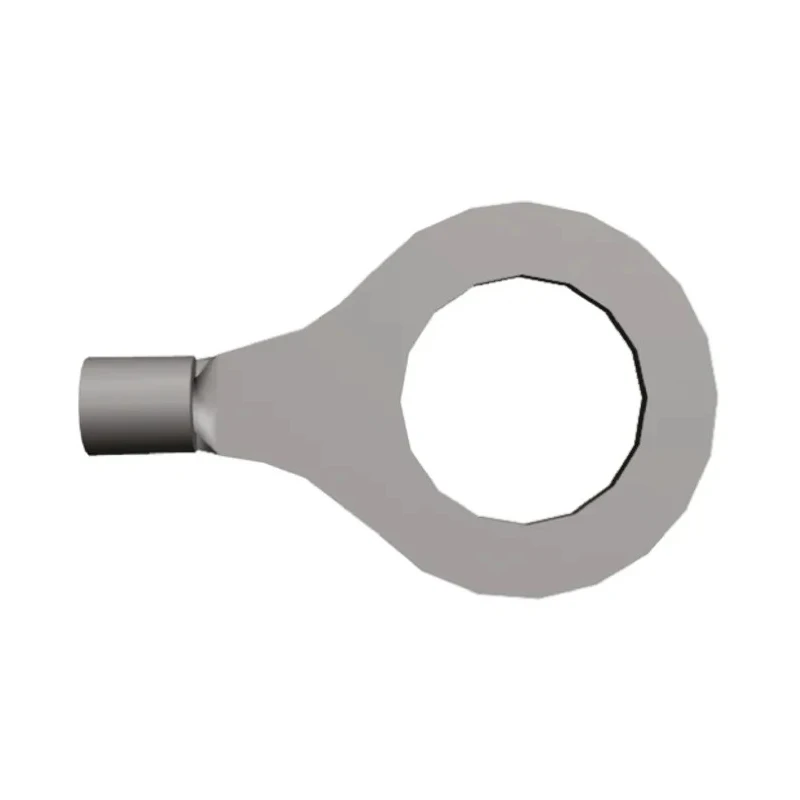

TE Connectivity Solistrand Insulated Ring Terminal M10 Stud Size 16 AWG to 14 AWG Wire Size 160140
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| THICKNESS | 0.79mm |
| Model | 160140 |
| Insulation | Insulated |
| Overall Length | 26.5mm |
| Contact Material | Copper |
| Series | Solistrand |
| Maximum Operating Temperature | 170°C |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 16.7mm |
| Inner Ring Diameter | 10.5mm |
| Stud Size | M10 |
Key Features
- Constructed of high conductivity copper for optimal electrical efficiency.
- Electro tin plating provides improved corrosion resistance.
- Robust design suitable for harsh industrial environments.
- Brazed seams improve barrel strength and durability.
- Dimpled and serrated barrel ensures increased tensile strength and electrical contact.
- Bell shaped barrel entrance allows quick and easy wire insertion, reducing installation time.
- Rated for maximum operating temperature of 170°C for versatile applications.
- Compatible with SOLISTRAND crimping tools for reliable conductor connection.
Product Description
TE Connectivity 160140 Solistrand Insulated Ring Terminal is engineered for efficient termination of solid and stranded wires with a stud size M10 and wire sizes ranging from 16 AWG to 14 AWG. Manufactured from fine grade copper, this ring terminal offers excellent electrical conductivity essential for demanding industrial and electronic applications.
The product features electro tin plating which enhances its resistance to corrosion, making it suitable for use in challenging environments. Its robust design includes brazed seams that strengthen the barrel and ensure longevity under mechanical stress.
The internal serrated and dimpled barrel surface maximizes electrical contact area and tensile strength, providing reliable and secure connections after crimping. Additionally, the bell shaped mouth facilitates quick and effortless wire insertion, improving installation efficiency and reducing labor costs.
With a maximum operating temperature of 170°C, the terminal withstands standard industrial temperatures safely. It is recommended for use with SOLISTRAND crimping tools to achieve optimal contact and mechanical performance.
This ring terminal finds versatile applications across materials handling equipment, motors, heavy equipment, pad and pole mount transformers, switchgear, telecommunications, appliances, panel boxes, power supplies, and instrumentation control systems.
Constructed from high conductivity copper for optimal electrical performance. Electro tin plating enhances corrosion resistance. Robust design with brazed seams for increased barrel strength. Dimpled and serrated barrel for improved tensile strength and electrical contact.
Bell shaped barrel entrance for easy wire insertion. Suitable for temperatures up to 170°C. Compatible with SOLISTRAND crimping tools. Ideal for industrial, telecommunications, and electrical equipment applications. Provides long service life in harsh environments.
Explore more high-quality Ring Terminals and power connectors in our Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accommodates wire sizes from 16 AWG to 14 AWG, which corresponds to a minimum wire size of 1 mm² and a maximum wire size of 2.6 mm².
The terminal is designed for a stud size of M10.
It is rated for a maximum operating temperature of 170°C, making it suitable for various industrial applications.
It is constructed from high conductivity copper and features electro tin plating for enhanced corrosion resistance.
The barrel features brazed seams for increased strength, and a dimpled and serrated surface that maximizes electrical contact and tensile strength.
The overall length of the terminal is 26.5 mm.
The outer ring diameter is 16.7 mm, and the inner ring diameter is 10.5 mm.
This terminal is compatible with SOLISTRAND crimping tools to ensure reliable conductor connections.
It complies with RoHS standards, ensuring it meets environmental safety regulations.
It is suitable for use in materials handling equipment, motors, heavy equipment, telecommunications, appliances, and more.
The thickness of the terminal is 0.79 mm.
This terminal is insulated, providing additional safety and protection in electrical applications.
