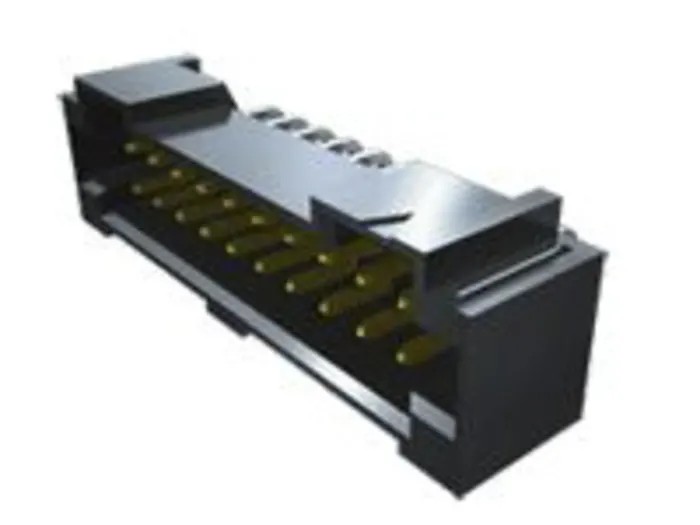

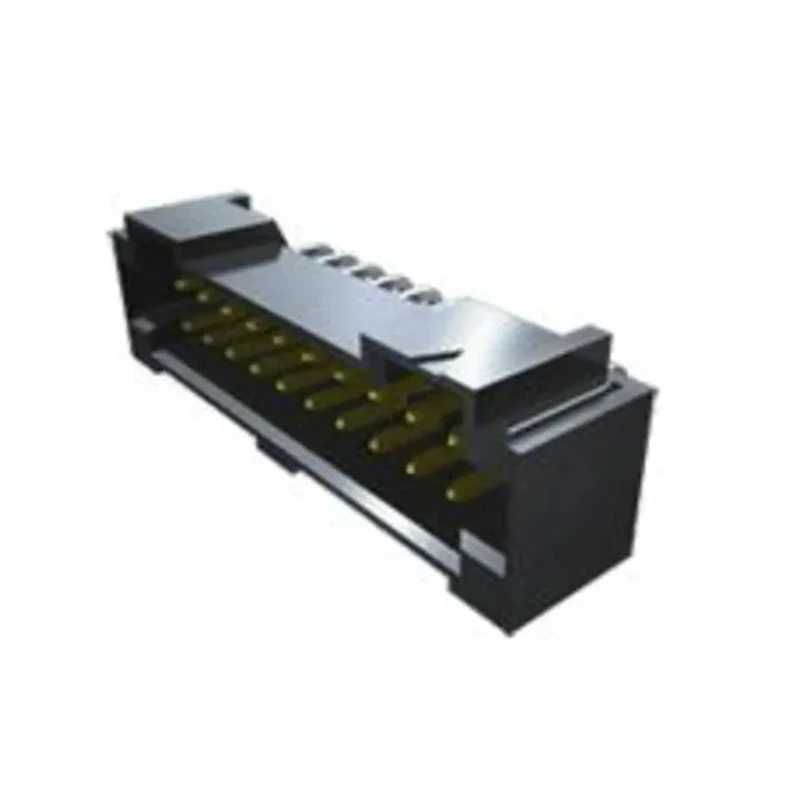

Samtec T2M Series Straight Through Hole PCB Header, 20 Contacts, 2 mm Pitch, 2 Row, Shrouded T2M-110-01-L-D-TH-WT

Samtec T2M-110-01-L-D-TH-WT is a straight through hole PCB header featuring 20 contacts with a 2 mm pitch arranged in 2 rows. Constructed with a liquid crystal polymer housing, it delivers high mechanical and thermal stability suitable for industrial-grade electronics.

This PCB header incorporates gold-plated phosphor bronze contacts offering a reliable connection with a current capacity of 3.8 amperes and a voltage rating up to 350 volts, making it ideal for demanding electronic applications. The shrouded design protects contacts and ensures safe and precise mating with compatible connectors.

The connector system is intended for wire-to-board connections with through-hole mounting and solder termination for robustness and long-term reliability. Operating temperatures range from -55°C to 125°C, enabling performance across extreme environments commonly found in industrial, manufacturing, and electronic assembly settings.

Special features include screw down and weld tab options, providing additional ruggedness required in harsh or vibration-prone conditions. Its vertical orientation and compact 2 mm pitch facilitate dense PCB layouts while maintaining serviceability.

Liquid crystal polymer housing ensures durability and high-temperature resistance. Gold-plated phosphor bronze contacts provide corrosion resistance and excellent conductivity. Shrouded 2-row configuration improves contact protection and connector alignment.

Supports 3.8 A current and up to 350 V voltage for diverse applications. Wide operating temperature range from -55°C to 125°C suits industrial environments. Through-hole solder termination type guarantees strong mechanical and electrical connections.

Screw down and weld tab features enhance durability in rugged applications. Designed for wire-to-board systems with vertical contact orientation.

This Samtec PCB header series reliably supports electronic component connections in industrial, manufacturing, telecommunication, and electronic instrumentation scenarios where compactness, durability, and electrical performance are critical.

Explore the full range of PCB Headers at EnvMart for compatible connectors and accessories tailored to precision electronic assembly requirements.
