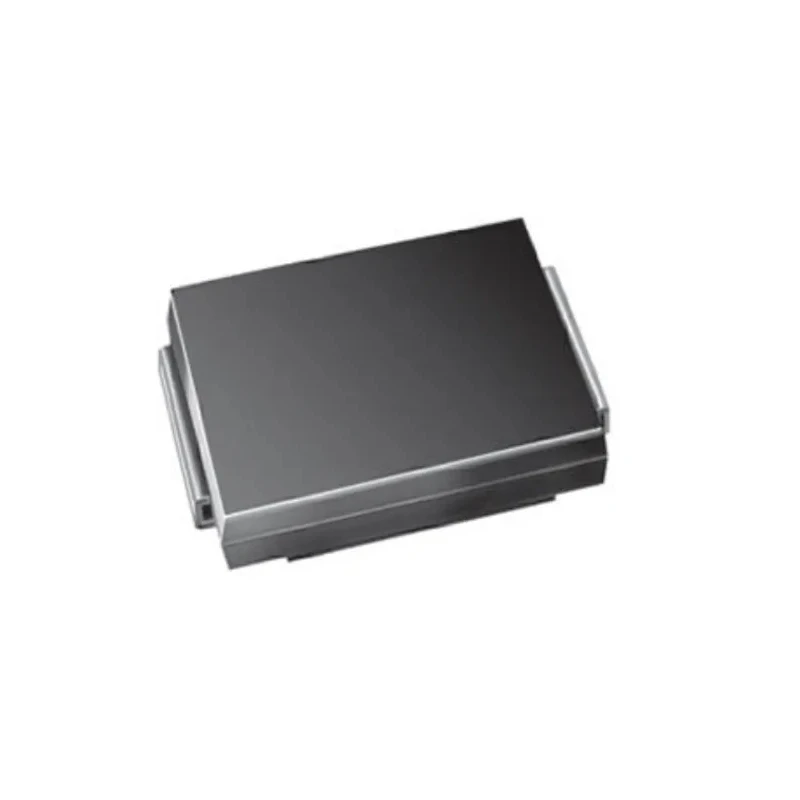

Vishay Bi-Directional TVS Diode 3 kW Surface Mount DO-214AB Package SMC3K16CAHM3_A/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 6.22mm |
| Length | 7.11mm |
| Model | SMC3K16CAHM3_A/H |
| Width | 2.62mm |
| Mount Type | Surface |
| Series | SMC3K |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Clamping Voltage VC | 26V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 17.8V |
| Maximum Reverse Stand-off Voltage Vwm | 16V |
| Peak Pulse Power Dissipation Pppm | 3kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 115A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Provides bidirectional transient voltage suppression for sensitive electronics.
- Capable of handling 3 kW peak pulse power with a 10/1000 microseconds waveform.
- Excellent clamping voltage performance with a maximum clamping voltage of 26 V.
- Operates in a temperature range from -55°C to 150°C, ensuring durability.
- Meets RoHS standards and is qualified to automotive AEC-Q101 specifications.
- Surface mount package (DO-214AB) suitable for PCB assembly.
- Low incremental surge resistance and very fast response time for optimal protection.
- Maximum peak pulse current rating of 115 A and low maximum reverse leakage current of 1 microampere.
Product Description
Vishay SMC3K16CAHM3_A/H Bi-Directional TVS Diode is a surface mount device designed to protect electronic circuits from transient voltage spikes induced by inductive load switching and lightning strikes. Housed in a compact DO-214AB (SMC) package, it offers a peak pulse power dissipation of 3 kW with excellent clamping capabilities, making it ideal for safeguarding integrated circuits, MOSFETs, and sensitive signal lines.
This bidirectional diode operates reliably across a wide temperature range of -55°C to 150°C, supporting high reliability in harsh industrial and automotive environments. It features a minimum breakdown voltage of 17.8 V, maximum operating voltage of 16 V, and a maximum peak pulse current of 115 A. The device complies with RoHS regulations and automotive standard AEC-Q101, ensuring environmental safety and automotive-grade quality.
The diode's physical dimensions are 7.11 mm in length, 6.22 mm in height, and 2.62 mm in width, making it suitable for compact PCB layouts. Its low incremental surge resistance and fast response times provide effective and quick protection against transient surges. It is recommended for use in industries including industrial equipment, automotive electronics, telecommunications, consumer electronics, and computer systems.
Provides bidirectional transient voltage suppression to protect circuits. High peak pulse power rating of 3 kW ensures robust protection. Compact DO-214AB surface mount package supports efficient PCB design. Operates over a wide temperature range from -55°C to 150°C for harsh environments.
Compliant with RoHS and AEC-Q101 automotive quality standards. Low leakage current and high peak pulse current capacity for reliable operation. Suitable for use in automotive, industrial, telecommunications, and consumer devices.
This Vishay diode is an essential component for transient voltage suppression in modern electronics, delivering durable and reliable performance across various demanding applications. Explore more high-quality semiconductor components at EnvMart for your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay SMC3K16CAHM3_A/H TVS diode has a peak pulse power dissipation of 3 kW.
The maximum clamping voltage for this diode is 26 V.
It operates over a temperature range from -55°C to 150°C.
This model has dimensions of 7.11 mm in length, 6.22 mm in height, and 2.62 mm in width.
The maximum reverse leakage current is 1 microampere (1 μA).
The maximum peak pulse current rating is 115 A.
Yes, it meets RoHS standards and is qualified to automotive AEC-Q101 specifications.
It is housed in a DO-214AB (SMC) surface mount package.
The minimum breakdown voltage is 17.8 V.
This diode is suitable for protecting circuits in automotive electronics, industrial equipment, telecommunications, consumer electronics, and computer systems.
The test current is 1 mA.
It provides bidirectional transient voltage suppression for sensitive electronics.
