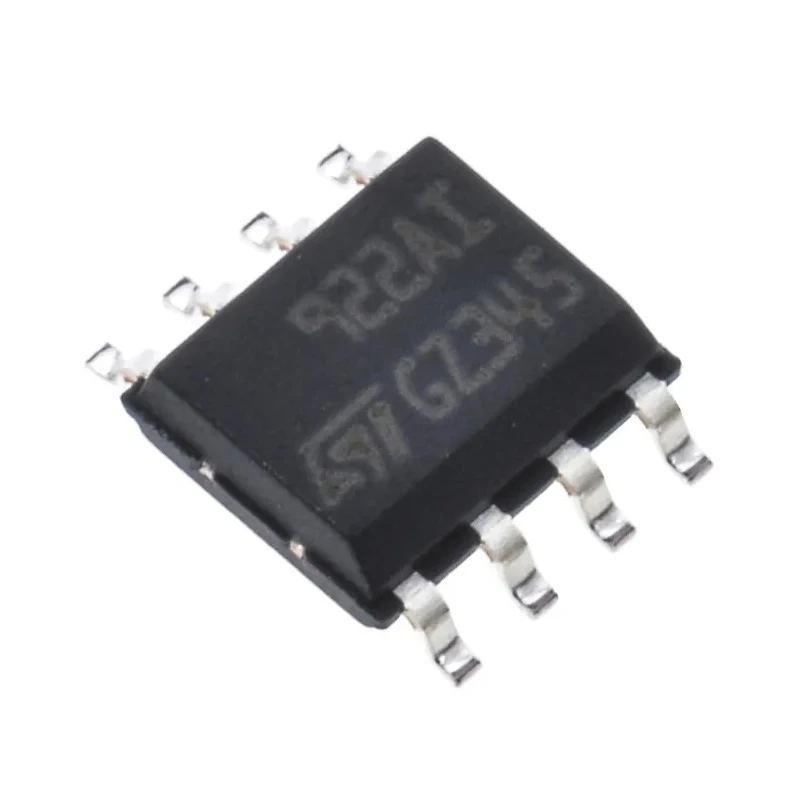

STMicroelectronics Operational Amplifier Dual Channel 4 MHz Gain Bandwidth 12V SOIC 8-Pin TS922AIDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.25mm |
| Length | 4.9mm |
| Model | TS922AIDT |
| Width | 3.9mm |
| Mount Type | Surface |
| Low Noise | 9 nV/√Hz |
| Series | TS922A |
| Output Current | 80mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 12V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 4MHz |
| Input Bias Current | 100 nA |
| Vos - Input Offset Voltage | 1.8 mV |
| Slew Rate | 1.3V/μs |
| High output current | 80 mA (able to drive 32 Ω loads) |
| Input Offset Current | 30 nA |
Key Features
- Operates with a supply voltage from 3V to 12V enabling flexible power configurations.
- Offers a low input offset voltage of 1.8 mV and low noise of 9 nV/√Hz for precision signal amplification.
- High slew rate of 1.3 V/μs supports fast signal response in audio and control applications.
- Capable of delivering an output current up to 80 mA, sufficient for driving loads down to 32 ohms.
- Complies with automotive standard AEC-Q100 ensuring reliability in automotive environments.
- Package dimensions of 4.9 mm length, 3.9 mm width, and 1.25 mm height for compact PCB designs.
- Wide operating temperature range from -40°C to 125°C supports robust industrial applications.
- Surface mount device with SOIC package facilitates automated assembly and space-saving layouts.
Product Description
STMicroelectronics TS922AIDT is a dual channel operational amplifier designed for precision and high-speed analog signal processing. Featuring a gain bandwidth product of 4 MHz and low input noise of 9 nV/√Hz, this device ensures excellent audio performance and minimal distortion. Packaged in a compact 8-pin SOIC surface-mount package, it suits applications requiring efficient board space utilization.
Operating from 3V up to 12V supply voltages, the TS922AIDT supports diverse power environments and automotive applications, complying with the AEC-Q100 standard for quality and reliability under harsh conditions. The amplifier supports fast signal changes with a slew rate of 1.3 V/μs and delivers high output current of 80 mA, enabling it to drive low impedance loads such as 32 Ω speakers.
The device's wide operating temperature range of -40°C to 125°C makes it suitable for industrial, automotive, and manufacturing environments where temperature extremes are common. Its low input offset voltage of 1.8 mV and low input bias current of 100 nA provide accuracy in sensitive measurements and signal conditioning tasks.
Typical applications include audio pre-amplifiers, sensor signal conditioning, industrial control systems, and instrumentation amplifiers. The SOIC package allows for automated PCB assembly, improving production efficiency and reducing manual installation errors.
Operates with supply voltages from 3V to 12V. High output current capability drives low impedance loads effectively. Low noise and distortion ensure quality analog signal amplification. Meets automotive AEC-Q100 standard for rugged environments.
Compact SOIC 8-pin surface mount package facilitates PCB layout. Wide temperature range supports industrial and automotive use cases. Low input offset voltage and bias current for precision applications.
This operational amplifier is suitable for industrial, automotive, and laboratory electronic designs requiring efficient, reliable, and high-fidelity analog signal processing. Explore other electronic components and Operational Amplifiers with EnvMart for your design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TS922AIDT has a gain bandwidth product of 4 MHz, which supports high-speed analog signal processing.
It can deliver an output current of up to 80 mA, which is sufficient for driving loads down to 32 ohms.
This operational amplifier operates with a supply voltage range from 3V to 12V, allowing for flexible power configurations.
The input offset voltage is 1.8 mV, providing accuracy in sensitive measurements.
It has a wide operating temperature range from -40°C to 125°C, making it suitable for various industrial and automotive applications.
The package dimensions are 4.9 mm in length, 3.9 mm in width, and 1.25 mm in height.
It is a surface mount device, specifically in an 8-pin SOIC package, which facilitates automated assembly.
The slew rate is 1.3 V/μs, which supports fast signal response in various applications.
It complies with the AEC-Q100 standard, ensuring reliability in automotive environments.
The input bias current is 100 nA, which contributes to its precision in signal amplification.
Typical applications include audio pre-amplifiers, sensor signal conditioning, industrial control systems, and instrumentation amplifiers.
It meets RoHS standards, ensuring compliance with environmental regulations.
