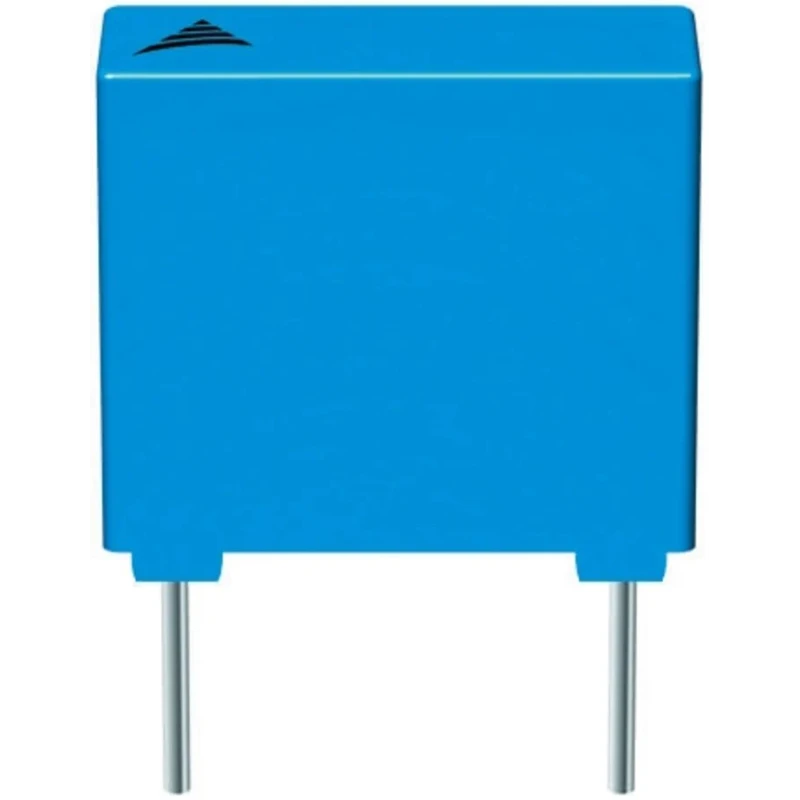

TDK B32024 Film Capacitor 680 nF 300V AC 300V DC Through Hole 2-Pin B32024A3684M000

Free Delivery in India | Lowest Global Shipping Charges

TDK B32024 Film Capacitor 680 nF 300V AC 300V DC Through Hole 2-Pin B32024A3684M000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Operating Temperature	-40 → 110 °C
Height	30mm
Length	31.5mm
Model	B32024A3684M000
Width	19mm
Mount Type	Through Hole
Series	B32024
Maximum Operating Temperature	110°C
Capacitance	680nF
Standards/Approvals	CSA, UL
Pin Count	2
Rated AC Voltage	300V ac
Rated DC Voltage	300V dc
Lead Pitch	27.5mm
Lead Diameter	0.8mm
Suppression Class	Y2

Key Features

Constructed with polypropylene film and plastic case rated UL 94 V-0 for flame resistance.
Epoxy resin sealed for enhanced durability and protection.
High operating temperature range from -40 to 110 °C ensures broad environmental use.
Rated for 300V AC and 300V DC operation for versatile power applications.
Lead pitch of 27.5mm and lead diameter of 0.8mm enables standard through-hole mounting.
Certified to CSA and UL standards assuring product safety and compliance.
Small size with excellent self-healing properties enhances reliability in circuits.

Product Description

TDK B32024A3684M000 Film Capacitor is a precision passive component offering 680 nF capacitance with rated voltages of 300V AC and 300V DC. Featuring a 2-pin through hole mount, this capacitor is manufactured with polypropylene film encased in a plastic housing compliant with UL 94 V-0 flame retardance standards. It is sealed with epoxy resin to ensure robustness against environmental stress.

The capacitor dimensions are compact, measuring 31.5mm in length, 19mm in width, and 30mm in height, supporting space-saving PCB designs. It operates reliably within a temperature range of -40 to 110 °C, suitable for industrial, electrical, and electronic assemblies requiring stable performance in variable conditions.

This model meets key safety standards including CSA and UL certifications, making it suitable for use in interference suppression class Y2 applications as well as line-to-ground noise filters commonly found in power supplies and electronic equipment. The leads have a pitch of 27.5mm and a diameter of 0.8mm to fit standard through-hole mounting processes.

Typical industrial applications include power and control equipment, household appliances, and other devices requiring stringent electromagnetic interference control. Its polypropylene construction confers excellent self-healing capabilities, contributing to extended service life.

Polypropylene film construction with plastic case and epoxy resin sealing for durability. Capacitance: 680 nF, rated voltage 300V AC and 300V DC. Dimensions: Length 31.5mm, Width 19mm, Height 30mm. Operating temperature from -40 °C to 110 °C for wide range usability.

Lead pitch 27.5mm and lead diameter 0.8mm suits through hole mounting. Meets CSA and UL standards for safety and reliability. Ideal for interference suppression and line-to-ground applications.

This TDK Film Capacitor is a reliable choice for applications in industrial, electronic, and household electrical apparatus, combining compact size with high electrical endurance. EnvMart offers this capacitor as part of comprehensive passive components suitable for circuit design optimization.
