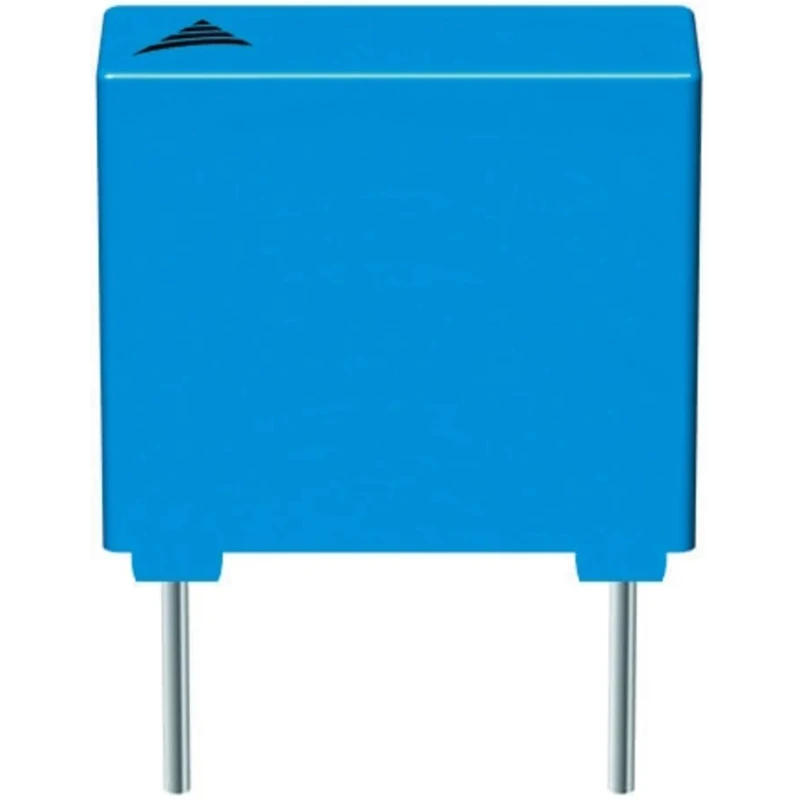

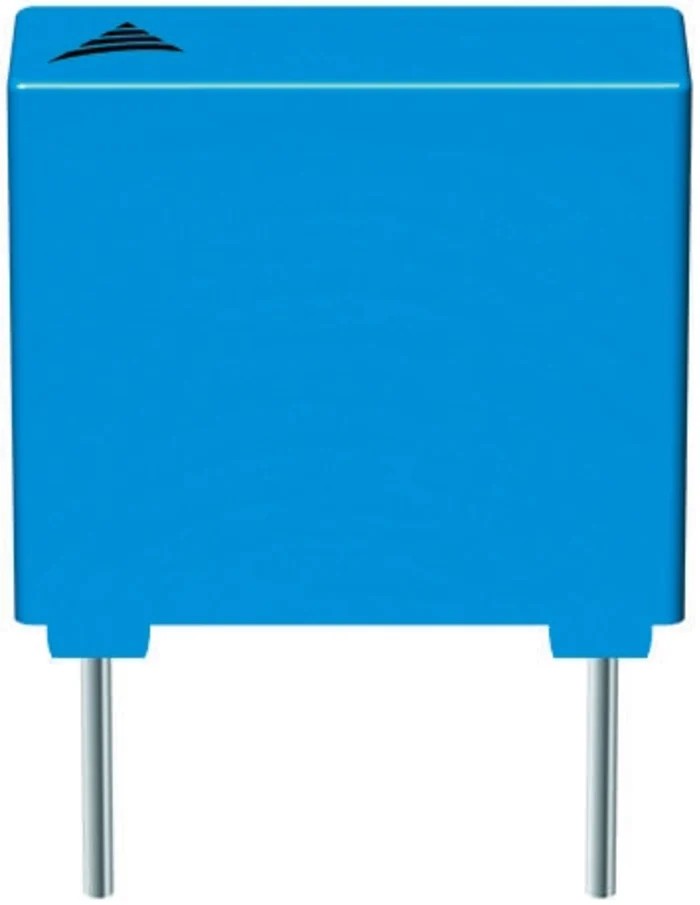

TDK B32023 Film Capacitor 220 nF 300V AC 300V DC Through Hole 2 Pin 22.5mm Pitch B32023A3224M000

Free Delivery in India | Lowest Global Shipping Charges

TDK B32023 Film Capacitor 220 nF 300V AC 300V DC Through Hole 2 Pin 22.5mm Pitch B32023A3224M000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Operating Temperature	-40 → 110 °C
Height	22mm
Length	26.5mm
Model	B32023A3224M000
Width	12mm
Mount Type	Through Hole
Series	B32023
Maximum Operating Temperature	110°C
Capacitance	220nF
Standards/Approvals	CSA, UL
Pin Count	2
Rated AC Voltage	300V ac
Rated DC Voltage	300V dc
Lead Pitch	22.5mm
Lead Diameter	0.8mm
Suppression Class	Y2

Key Features

Constructed with polypropylene plastic case and epoxy resin sealing for durability.
Compact dimensions of 26.5mm length, 22mm height, and 12mm width for easy PCB mounting.
Rated for 300V AC and 300V DC operation with a capacitance of 220 nF.
Operates within temperature range from -40° to 110°C ensuring wide environmental tolerance.
Featuring Y2 suppression class for interference suppression and line-to-ground protection.
Compliant with CSA and UL standards ensuring safety and quality.
Pin count of 2 with pin diameter of 0.8mm and lead pitch of 22.5mm for through-hole mounting.
Designed with excellent self-healing properties and very small sizing suitable for compact assemblies.

Product Description

TDK B32023A3224M000 is a high-quality film capacitor with 220 nF capacitance, rated for 300V AC and 300V DC voltages designed for through-hole mounting. It features a polypropylene plastic case and epoxy resin sealing both rated UL 94 V-0, ensuring durability and flame resistance for industrial and electronic applications.

This capacitor is compact with dimensions of length 26.5mm, height 22mm, and width 12mm, optimized for use on printed circuit boards requiring secure two-pin placements with 22.5mm lead pitch and 0.8mm pin diameter. It operates efficiently over a temperature range of -40°C up to 110°C, suitable for a variety of environments.

The device belongs to the B32023 series, exhibiting excellent self-healing and high voltage capabilities. Classified as Y2 suppression capacitor, TDK B32023 is intended for interference suppression and line-to-ground applications, making it ideal for power electronics and industrial control equipment.

The component carries certifications and meets standards including CSA and UL, validating its compliance with safety and performance requirements. Polypropylene construction with plastic UL 94 V-0 case and epoxy resin sealing.

Capacitance value of 220 nF rated for a maximum AC and DC voltage of 300V. Lead pitch measures 22.5mm facilitating through-hole mounting. Wide operating temperature range from -40 to 110°C. Y2 class suppression capacitor suitable for interference and line-to-ground applications.

Pin count of 2 with dimensions optimized for compact PCB assemblies. Certified by CSA and UL ensuring high safety standards.

This Film Capacitor finds application in electronic components manufacturing, industrial power circuits, and HVAC systems requiring reliable passive components. Its small size and high rating make it suitable for modern, compact electronics assembly and equipment.
