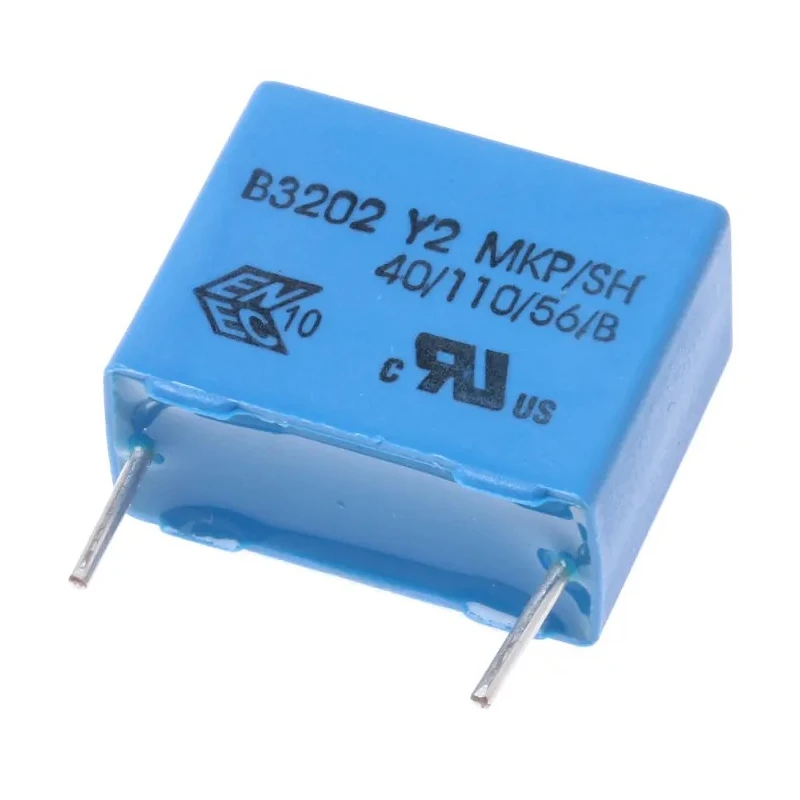

TDK B32022 Film Capacitor 47 nF 300V AC 300V DC Through Hole 2 Pin B32022A3473M000

Free Delivery in India | Lowest Global Shipping Charges

TDK B32022 Film Capacitor 47 nF 300V AC 300V DC Through Hole 2 Pin B32022A3473M000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Operating Temperature	-40 → 110 °C
Height	14.5mm
Length	18mm
Model	B32022A3473M000
Width	8.5mm
Mount Type	Through Hole
Series	B32022
Maximum Operating Temperature	110°C
Capacitance	47nF
Standards/Approvals	CSA, UL
Pin Count	2
Rated AC Voltage	300V ac
Rated DC Voltage	300V dc
Lead Pitch	15mm
Lead Diameter	0.8mm
Suppression Class	Y2

Key Features

Constructed with polypropylene film and plastic case with epoxy resin sealing for durability.
Features excellent self-healing properties and high voltage capabilities.
Compact size with dimensions of 18mm length, 14.5mm height, and 8.5mm width.
Operating temperature range from -40 °C to 110 °C for reliable performance.
Complies with CSA and UL standards for quality assurance.
Lead pitch of 15mm and lead diameter of 0.8mm for through hole mounting.

Product Description

TDK B32022A3473M000 film capacitor is a highly reliable electronic component designed for use in interference suppression and line to ground applications. This capacitor features polypropylene construction, housed in a plastic case with epoxy resin sealing, providing excellent durability and safety performance adhering to UL 94 V-0 standards.

Rated at 300V AC and 300V DC, it offers robust voltage tolerance suitable for various industrial and consumer electronic circuits. Its very small dimensions of 18mm length, 14.5mm height, and 8.5mm width allow compact mounting setups.

The capacitor operates efficiently in a wide temperature range from -40 °C to 110 °C, maintaining stability and safety. With a lead pitch of 15mm and a pin count of 2, it is optimized for through hole mounting on circuit boards.

This series includes self-healing properties to enhance capacitor lifespan under operational stresses, making it ideal for suppression tasks in line to ground circuits. Compliance with CSA and UL assures adherence to strict safety regulations applicable in electrical and electronic equipment manufacturing.

Polypropylene construction with plastic case and epoxy resin sealing. Rated to 300V AC and 300V DC voltage tolerances. Operating temperature range from -40 to 110 °C. Compact form factor with 18mm x 14.5mm x 8.5mm dimensions.

Through hole mount type with 2 pins and 15mm pitch. Certifications include CSA and UL approvals. Designed for interference suppression and line to ground applications.

This film capacitor is suitable for industrial manufacturing, electronics assembly, and power supply applications where robust capacitive suppression is required. Its small size and compliance certifications enable usage in commercial and consumer grade electronic devices.
