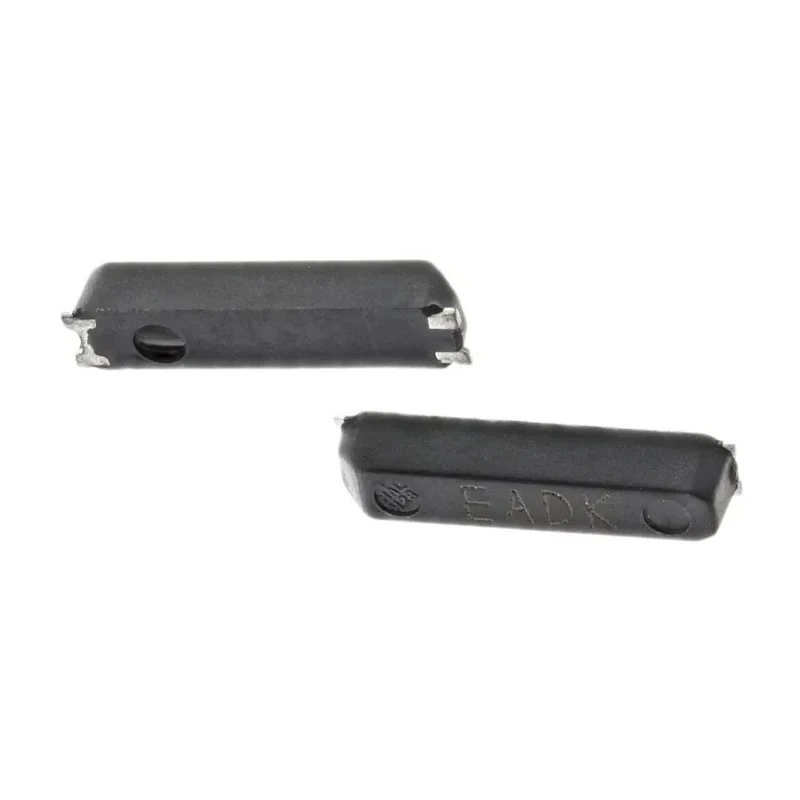

Epson 32.768 kHz Crystal Oscillator Surface Mount 4-Pin 1.4 mm Height 6.7 mm Length 1.5 mm Width ±20 ppm Q13MC1461000211

The Epson Q13MC1461000211 is a high precision 32.768 kHz crystal oscillator designed for surface mount applications requiring accurate timing in electronic circuits. It is engineered to maintain frequency stability within ±20 ppm, making it ideally suited for applications such as real-time clocks, embedded systems, and telecommunications equipment.

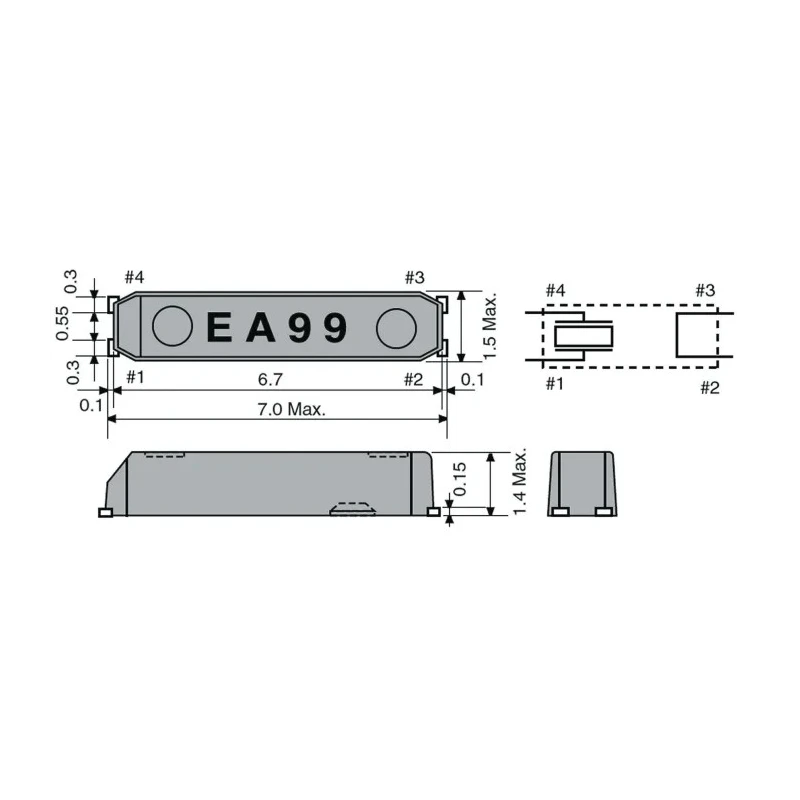

Its small form factor with a length of 6.7 mm, width of 1.5 mm, and height of 1.4 mm allows integration in compact PCB layouts without compromising performance. The 4-pin surface mount configuration facilitates automated assembly processes.

The crystal features a load capacitance of 12.5 pF and series resistance of 65 kΩ, parameters vital for matching oscillator circuit designs to ensure consistent oscillation and low phase noise.

Rated for operating temperatures from -40°C to 85°C, this component is reliable across a broad range of industrial and commercial environments. It complies with key industry standards including ISO9001, ISO/TS 16949, RoHS, and ISO 14001, ensuring quality and environmental compliance.

Typical industrial and electronic applications include instrumentation, medical devices, communication modules, and automotive electronics where precise timing signals are critical.

The crystal operates at a standard frequency of 32.768 kHz with ±20 ppm tolerance. It utilizes a surface mount 4-pin package for ease of PCB integration. Physical dimensions: 6.7 mm (L) × 1.5 mm (W) × 1.4 mm (H). Load capacitance: 12.5 pF, suitable for oscillator circuits.

Series resistance of 65 kΩ ensures frequency stability. Wide operating temperature range: -40°C to 85°C. Manufactured under ISO9001, ISO/TS 16949, RoHS, ISO 14001 standards.

This Epson crystal oscillator can be explored within the Electronics Components category on EnvMart, providing high quality, precision Crystal Units for demanding industrial applications.
