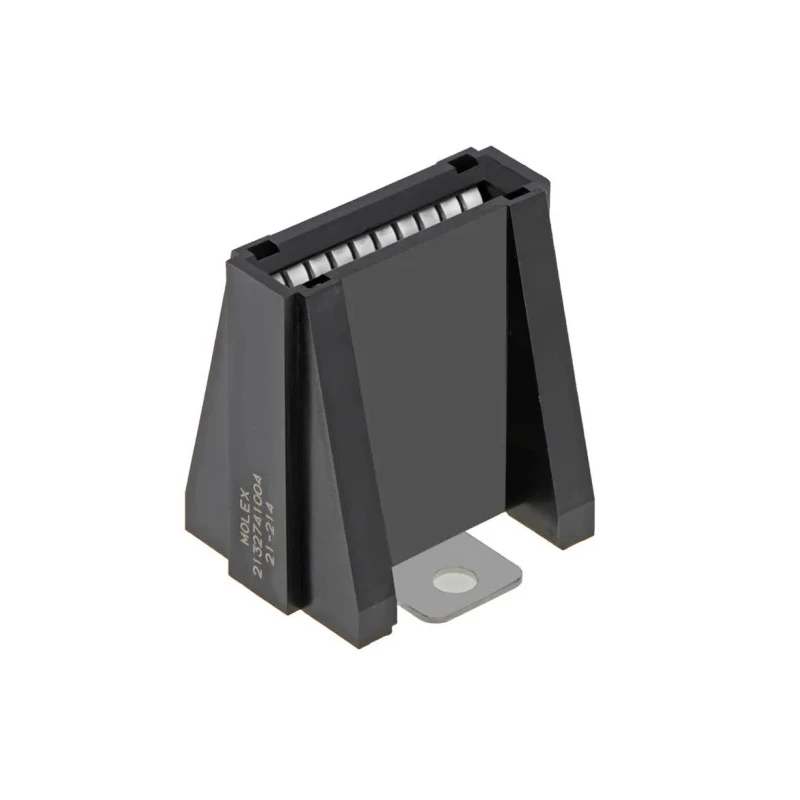

Molex PowerPlane Series Vertical PCB Socket 1-Contact 1 Row Screw 600V 300A 213274-1004
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Vertical |
| Current | 300A |
| Mount Type | Vertical |
| Housing Material | Polyester |
| Contact Material | Copper Alloy |
| Series | PowerPlane |
| Termination Type | Screw |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Standards/Approvals | CHINA RoHS, EU RoHS |
| Contact Plating | Silver |
| Number of Contacts | 1 |
| Contact Gender | Male |
| Connector System | Wire-to-Board |
Key Features
- Rated for 300A current and 600V voltage for reliable power transmission.
- Features vertical orientation with wire-to-board connector system.
- Constructed with polyester housing for durability and electrical insulation.
- Copper alloy male contacts with silver plating reduce resistance and lower voltage drop.
- Operates within a temperature range of -40°C to 125°C suitable for diverse environments.
- Complies with CHINA RoHS and EU RoHS environmental standards.
- Dimensionally compatible with competitors’ connectors for ease of integration.
- Ideal for industrial, electronic, and power supply applications requiring secure bus bar connections.
Product Description
Molex 213274-1004 PowerPlane Series Vertical PCB Socket is a high-performance electrical connector engineered for mounting on printed circuit boards in industrial, electronic, and power distribution systems.
This 1-contact, 1-row socket features a vertical mount design and screw termination for secure, reliable wire-to-board connections. The housing is made of durable polyester material, providing robust electrical insulation and mechanical stability.
The connector supports a maximum current of 300 amps and voltage rating of 600V AC, making it suitable for heavy-duty power applications. Its copper alloy male contacts are coated with silver plating, enhancing conductivity and minimizing voltage drop during operation.
Rated for operation from -40°C to 125°C, this Molex socket is compliant with RoHS directives for environmentally safe manufacturing and disposal. Its dimension is compatible with similar connectors from other manufacturers, simplifying upgrades or replacements.
High current capacity of 300A ensures efficient power handling. Silver plated contacts provide low resistance and high conductivity. Vertical orientation and screw termination offer secure connectivity. Durable polyester housing withstands harsh operating environments.
Compliant with CHINA RoHS and EU RoHS environmental standards. Suitable for industrial power distribution and electronic equipment. Temperature range from -40°C to 125°C supports diverse applications. Compatible with competitor connector dimensions for easy replacement.
This product is made in China and represents Molex’s commitment to quality and reliability in power connector solutions. For more PCB Socket and connector options, explore our Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Molex PowerPlane Series Vertical PCB Socket has a maximum current rating of 300A.
This model is rated for a maximum voltage of 600V.
It operates within a temperature range of -40°C to 125°C, making it suitable for diverse environments.
The housing is made of durable polyester, and the male contacts are constructed from copper alloy with silver plating.
This unit features screw termination for secure wire-to-board connections.
Yes, it complies with CHINA RoHS and EU RoHS environmental standards.
It utilizes a wire-to-board connector system.
This socket has 1 contact.
The connector features a vertical orientation.
This PCB socket has male contacts.
The silver plating on the contacts reduces resistance and minimizes voltage drop during operation.
Yes, it is dimensionally compatible with competitors’ connectors, facilitating easy integration and replacements.
