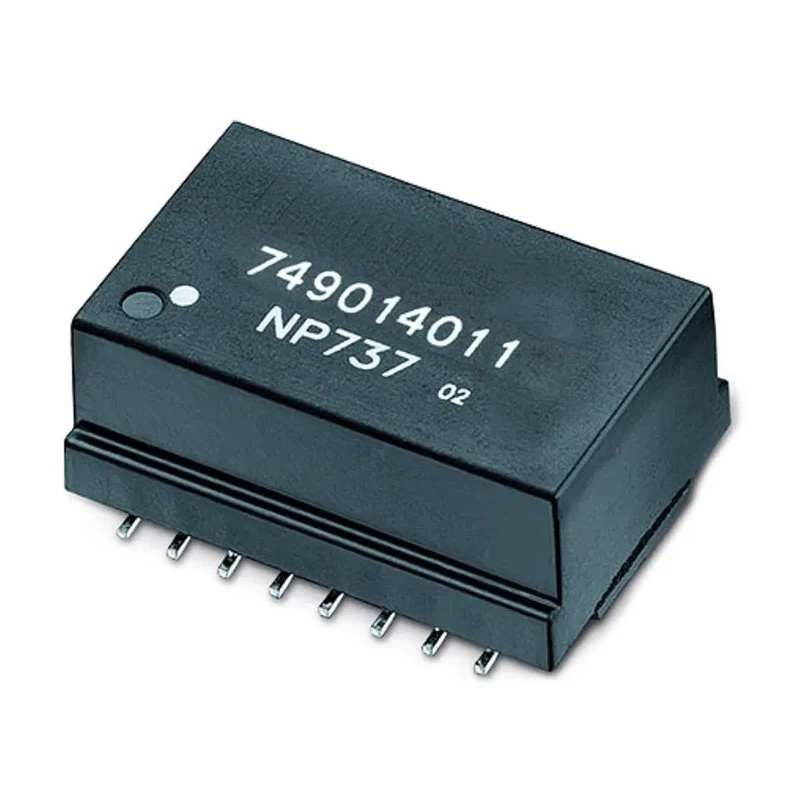

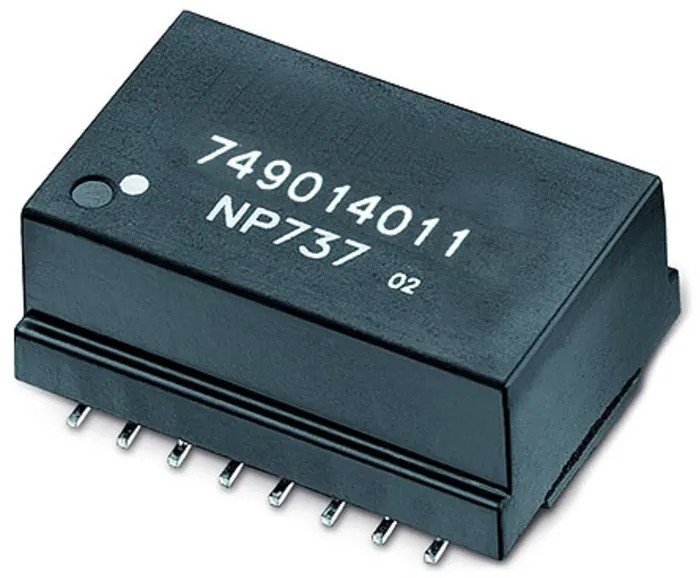

Wurth Elektronik Surface LAN Ethernet Transformer, 1 Output, 24.55mm Length, 18.25mm Width, 350μH Inductance, 85 7490140112
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Length | 24.55mm |
| Width | 18.25mm |
| Mount Type | Surface |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | Ethernet |
| Number of outputs | 1 |
| Inductance | 350μH |
| Isolation Voltage | 6000V ac |
| Insertion Loss | -1.5dB |
| Turns Ratio | 1:1 |
| Turns Ratio1 | 1 |
Key Features
- Supports Power over Ethernet (PoE) and complies with IEEE 802.3 standards.
- Features an inductance of 350μH ensuring reliable signal integrity.
- Operating temperature range from -40 °C to 85 °C for robust performance.
- Compact dimensions with 24.55 mm length and 18.25 mm width supporting surface mount type.
- Built for use in Ethernet hubs, routers, switches compatible with Intel, AMD, Globespan, and Realtek ICs.
- Isolation voltage rating of 6000V AC provides electrical safety.
- Termination type is solder, suitable for PCB mounting.
Product Description
Wurth Elektronik 7490140112 Surface LAN Ethernet Transformer is a high-quality transformer designed for Ethernet and Power over Ethernet (PoE) applications supporting 10/100/1000 Mbps data rates. It features a surface mount configuration, ensuring easy integration onto printed circuit boards.
This transformer exhibits reliable performance with an inductance of 350μH and a compact size of 24.55 mm length by 18.25 mm width, suitable for space-constrained applications. It operates effectively in a wide temperature range from -40 °C to 85 °C, making it suitable for diverse industrial environments.
The product provides a single output with an isolation voltage rating of 6000V AC, ensuring electrical isolation and safety. It is terminated by solder pins, enabling robust and secure mounting on PCBs.
This transformer fully complies with multiple international standards, including IEC 60601-1:2006, AS/NZS 60950.1, IEEE 802.3 series, EN and CSA 60950-1 standards, and UL 60950-1 certifications, making it suitable for medical, industrial, and networking equipment applications.
Typical applications encompass LAN Ethernet devices such as hubs, routers, and switches. It is compatible with major Ethernet ICs from Intel, AMD, Globespan, and Realtek. The transformer’s IEEE 802.3 compliance ensures interoperability across various Ethernet and PoE standards.
Supports Power over Ethernet and 1 Gigabit Ethernet applications. Compact surface mount transformer for PCB integration. Robust electrical isolation for safe operation. Operational over a wide temperature range from -40 °C to 85 °C.
Compliance with multiple global industry standards. Compatible with leading Ethernet IC manufacturers. Solder termination for durable PCB mounting. This reliable Wurth Elektronik transformer is an ideal choice for professional Ethernet networking and industrial communication applications.
Explore more reliable transformers and electronic components at EnvMart for your industrial projects and innovations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features an inductance of 350μH, ensuring reliable signal integrity for Ethernet applications.
The transformer has a length of 24.55 mm and a width of 18.25 mm, making it suitable for compact installations.
It operates effectively within a temperature range of -40 °C to 85 °C, suitable for various industrial environments.
It uses solder termination, allowing for secure mounting on printed circuit boards (PCBs).
The isolation voltage rating is 6000V AC, providing electrical safety during operation.
It complies with IEEE 802.3 standards, ensuring interoperability across various Ethernet and Power over Ethernet (PoE) applications.
The maximum insertion loss is -1.5dB, which is important for maintaining signal quality in Ethernet applications.
This model provides a single output, suitable for various networking applications.
It supports surface mount type, facilitating easy integration onto PCBs.
It is compatible with Ethernet ICs from Intel, AMD, Globespan, and Realtek, making it versatile for different applications.
The turns ratio is 1:1, which is standard for many Ethernet applications.
The country of origin for this transformer is India.
