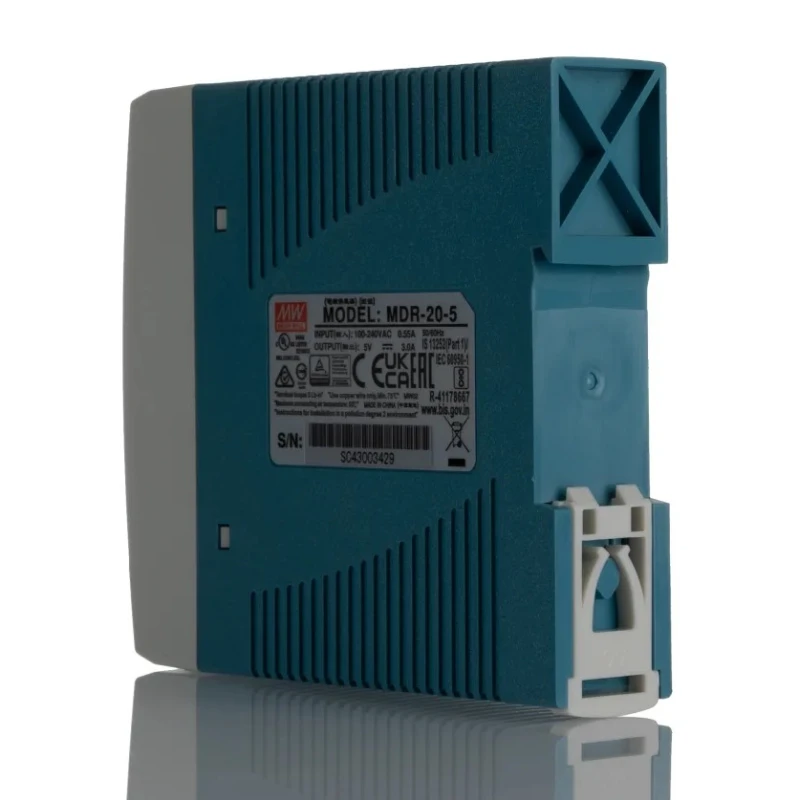

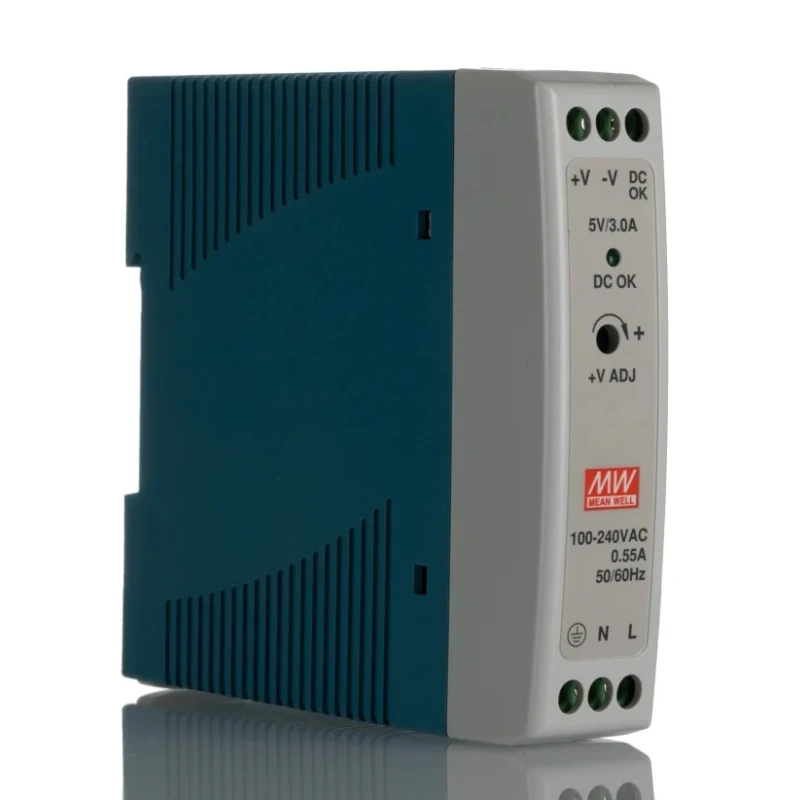

MEAN WELL MDR Switched Mode DIN Rail Power Supply 264V AC Input 5.5V DC, 3A Output, 20W MDR-20-5
Specifications
| Country of Origin | China |
|---|---|
| Brand | MEAN WELL |
| Power | 20W |
| Height | 100mm |
| Model | MDR-20-5 |
| Depth | 90mm |
| Width | 22.5mm |
| Series | MDR |
| Output Current | 3A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Standards/Approvals | RoHS Compliant, TUV EN 60950-1, UL 508 |
| Maximum Output Voltage | 5.5V dc |
| Minimum Input Voltage | 85V ac |
Key Features
- Compact design with dimensions 100mm height, 22.5mm width, and 90mm depth.
- Single output switched mode power supply with universal AC input from 85V to 264V AC.
- Operational temperature range from -20°C to 70°C for versatile industrial applications.
- Equipped with protections against short circuit, overload, and over voltage.
- Includes remote DC-OK signal relay contact and LED indicator for power-on status.
- Cooling via free air convection with no load power consumption, ensuring energy efficiency.
- RoHS compliant and meets TUV EN 60950-1 and UL 508 standards for safety and reliability.
- Suitable for installation on DIN Rail TS-35/7.5 or TS-35/15 rails in industrial and laboratory environments.
Product Description
MEAN WELL MDR-20-5 is a switched mode DIN Rail Power Supply designed for industrial electronics requiring a reliable 20W single output.
It features a compact form factor measuring 100mm in height, 22.5mm in width, and 90mm in depth, making it suitable for dense electrical cabinets. The power supply supports a wide AC input voltage range from 85V to 264V, ensuring compatibility with various power grids.
The MDR series includes short circuit, overload, and over voltage protections, safeguarding connected equipment. An LED indicator provides a clear visual status for power-on, while a remote DC-OK relay contact enables remote monitoring of output status.
The unit uses free air convection cooling without fans, thereby reducing maintenance and operational noise, ideal for clean room or laboratory settings. Operating temperature range of -20°C to 70°C allows deployment in harsh or variable temperature environments.
Conforming to RoHS standards and certifications such as TUV EN 60950-1 and UL 508, this power supply meets stringent safety and environmental requirements.
The MDR-20-5 can be mounted easily on standard DIN Rail TS-35/7.5 or TS-35/15 rails commonly used in electrical cabinets across industrial, manufacturing, HVAC, and laboratory installations.
Compact single output 20W power supply optimized for industrial DIN Rail mounting. Wide universal input voltage range and protections for system safety. Energy efficient convection cooling to extend operational life. Visual and remote monitoring features for maintenance convenience.
Certified to international safety standards for reliable usage. Supports a broad operating temperature range suitable for diverse applications. Easy installation on standard DIN rails in control and automation panels. Designed for industrial, laboratory, manufacturing, and HVAC power applications.
Explore more DIN Rail Power Supplies and MEAN WELL products on EnvMart for efficient power management solutions in your projects and installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MDR-20-5 power supply provides a maximum output voltage of 5.5V DC.
This power supply accepts a universal AC input voltage range from 85V to 264V.
The maximum output current of this model is 3A.
The dimensions of this unit are 100mm in height, 22.5mm in width, and 90mm in depth.
It operates within a temperature range of -20°C to 70°C, making it suitable for various environments.
This model includes protections against short circuit, overload, and over voltage to safeguard connected equipment.
It uses free air convection for cooling, which eliminates the need for fans and reduces operational noise.
This power supply is RoHS compliant and meets TUV EN 60950-1 and UL 508 safety standards.
The MDR-20-5 features a single output.
It is designed for installation on standard DIN Rail TS-35/7.5 or TS-35/15.
Yes, it includes an LED indicator for power-on status, along with a remote DC-OK signal relay contact.
The power rating of this model is 20W.
