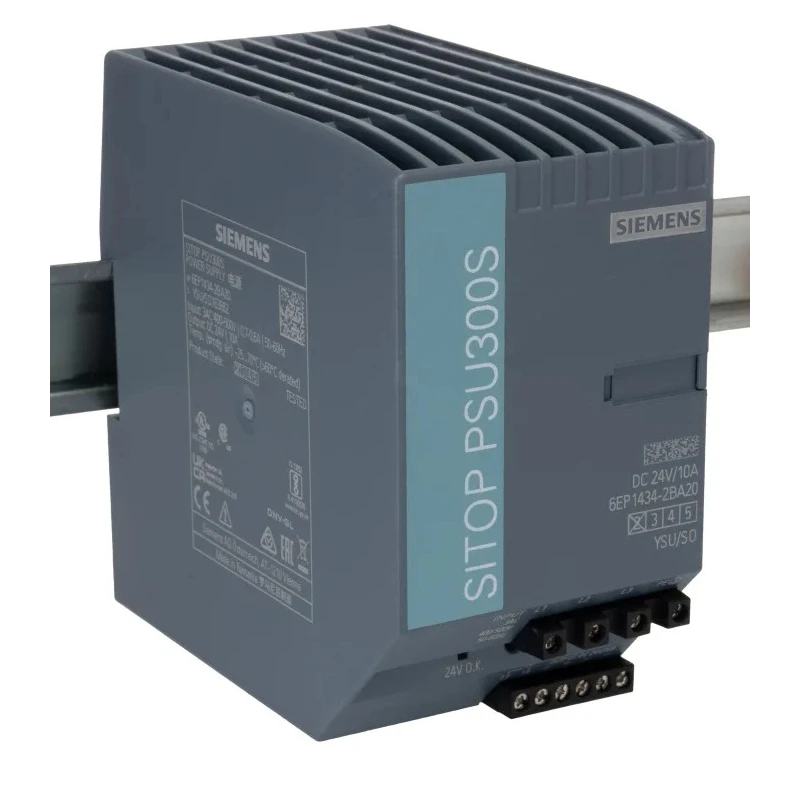

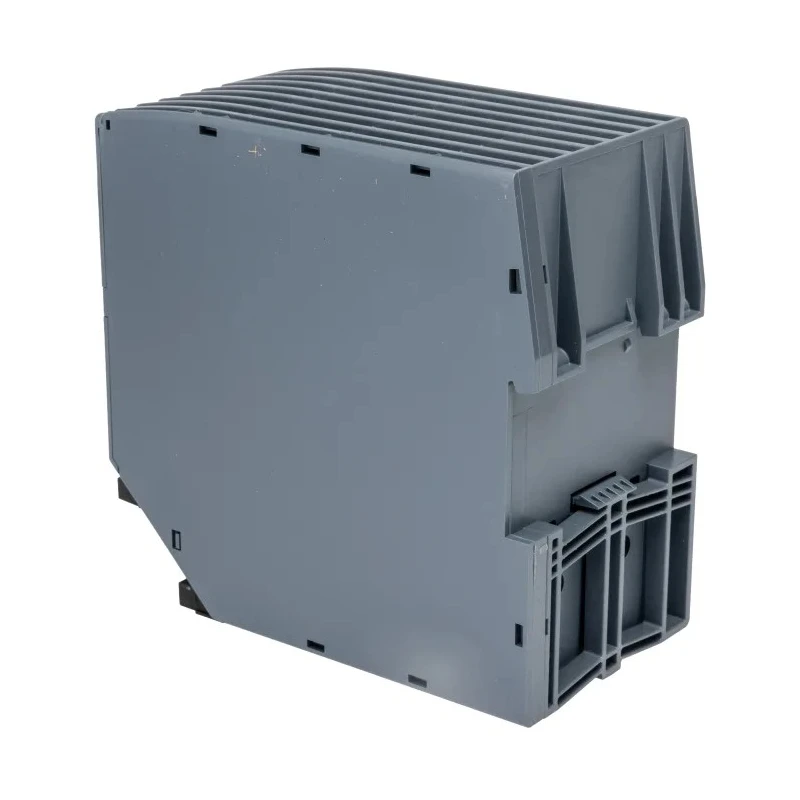

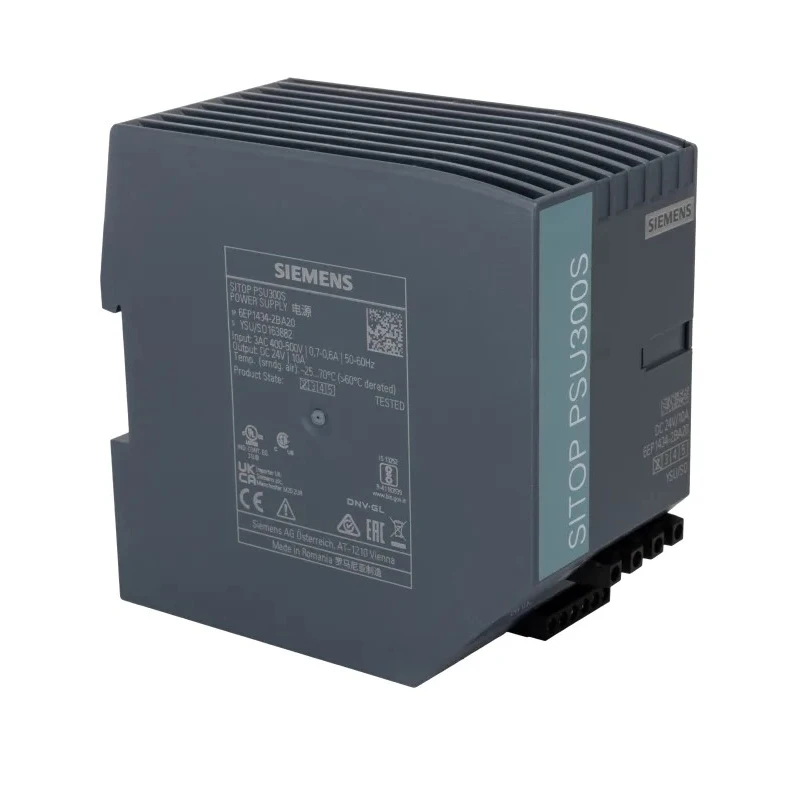

Siemens SITOP PSU300S Switched Mode DIN Rail Power Supply, 3-Phase, 340–550V AC Input, 24–28V DC 10A Output, 240W, IP20,

Free Delivery in India | Lowest Global Shipping Charges

Siemens SITOP PSU300S Switched Mode DIN Rail Power Supply, 3-Phase, 340 - 550V AC Input, 24 - 28V DC 10A Output, 240W, IP20,

Name: Siemens SITOP PSU300S Switched Mode DIN Rail Power Supply, 3-Phase, 340 - 550V AC Input, 24 - 28V DC 10A Output, 240W, IP20,
Brand: Siemens
SKU: 83659
Price: 20.22 USD
Availability: InStock



Category DIN Rail Power Supply Brand Siemens Condition New

Specifications

Country of Origin	Romania
Brand	Siemens
Power	240W
Efficiency	91%
Height	125mm
Model	PSU300S
Depth	120mm
IP Rating	IP20
Width	70mm
Series	SITOP PSU300S
Output Current	10A
Maximum Operating Temperature	70°C
Sub Type	Switched Mode
Minimum Operating Temperature	-25°C
MTBF	500,000 hrs
Number of outputs	1
Maximum Input Voltage	550V ac
Electrical Phase	3
Maximum Output Voltage	28V dc
Minimum Input Voltage	340V

Key Features

Provides reliable 24 - 28V DC output with up to 10A maximum current and 240W power rating.
Accepts a wide input voltage range from 340V to 550V AC, suitable for use in industrial and laboratory environments with three-phase power.
Ensures operational safety through IP20 enclosure and integrated electrical isolation for critical equipment protection.
Highly efficient 91% conversion minimizes power losses during operation.
Withstands harsh conditions thanks to its -25°C to +70°C operating temperature and rigorous standards compliance.
Features static and dynamic load regulation, ensuring a stable and consistent DC supply even under fluctuating loads.
Compact dimensions (125mm H x 70mm W x 120mm D) facilitate easy mounting on DIN rails in control panels and cabinets.
Includes DC-OK remote signaling and green LED status indication for easy monitoring and integration.

Product Description

The Siemens SITOP PSU300S 6EP1434-2BA20 is a high-performance switched mode DIN Rail Power Supply designed to convert three-phase alternating current (AC) into a stable direct current (DC) output for demanding industrial automation and control applications. Engineered for environments requiring high availability and reliability, it delivers up to 240W of regulated DC power, covering a wide range of operational needs in industrial machinery, process control panels, and laboratory equipment.

This power supply accepts a broad input voltage range of 340V to 550V AC in three-phase configuration, making it compatible with modern industrial grids across diverse geographies. Its DC output is precisely regulated between 24V and 28V, supporting up to 10A of continuous load. Advanced design features include a static load regulation of 0.15% and dynamic regulation of 3%, ensuring voltage consistency that critical electronics depend upon.

The SITOP PSU300S is encased in a robust IP20 enclosure for enhanced user and equipment safety in panel installations. Its compact footprint (height 125mm, width 70mm, depth 120mm) simplifies integration into confined DIN rail spaces, optimizing enclosure real estate. High conversion efficiency (91%) reduces energy consumption, contributing to lower operational costs and reduced heat generation, which is particularly beneficial in densely packed electrical cabinets.

Operational resilience is ensured through an extended temperature range from -25°C to +70°C, adapting seamlessly to both hot and cold industrial sites. The power supply includes critical safety and monitoring features such as DC-OK remote signaling, green operational LED indication, and electrical isolation between input and output, safeguarding sensitive downstream equipment from faults and surges. The long mean time before failure (MTBF) of over 500,000 hours underlines Siemens' quality commitment for uninterrupted service.

Rigorous compliance with international standards (UL, CSA, CE, UKCA, EAC) makes this unit ready for global deployment and cross-border projects. Applications encompass factory automation, process engineering, HVAC control, laboratory and test benches, and infrastructure lighting networks - wherever reliable DC power is vital.

The Siemens SITOP PSU300S comes with mounting flexibility, robust protection features, and high efficiency - making it an ideal choice for demanding professional, commercial, and industrial use cases. Discover more industrial-grade power supplies and reliable automation components by browsing related categories and the Siemens range on EnvMart.
