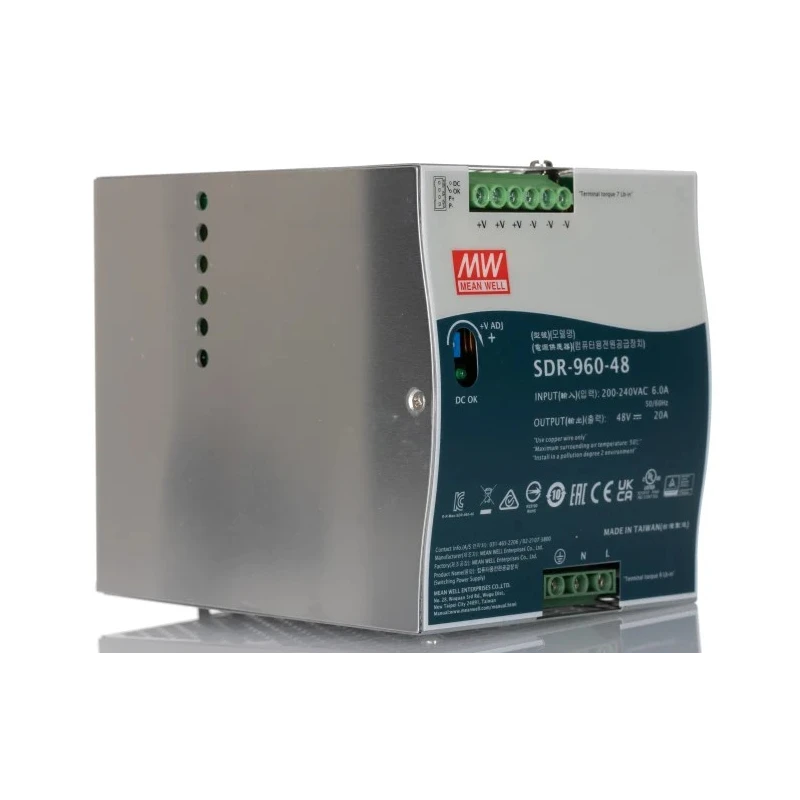

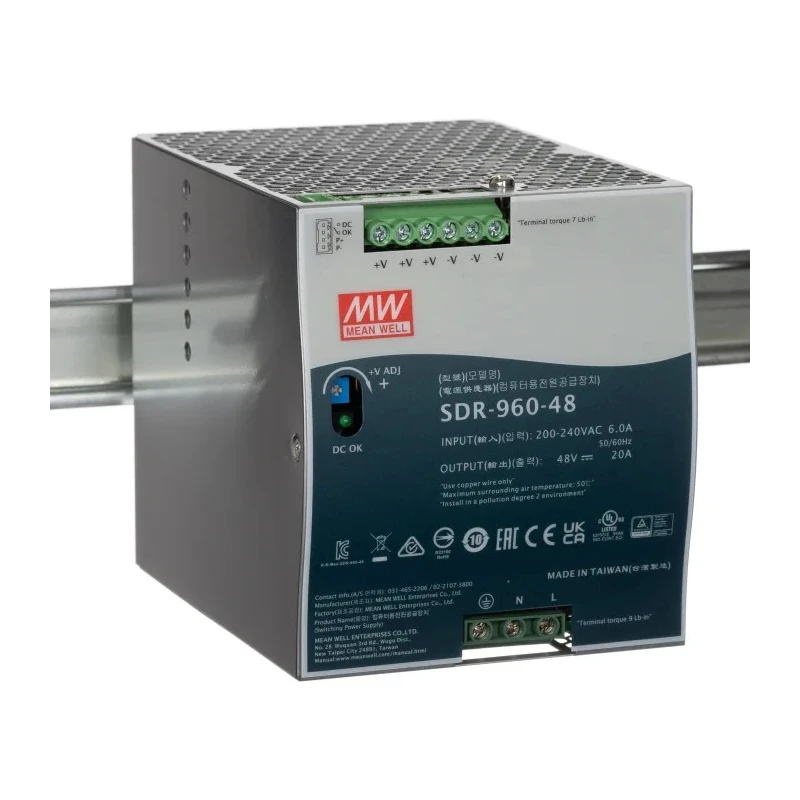

Mean Well SDR-960-48 Switched Mode DIN Rail Power Supply, 960 W, 48 V DC, 20 A, Single Output

The Mean Well SDR-960-48 Switched Mode DIN Rail Power Supply is engineered to provide robust and reliable DC power delivery for demanding industrial environments. With an output of 960 W at 48 V DC and up to 20 A, this single-output power supply is ideal for powering critical equipment in control systems, factory automation, and semiconductor fabrication.

Designed with a slim footprint of 110 mm width, 125 mm height, and 150 mm depth, the SDR-960-48 easily integrates into DIN rail cabinets, optimizing space utilization and simplifying installation. Its AC input ranges from 180 V AC to 264 V AC, making it compatible with standard industrial power feeds. The built-in active power factor correction function enhances efficiency and meets EN61000-3-2 compliance requirements.

Safety and protection are paramount, with features including short circuit, overload, over voltage, and over temperature safeguards, supported by a constant current limiting circuit. The included DC OK relay contact enables real-time monitoring of system power status. Cooling is achieved by free air convection, eliminating the need for additional fans and reducing maintenance overhead.

The SDR-960-48 supports current sharing up to 3840 W in a 3+1 configuration, offering scalability for high-power applications. The device is certified to UL, TUV EN 609501, and RoHS standards, ensuring it meets rigorous industrial and environmental requirements. It has passed a 100% full load burn-in test and carries a 3-year warranty, emphasizing long-term reliability.

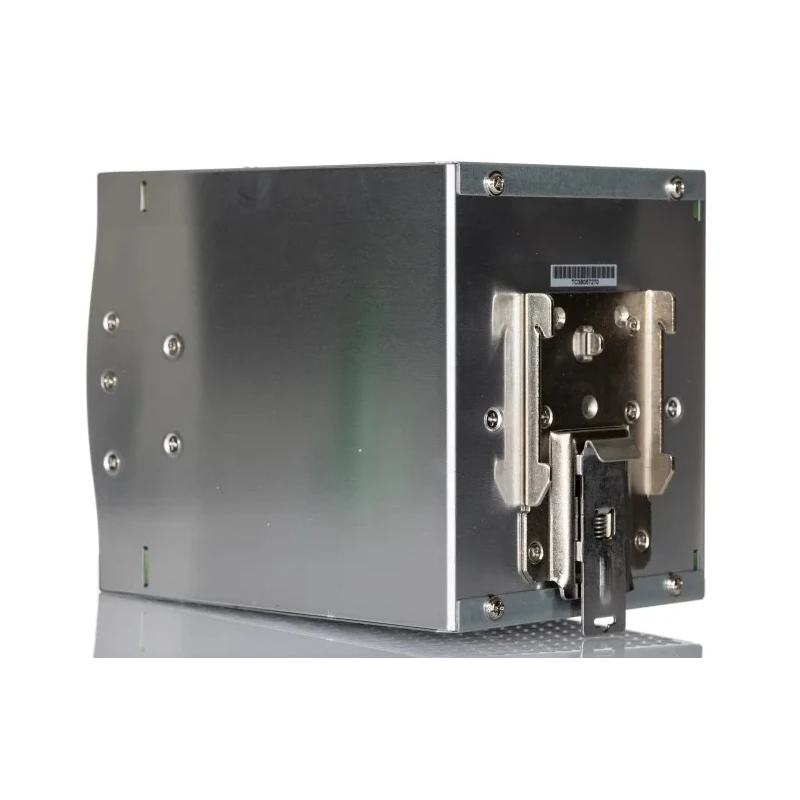

Applications span industrial control systems, factory automation, electro-mechanical equipment, and semiconductor manufacturing. Its metal housing improves heat dissipation, supporting operation from -30°C to +70°C. The unit is designed for seamless DIN Rail mounting (TS-35/7.5 or TS-35/15), facilitating quick installation and reducing cabling complexity.

Whether used in instrumentation, automation, or other industrial processes, the Mean Well SDR-960-48 ensures stable DC power for sensors, actuators, relays, motors, and other devices. Its robust protection mechanisms and high efficiency (up to 94%) make it a trusted choice for precision and reliability in industrial power supply solutions.
