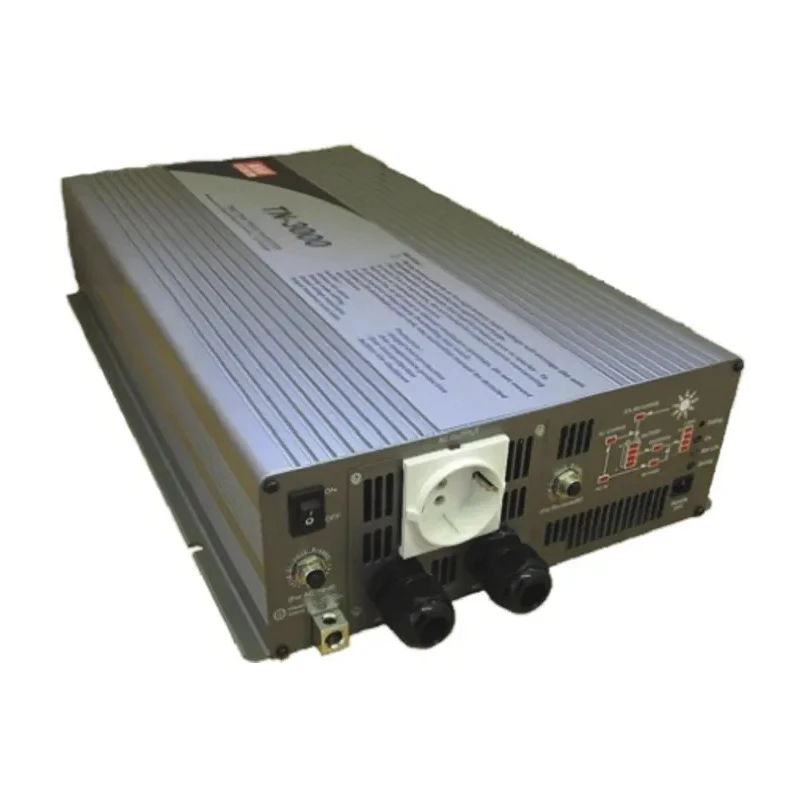

MEAN WELL 3000W True Sine Wave Panel Power Inverter 21V DC, 30V DC Input, 230V AC Output TN-3000-224B

MEAN WELL TN-3000-224B is a 3000W true sine wave panel power inverter designed for efficient conversion from DC to AC power. It accepts DC input voltages of 21V and 30V, delivering a stable 230V AC output suitable for home appliances, power tools, office equipment, portable devices, and vehicles.

This inverter includes both Schuko and 3-pin UK output sockets, supporting diverse connector needs. It features selectable UPS and energy-saving modes alongside standby saving capabilities, making it versatile for various operational environments.

Built for panel mounting, the inverter has a robust metal housing measuring 466.8mm in length, 283.5mm in width, and 100mm in depth, weighing 12.9 kg. Its thermal design supports operation within 0°C to 40°C to maintain optimal performance.

Protection features include reverse polarity protection, battery low alarm, battery low shutdown, overvoltage, overtemperature, output short circuit, input polarity reverse, overload, and AC circuit breaker safeguards. These ensure high reliability and safe continuous usage in solar power systems and other renewable energy applications.

With an efficiency rating of 91% and a mean time between failures (MTBF) of 90,000 hours, this product is engineered for long-term durability and energy-efficient operation. Certifications include FC, CE, and cULus, confirming adherence to international safety and quality standards.

Its origin is Taiwan, Province Of China, reflecting high manufacturing standards. Ideal industrial domains include renewable energy installations, residential backup power systems, commercial equipment powering, and mobile power solutions.

Operates with input voltages of 21V and 30V DC for flexible power sources. Provides 230V AC output with a capacity of 3000 watts for reliable energy conversion. Equipped with Schuko sockets and 3-pin UK output connectors for compatibility.

Features 91% efficiency ensuring low energy loss during operation. Incorporates reverse polarity protection and multiple safety shutdowns. Designed for panel mounting with robust metal enclosure, dimensions of 466.8mm length, 283.5mm width, and 100mm depth.

Supports a maximum operating temperature of 40°C and minimum of 0°C. Has a mean time between failures (MTBF) of 90,000 hours enhancing reliability. Weighs 12.9 kg suitable for stationary or portable power applications. Complies with FC, CE, and cULus standards for safety and performance.
