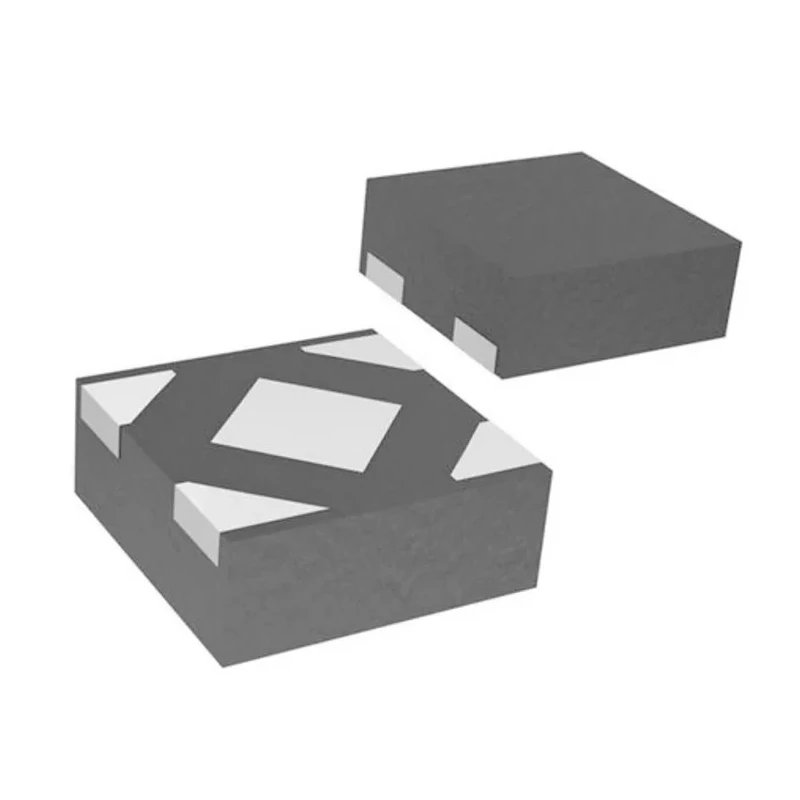

onsemi Low Dropout Linear Voltage Regulator 5.5V 4-Pin XDFN Package NCP163AMX330TBG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 380μm |
| Length | 1mm |
| Model | NCP163AMX330TBG |
| Width | 1mm |
| Mount Type | Surface |
| Series | NCP163 |
| Maximum Operating Temperature | 150°C |
| Package Type | XDFN |
| Polarity | Positive |
| Maximum Input Voltage | 5.5V |
| Quiescent Current | 20μA |
| Minimum Input Voltage | 2.2V |
| Pin Count | 4 |
Key Features
- This voltage regulator features a low quiescent current of 20μA for energy-efficient operation.
- Supports input voltage range between 2.2V and 5.5V for versatile applications.
- Compact dimensions of 1mm length, 1mm width, and 380μm height ensure minimal PCB footprint.
- Offers a maximum operating temperature of 150°C, suitable for demanding environments.
- Designed for surface mount (SMT) applications with positive polarity.
- Part of the NCP163 series, optimized for stable and low-noise output voltage regulation.
- Pin count of 4 allows straightforward integration and reliable connections.
- Absence of automotive standard compliance indicates suitability for general electronic components.
Product Description
onsemi NCP163AMX330TBG is a low dropout (LDO) linear voltage regulator designed for efficient power management in electronic circuits. It supports a maximum input voltage of 5.5V and a minimum input voltage of 2.2V, making it well-suited for multiple low voltage applications requiring stable and precise voltage regulation.
This device is packaged in a small 4-pin XDFN surface mount package with dimensions of 1mm by 1mm and a height of 380μm, enabling compact PCB layouts. The positive polarity and low quiescent current of 20μA contribute to reduced power consumption and high energy efficiency in battery-powered and portable devices.
The regulator operates reliably in temperatures up to 150°C, allowing use in various industrial and electronic environments. Being part of the NCP163 series, it ensures low noise and high power supply ripple rejection (PSRR) for sensitive analog and digital circuits.
Typical applications include consumer electronics, communication equipment, instrumentation, and embedded systems where precise voltage regulation is critical. Package contents include a single onsemi NCP163AMX330TBG device ready for SMT PCB assembly.
This voltage regulator features a low quiescent current of 20μA for energy-efficient operation. Supports input voltage range between 2.2V and 5.5V for versatile applications. Compact dimensions of 1mm length, 1mm width, and 380μm height ensure minimal PCB footprint.
Offers a maximum operating temperature of 150°C, suitable for demanding environments. Designed for surface mount (SMT) applications with positive polarity. Part of the NCP163 series, optimized for stable and low-noise output voltage regulation.
Pin count of 4 allows straightforward integration and reliable connections. Absence of automotive standard compliance indicates suitability for general electronic components. Explore more on Voltage Regulators and power management ICs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The NCP163AMX330TBG supports an input voltage range between 2.2V and 5.5V, making it suitable for various low voltage applications.
This model has compact dimensions of 1mm in length, 1mm in width, and a height of 380μm, which helps minimize PCB footprint.
The maximum operating temperature for the NCP163AMX330TBG is 150°C, allowing its use in demanding industrial environments.
It features a low quiescent current of 20μA, contributing to energy-efficient operation, especially in battery-powered devices.
This voltage regulator is packaged in a 4-pin XDFN surface mount package, which facilitates straightforward integration into PCB designs.
The NCP163AMX330TBG is designed with positive polarity, which is standard for many electronic applications.
It is part of the NCP163 series, which is optimized for stable and low-noise output voltage regulation.
Typical applications include consumer electronics, communication equipment, instrumentation, and embedded systems requiring precise voltage regulation.
The NCP163AMX330TBG features a pin count of 4, allowing for reliable connections in electronic circuits.
The absence of automotive standard compliance indicates that this model is suitable for general electronic components rather than automotive applications.
The low dropout feature allows for efficient voltage regulation even when the input voltage is close to the output voltage, enhancing performance in battery-operated devices.
This model is manufactured in India, as indicated by its country of origin.
