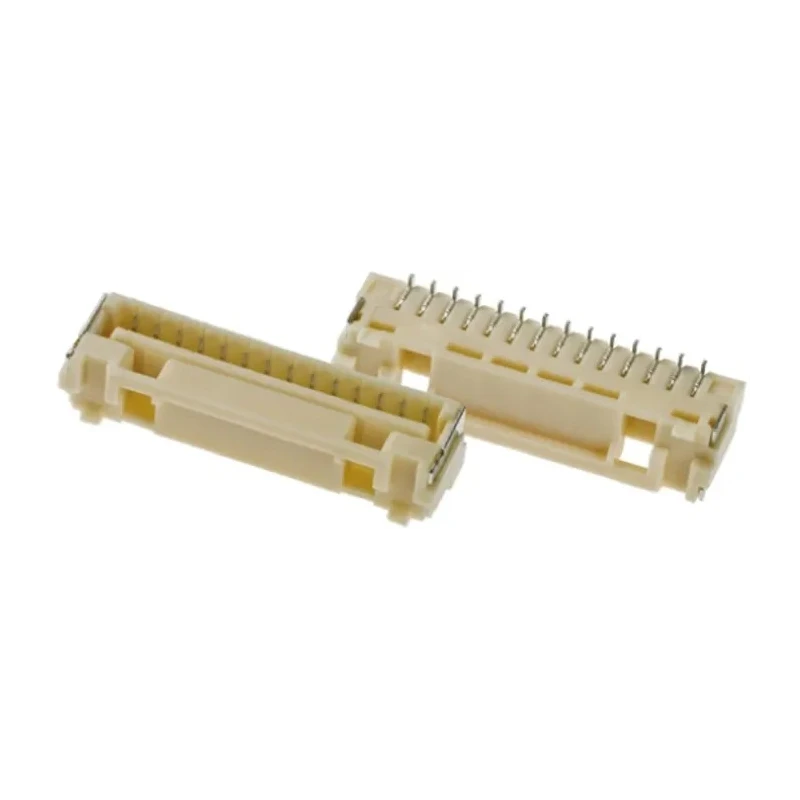

Molex CLIK-Mate Series Right Angle Surface PCB Socket 14-Contact 1 Row 1.25 mm Pitch 12A 50V 502386-1470

Molex 502386-1470 CLIK-Mate Series Right Angle Surface PCB Socket features 14 female contacts arranged in a single row with a 1.25 mm pitch. This wire-to-board signal connector provides a robust solder termination with a thermoplastic housing designed for surface mounting on PCBs. Rated for 12A current and 50V voltage, it is suitable for a wide operating temperature range from -40°C to 105°C, making it adaptable to demanding industrial environments.

The CLIK-Mate series offers a unique tuning-fork terminal mechanism that provides low insertion force and secure mating contact, enabling reliable and efficient electrical connections. The right angle orientation facilitates compact PCB designs, saving approximately 60% space compared to similar dual-lock 2.00 mm pitch versions. The product's robust positive lock ensures greater mating assurance, suitable for applications such as LCD TVs and other devices requiring higher pin counts.

The contacts are made from high-quality copper plated with tin to enhance conductivity and corrosion resistance. The thermoplastic housing material provides durability under mechanical and thermal stress. This socket is manufactured in Japan, ensuring adherence to rigorous quality standards without additional third-party certifications.

Suitable for industrial and commercial electronic assembly processes, especially in signal transmission and compact electronics manufacturing, this connector allows direct vacuum pick-and-place installation without the need for capton tape. The product is classified as new and is part of the CLIK-Mate series from Molex.

Provides a right angle surface mount PCB socket design for space-efficient PCB layouts. Features 14 contacts organized in a single row for secure connectivity. Operates at 12 Amps current with voltage rating of 50 Volts.

Terminated through soldering with thermoplastic housing ensuring durability. Supports operating temperature range from -40°C to 105°C for diverse applications. Employs copper female contacts plated with tin for reliable signal transmission.

Incorporates a locking mechanism for positive mating retention and low insertion force. Designed for applications such as LCD televisions requiring higher pin count connectors. Manufactured in Japan, ensuring high quality and performance consistency.
