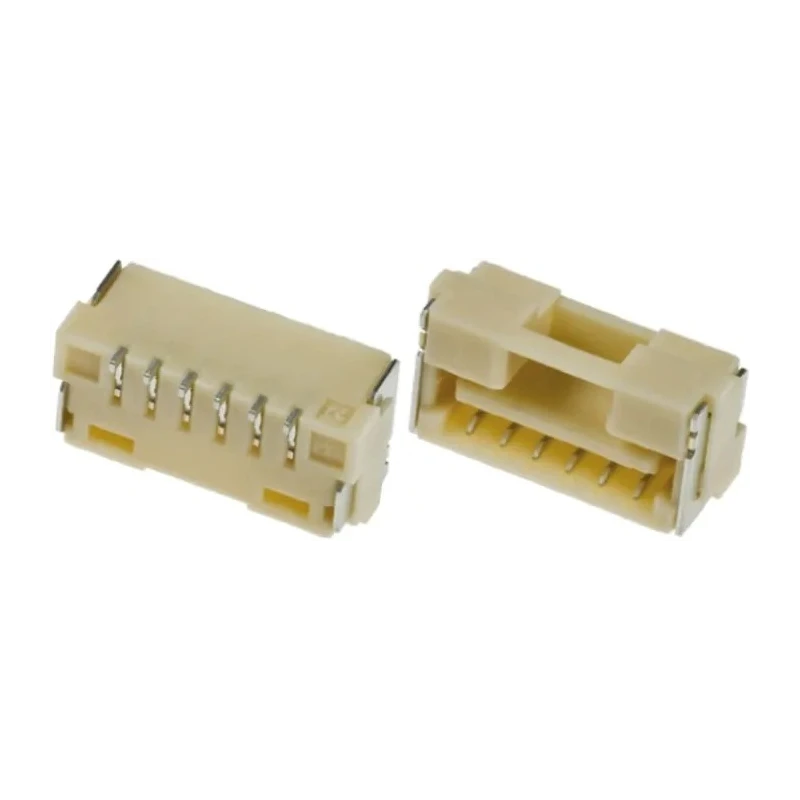

Molex CLIK-Mate Series Right Angle Surface PCB Socket, 6-Contact, 1 Row, 1.25 mm Pitch Solder 502386-0670

Molex 502386-0670 CLIK-Mate Series Right Angle Surface PCB Socket is a high-quality electrical connector designed for wire-to-board applications. It features 6 contacts arranged in a single row with a compact 1.25 mm pitch, ensuring space-saving installation on printed circuit boards. The right angle orientation supports optimized PCB layout and efficient use of board space.

Constructed with a thermoplastic housing and copper contacts plated with tin, this PCB socket guarantees strong durability, excellent conductivity, and resistance to wear and corrosion. The terminal design incorporates a unique tuning-fork concept that provides a low insertion force while maintaining secure mating contact.

This product supports a current rating of 12A and voltage rating up to 50V, making it suitable for medium power and signal applications including LCD televisions that require high pin count connectors within limited space. Operating temperature ranges from -40°C to 105°C, enabling reliable performance in diverse industrial and commercial environments.

The CLIK-Mate series features a lock mechanism for simplified installation and enhanced mating retention, reducing the risk of accidental disconnections. Surface mount technology (SMT) mounting type enables automated soldering processes and efficient PCB assembly without the need for additional tapes or fixtures.

Additional features include a robust positive lock that ensures lasting connection integrity and advanced terminal polarization to prevent incorrect insertion, providing reliability in critical electronic assemblies. This socket is part of the wire-to-board connector system platform, optimized for signal transmission and mechanical stability.

Right angle PCB socket with 6 contacts in 1 row and 1.25 mm pitch. Thermoplastic housing and copper contacts with tin plating for durability and conductivity. Current rating of 12A and voltage rating of 50V. Operating temperature from -40°C to 105°C for versatile applications.

CLIK-Mate series lock design offers ease of installation and secure mating. Surface mount type suitable for automated PCB assembly. Unique tuning-fork terminal design reduces insertion force while ensuring mating retention.

Robust positive lock and terminal polarization to prevent mating errors. Ideal for high pin count connectors in compact electronic devices such as LCD TVs.

This product is widely used in electronic manufacturing, industrial, and laboratory applications requiring reliable PCB connections and compact connector solutions. Browse the Electronics Components or PCB Socket categories on EnvMart for more products from Molex and other leading connector brands.
